Bobcat
/
E55W
/

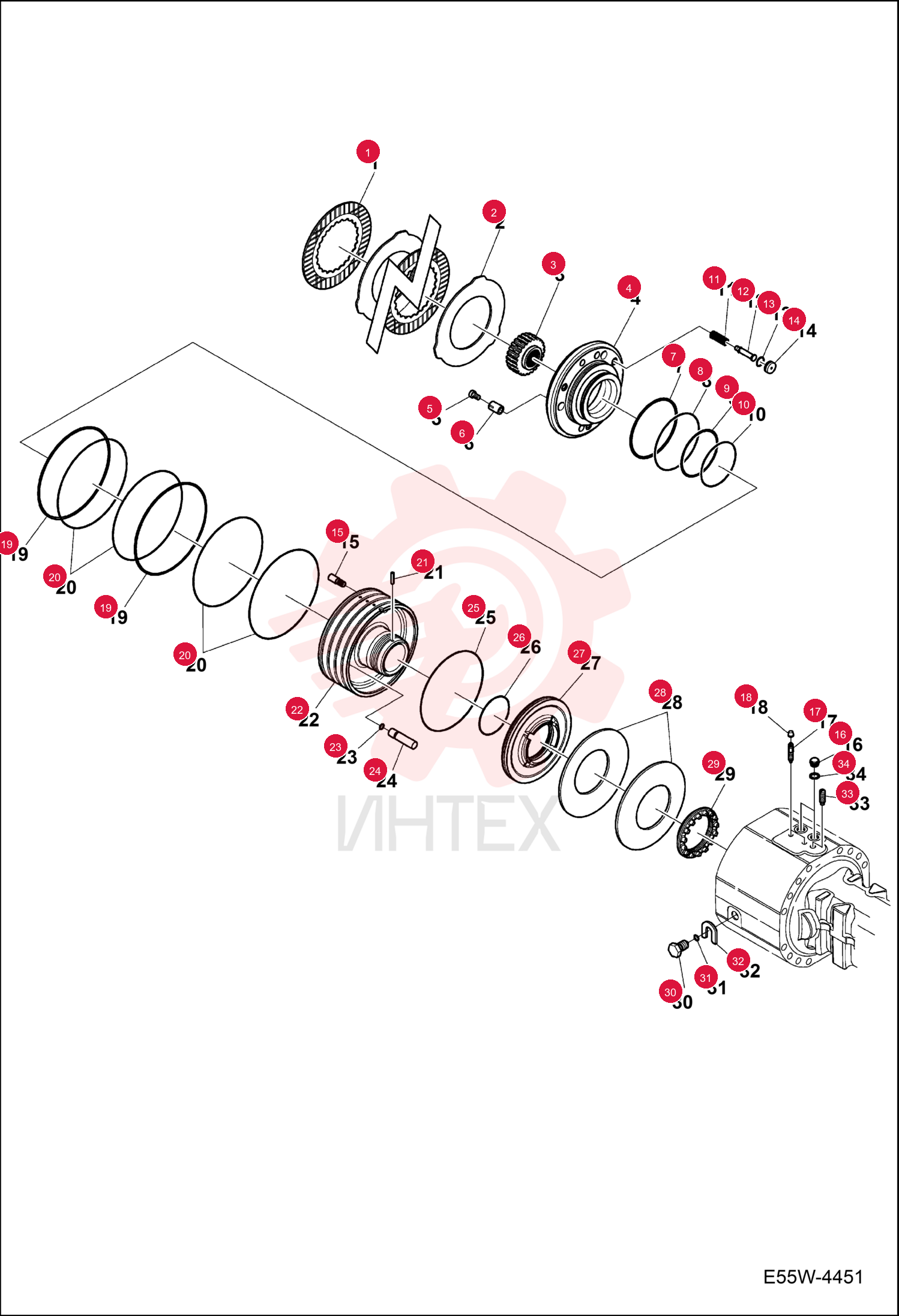

BRAKE DISC 6912140 (2)

BRAKE DISC 6912140 (2)

BRAKE DISC 6912140 (2)

1 6912140

  • 6912140 - BRAKE DISC

2 6912675

  • 6912675 - BRAKE DISC

3 6912142

  • 6912142 - REDUCER TUBE

4 6912145

  • 6912145 - PISTON

5 6921027

  • 6921027 - ADJUSTING BOLT

6 6912864

  • 6912864 - SPRING

7 7283389

  • 7283389 - RING
  • BACK-UP

8 7283390

  • 7283390 - O-RING

9 6912618

  • 6912618 - BACK -UP RING

10 6912710

  • 6912710 - O'RING

11 6912147

  • 6912147 - SPRING

12 6912156

  • 6912156 - SCREW

13 6912719

  • 6912719 - O'RING

14 6912135

  • 6912135 - PLUG

15 6912155

  • 6912155 - SCREW

16 7024446

  • 7024446 - PLUG

17 7004101

  • 7004101 - BOLT BLEEDING

18 7004282

  • 7004282 - PLUG

19 6912619

  • 6912619 - BACK -UP RING

20 6921516

  • 6921516 - O RING

21 6912698

  • 6912698 - PIN
  • Was 7283011

22 7011139

  • 7011139 - PISTON

23 6912713

  • 6912713 - O'RING

24 7283428

  • 7283428 - PIN

25 6912711

  • 6912711 - O'RING

26 6912718

  • 6912718 - O'RING

27 6912726

  • 6912726 - PISTON

28 7283429

  • 7283429 - SPRING

29 6912687

  • 6912687 - NUT

30 6912772

  • 6912772 - SCREW

31 6912716

  • 6912716 - O'RING

32 6912693

  • 6912693 - SPACER

33 6912776

  • 6912776 - SCREW

34 7283430

  • 7283430 - O-RING
