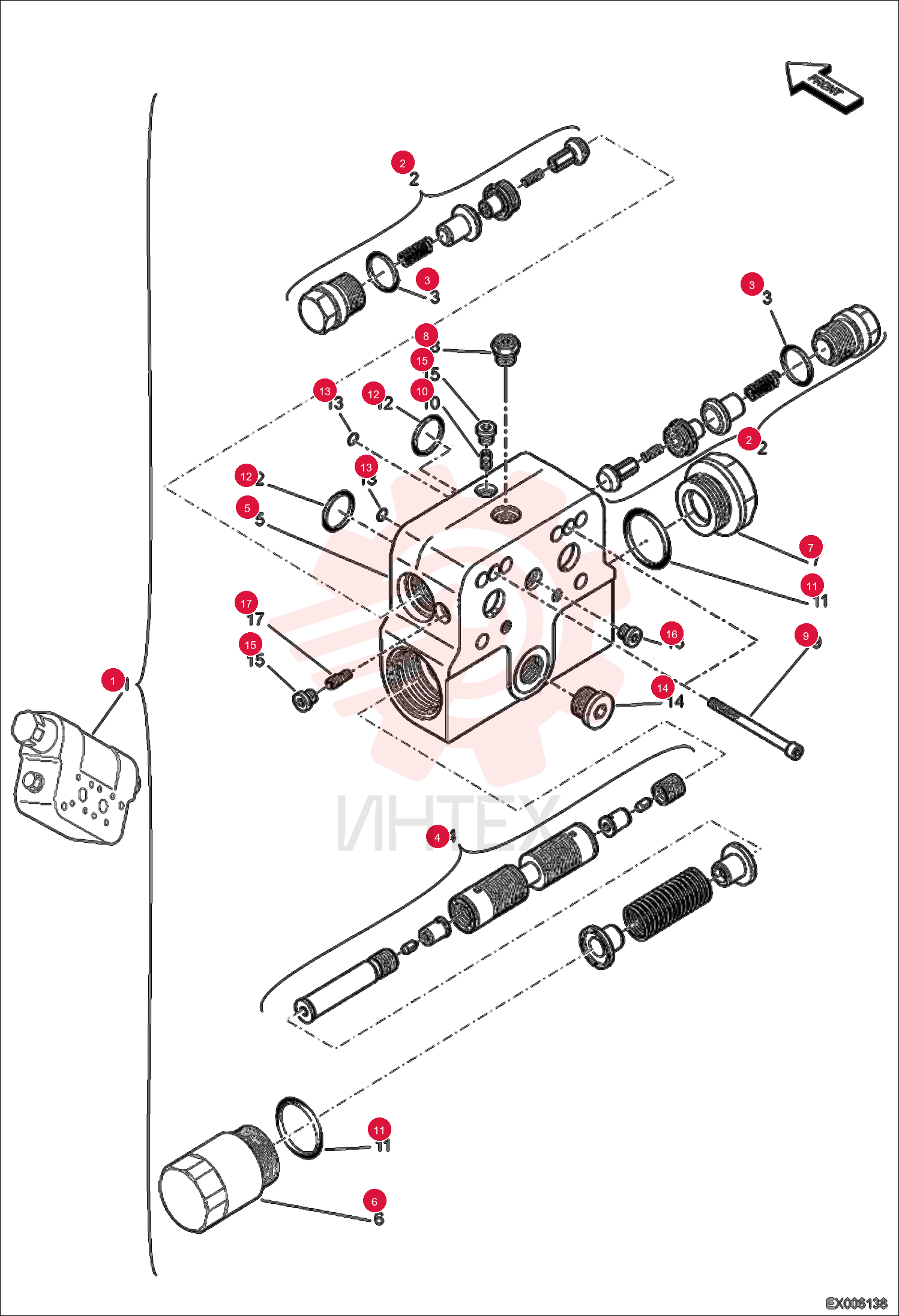

VALVE COUNTER BALANCE 7004345

VALVE COUNTER BALANCE 7004345

VALVE COUNTER BALANCE 7004345

1 7004345

  • 7004345 - VALVE COUNTER BALANCE
  • W/Ref. 2-17

2 7004400

  • 7004400 - VALVE POPPET
  • W/Ref. 3

3 7004268

  • 7004268 - O-RING

4 7004344

  • 7004344 - VALVE PLUNGER

5 7004353

  • 7004353 - HOUSING

6 7004127

  • 7004127 - SCREW LOCKING

7 7004128

  • 7004128 - SCREW LOCKING

8 7004132

  • 7004132 - SCREW LOCKING

9 7004138

  • 7004138 - SCREW SOCKET HEAD

10 7004310

  • 7004310 - PLUG

11 7004266

  • 7004266 - O-RING

12 7004263

  • 7004263 - O-RING

13 7004261

  • 7004261 - O-RING

14 7004107

  • 7004107 - SCREW LOCKING

15 7004129

  • 7004129 - SCREW LOCKING

16 7004166

  • 7004166 - PIN DOUBLE BREAK-OFF

17 7004401

  • 7004401 - VALVE SHUTTLE
