Bobcat
/
E55W
/

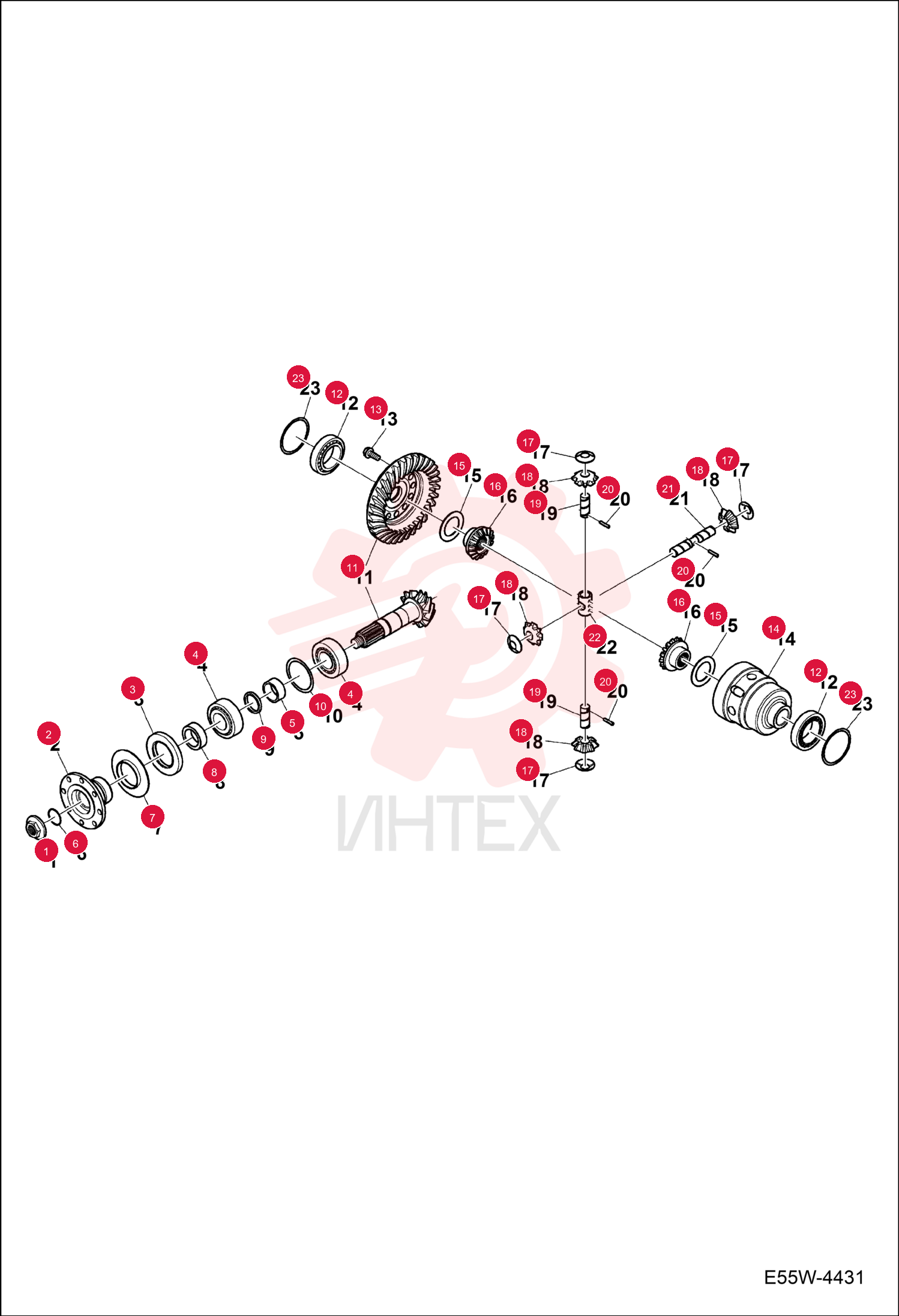

NUT 7004158 (2)

NUT 7004158 (2)

NUT 7004158 (2)

1 7004158

  • 7004158 - NUT

2 7004306

  • 7004306 - FLANGE

3 7282995

  • 7282995 - SEAL AXLE

4 7003990

  • 7003990 - BEARING

5 7282996

  • 7282996 - SPACER

6 7004243

  • 7004243 - O-RING

7 7004382

  • 7004382 - PLATE COVER

8 7004044

  • 7004044 - SPACER

9 6912617

  • 6912617 - BUSH
  • Was 7282998

10 6912616

  • 6912616 - BUSH
  • Was 7282997

11 6912616

  • 6912616 - BUSH
  • Was 7282997

12 7004030

  • 7004030 - SHIM

13 7004032

  • 7004032 - SHIM

14 7282999

  • 7282999 - GEAR
  • BEVEL

15 7003995

  • 7003995 - BEARING TAPER ROLLER

16 7283000

  • 7283000 - BOLT

17 7283005

  • 7283005 - CARRIER
  • DIFF

18 7283006

  • 7283006 - WASHER

19 7283007

  • 7283007 - GEAR
  • DIFF SIDE

20 7283009

  • 7283009 - WASHER

21 7283008

  • 7283008 - GEAR
  • DIFF

22 7283010

  • 7283010 - PIN

23 6912698

  • 6912698 - PIN
  • Was 7283011

24 7283012

  • 7283012 - PIN

25 7283013

  • 7283013 - RETAINER

26 7283004

  • 7283004 - SHIM

27 7283003

  • 7283003 - SHIM

28 7283002

  • 7283002 - SHIM

29 7283001

  • 7283001 - SHIM
