Bobcat
/
E55W
/

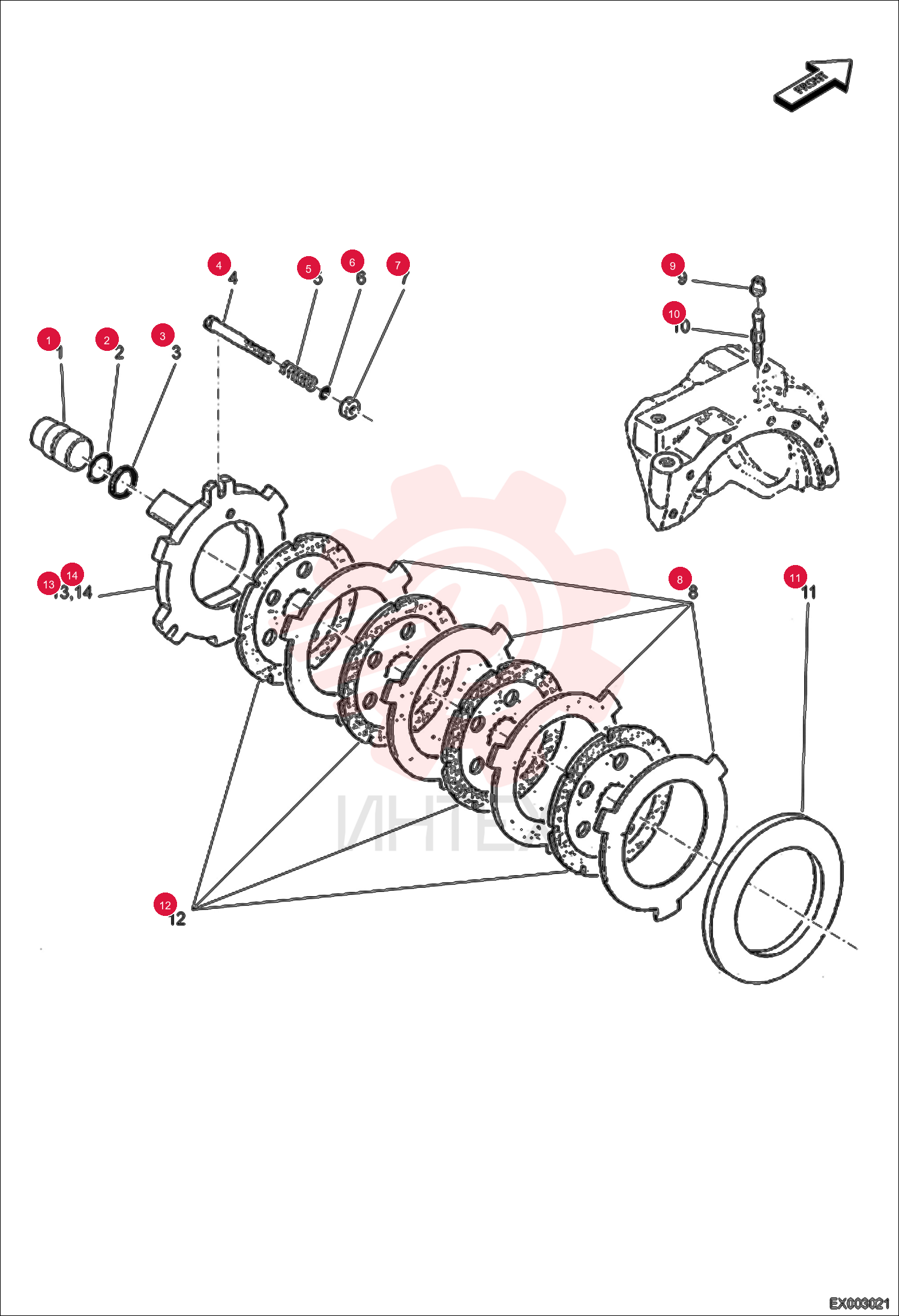

PISTON 7004374

PISTON 7004374

PISTON 7004374

1 7004374

  • 7004374 - PISTON

2 7004256

  • 7004256 - O-RING

3 7004070

  • 7004070 - RING BACK-UP

4 7004120

  • 7004120 - BOLT ADJUSTING

5 7004201

  • 7004201 - SPRING

6 7004249

  • 7004249 - O-RING

7 7004152

  • 7004152 - NUT

8 7004324

  • 7004324 - DISC INTERMEDIATE BRAKE

9 7004282

  • 7004282 - PLUG

10 7004101

  • 7004101 - BOLT BLEEDING

11 7024758

  • 7024758 - SPACER
  • Was 7004046

12 7004325

  • 7004325 - DISC BRAKE

13 7004326

  • 7004326 - DISC BRAKE LEFT

14 7004322

  • 7004322 - DISC BRAKE RIGHT
