Bobcat
/
E55W
/

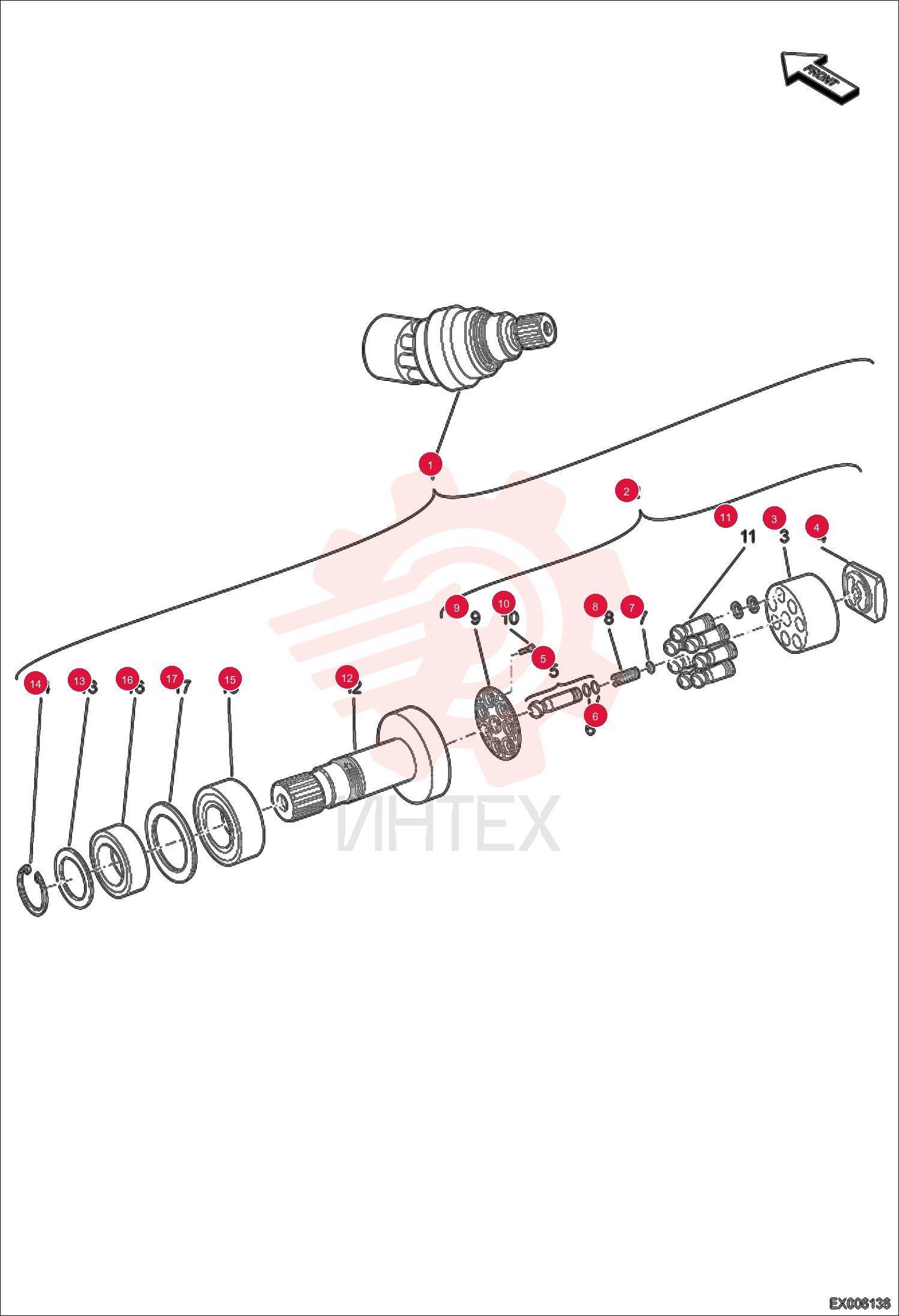

ROTATOR ASSY 7004376

ROTATOR ASSY 7004376

ROTATOR ASSY 7004376

1 7004376

  • 7004376 - ROTATOR ASSY
  • W/Ref. 2-17

2 7004377

  • 7004377 - CYLINDER BLOCK ASSY
  • W/Ref. 3-11

3 7004405

  • 7004405 - CYLINDER

4 7004390

  • 7004390 - LENS CONTROL

5 7004178

  • 7004178 - PIN CENTER
  • W/Ref. 6

6 7004063

  • 7004063 - RING STEEL SEAL

7 7004053

  • 7004053 - SHIM ADJUSTMENT

8 7004054

  • 7004054 - SHIM ADJUSTMENT

9 7004055

  • 7004055 - SHIM ADJUSTMENT

10 7004056

  • 7004056 - SHIM ADJUSTMENT

11 7004057

  • 7004057 - SHIM ADJUSTMENT

12 7004058

  • 7004058 - SHIM ADJUSTMENT

13 7004192

  • 7004192 - SPRING PRESSURE

14 7023673

  • 7023673 - PLATE
  • RETAINER

15 7004108

  • 7004108 - BOLT

16 7023674

  • 7023674 - BOLT

17 7004076

  • 7004076 - PISTON WITH PISTON RINGS

18 7004367

  • 7004367 - SHAFT DRIVE

19 7004232

  • 7004232 - PLATE BACK-UP

20 7004233

  • 7004233 - PLATE BACK-UP

21 7004234

  • 7004234 - PLATE BACK-UP

22 7004235

  • 7004235 - PLATE BACK-UP

23 7004236

  • 7004236 - PLATE BACK-UP

24 7004237

  • 7004237 - PLATE BACK-UP

25 7004238

  • 7004238 - PLATE BACK-UP

26 7004270

  • 7004270 - PLATE BACK-UP

27 7004061

  • 7004061 - RING RETAINING

28 7003997

  • 7003997 - BEARING TAPERED ROLLER

29 7003996

  • 7003996 - BEARING TAPERED ROLLER

30 7004052

  • 7004052 - SHIM
