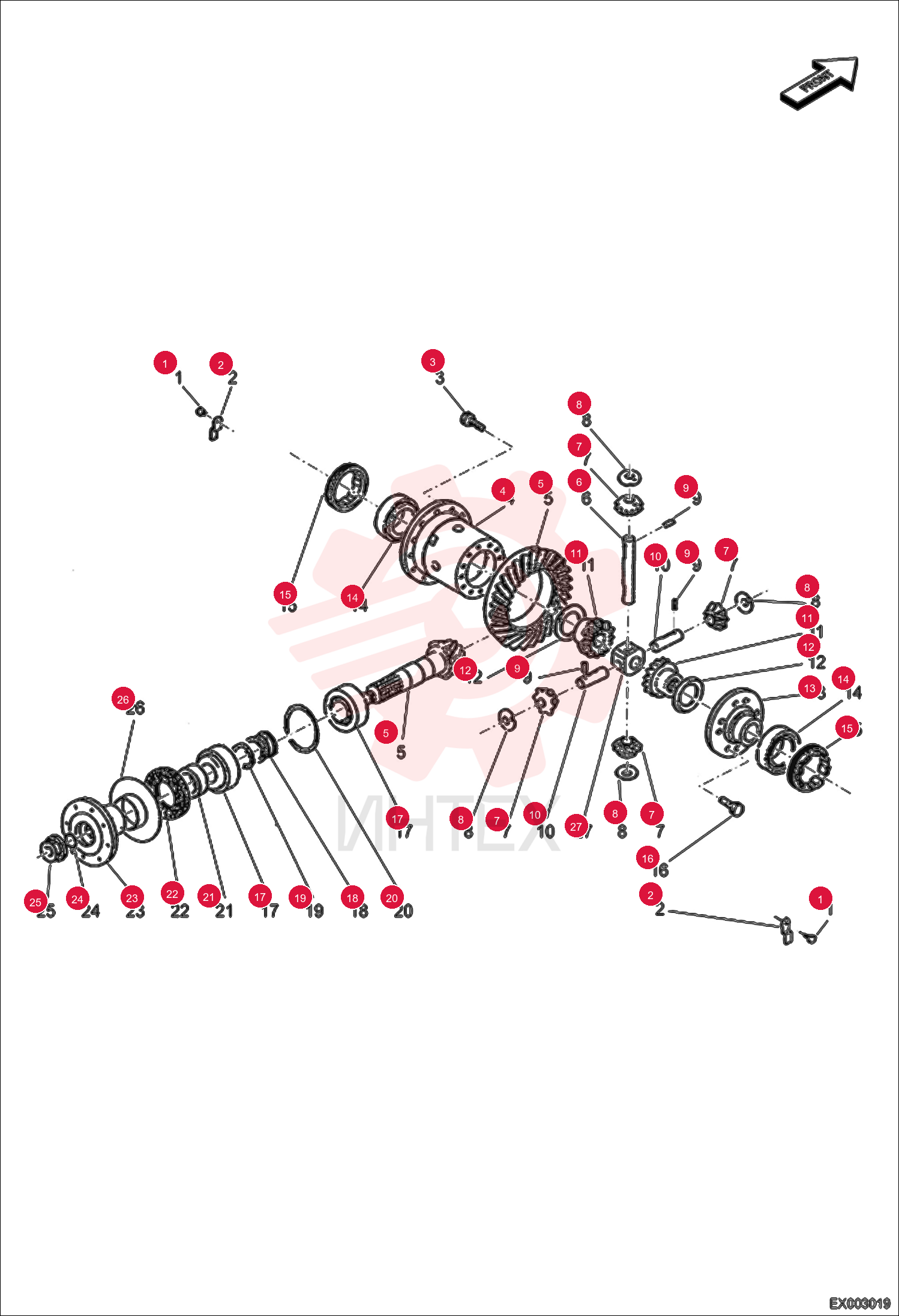

BOLT HEX 7004126 (1)

BOLT HEX 7004126 (1)

BOLT HEX 7004126 (1)

1 7004126

  • 7004126 - BOLT HEX

2 7004388

  • 7004388 - PLATE LOCKING

3 7004119

  • 7004119 - BOLT

4 7007308

  • 7007308 - CARRIER DIFFERENTIAL

5 7007310

  • 7007310 - GEAR BEVEL SET

6 7004170

  • 7004170 - PIN

7 7003979

  • 7003979 - PINION DIFFERENTIAL

8 7004050

  • 7004050 - WASHER FRICTION

9 7004175

  • 7004175 - PIN DOWEL

10 7004171

  • 7004171 - PIN

11 7004359

  • 7004359 - GEAR DIFFERENTIAL SIDE

12 7004049

  • 7004049 - WASHER FRICTION

13 7004433

  • 7004433 - COVER

14 7003995

  • 7003995 - BEARING TAPER ROLLER

15 7007309

  • 7007309 - NUT RING

16 7007305

  • 7007305 - BOLT HEX

17 7003990

  • 7003990 - BEARING

18 7004043

  • 7004043 - SPACER

19 7004035

  • 7004035 - SHIM

20 7004033

  • 7004033 - SHIM

21 7004029

  • 7004029 - SHIM

22 7004028

  • 7004028 - SHIM

23 7004032

  • 7004032 - SHIM

24 7004031

  • 7004031 - SHIM

25 7004030

  • 7004030 - SHIM

26 7004044

  • 7004044 - SPACER

27 7004228

  • 7004228 - SEAL

28 7004306

  • 7004306 - FLANGE

29 7004243

  • 7004243 - O-RING

30 7004158

  • 7004158 - NUT

31 7004382

  • 7004382 - PLATE COVER

32 7004064

  • 7004064 - RETAINER SHAFT
