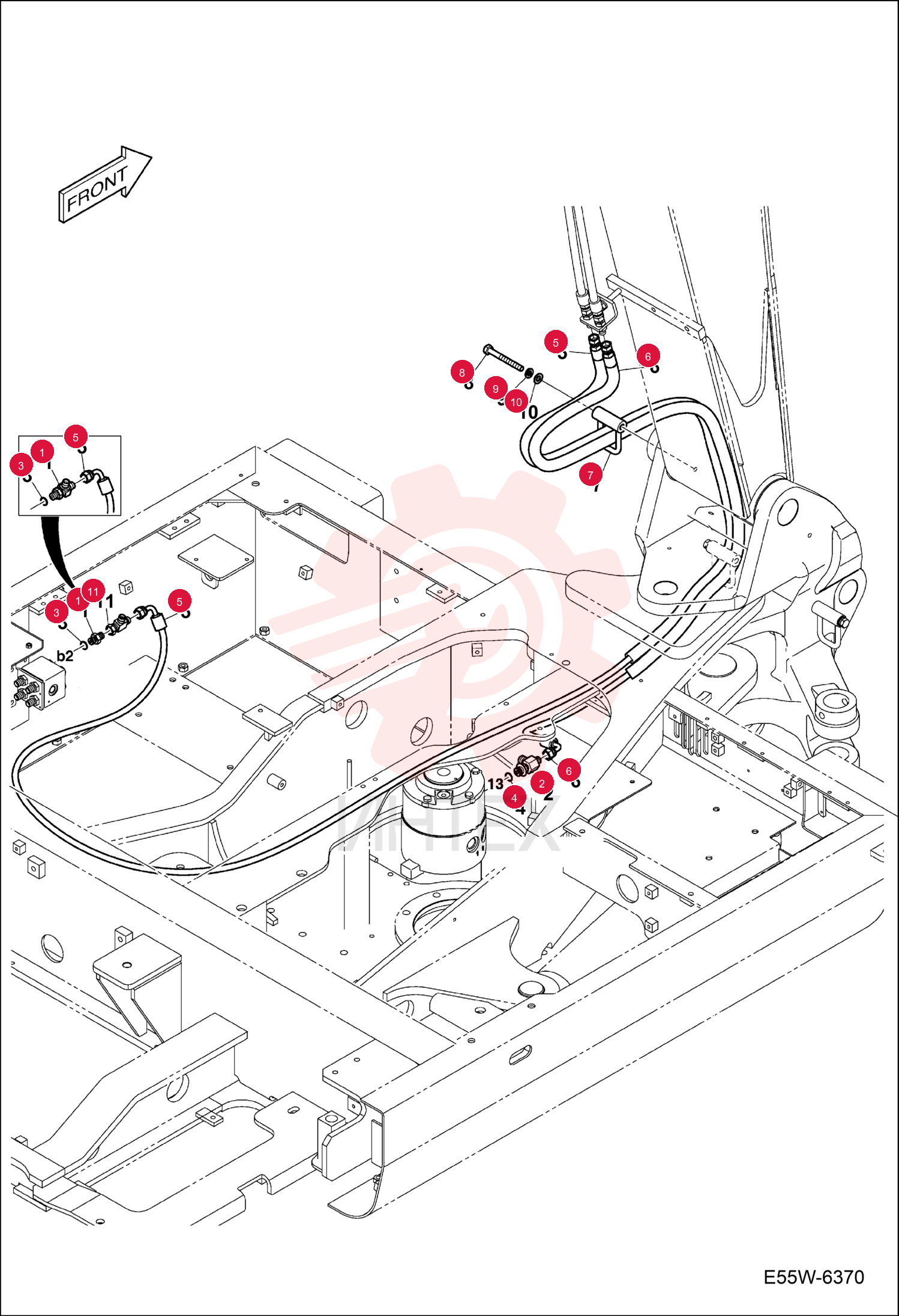

ADAPTER 7004683 (4)

ADAPTER 7004683 (4)

ADAPTER 7004683 (4)

1 7004683

  • 7004683 - ADAPTER

2 7004738

  • 7004738 - TEE

3 7004739

  • 7004739 - TEE

4 7283267

  • 7283267 - O-RING
  • Was 7007906

5 7284551

  • 7284551 - O-RING
  • Was 7007909

6 7281630

  • 7281630 - HOSE
  • HYD

7 7281629

  • 7281629 - HOSE
  • HYD

8 7281632

  • 7281632 - HOSE
  • HYD

9 7281631

  • 7281631 - HOSE
  • HYD

10 7006500

  • 7006500 - CLAMP

11 7007679

  • 7007679 - BOLT

12 7007835

  • 7007835 - WASHER SPRING

13 7007818

  • 7007818 - WASHER PLAIN M10

14 7003960

  • 7003960 - TEE UNION
