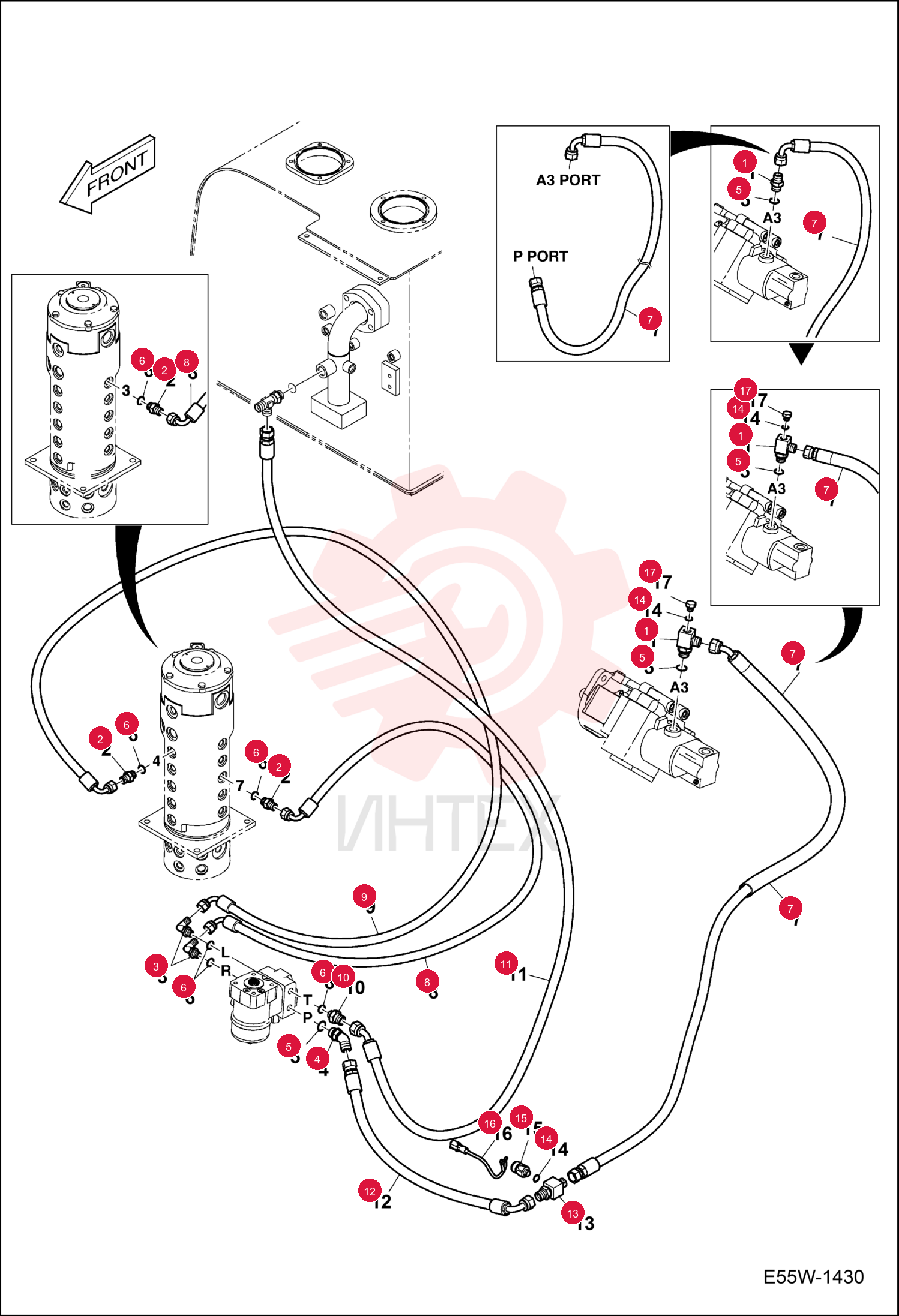

ADAPTER 7004699 (3)

ADAPTER 7004699 (3)

ADAPTER 7004699 (3)

1 7004699

  • 7004699 - ADAPTER

2 7005564

  • 7005564 - TEE

3 7004700

  • 7004700 - ADAPTER

4 7004716

  • 7004716 - ELBOW

5 7004757

  • 7004757 - ELBOW

6 7284557

  • 7284557 - O-RING
  • Was 7007911

7 7284551

  • 7284551 - O-RING
  • Was 7007909

8 7277319

  • 7277319 - HOSE
  • HYD

9 7277318

  • 7277318 - HOSE
  • HYD

10 7018665

  • 7018665 - HOSE
  • HYD
  • Was 7019009

11 7005433

  • 7005433 - HOSE

12 7005243

  • 7005243 - HOSE

13 7005260

  • 7005260 - HOSE

14 7004680

  • 7004680 - ADAPTER

15 7005286

  • 7005286 - HOSE

16 7018662

  • 7018662 - HOSE
  • HYD

17 7018663

  • 7018663 - FITTING
  • TEE

18 7283267

  • 7283267 - O-RING
  • Was 7007906

19 7283267

  • 7283267 - O-RING
  • Was 7007906

20 7020961

  • 7020961 - SENSOR
  • PRESS
  • Was 7018664

21 7005012

  • 7005012 - HARNESS JOINT

22 7004732

  • 7004732 - PLUG
