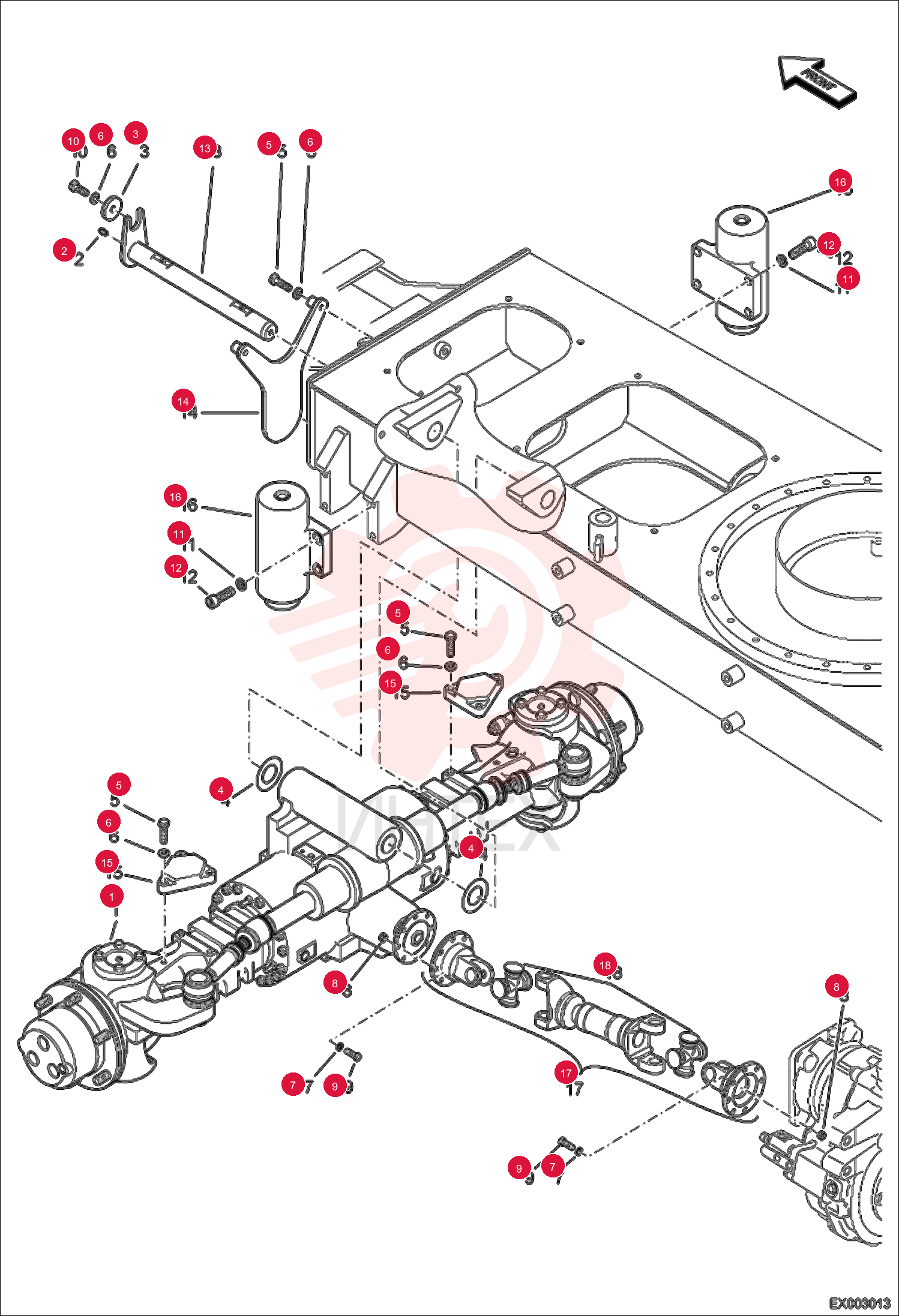

AXLE FRONT 7004840 (2)

AXLE FRONT 7004840 (2)

AXLE FRONT 7004840 (2)

1 7004840

  • 7004840 - AXLE FRONT

2 6694227

  • 6694227 - FITTING
  • GREASE
  • Was 7010246

3 7005142

  • 7005142 - WASHER

4 7004486

  • 7004486 - SHIM

5 7007683

  • 7007683 - BOLT

6 7007836

  • 7007836 - WASHER SPRING M12

7 7007844

  • 7007844 - WASHER

8 7004560

  • 7004560 - NUT

9 7005649

  • 7005649 - BOLT

10 7007641

  • 7007641 - BOLT

11 7007847

  • 7007847 - WASHER

12 7007774

  • 7007774 - BOLT

13 7022883

  • 7022883 - PIN

14 7005703

  • 7005703 - COVER

15 7005715

  • 7005715 - PLATE STABILIZER

16 7330070

  • 7330070 - CYLINDER STABILIZER

17 7005688

  • 7005688 - CYLINDER STABILIZER

18 7005831

  • 7005831 - SHAFT PROPELLER FRONT
  • W/Ref. 18

19 7007251

  • 7007251 - YOKE UNIVERSAL JOINT
