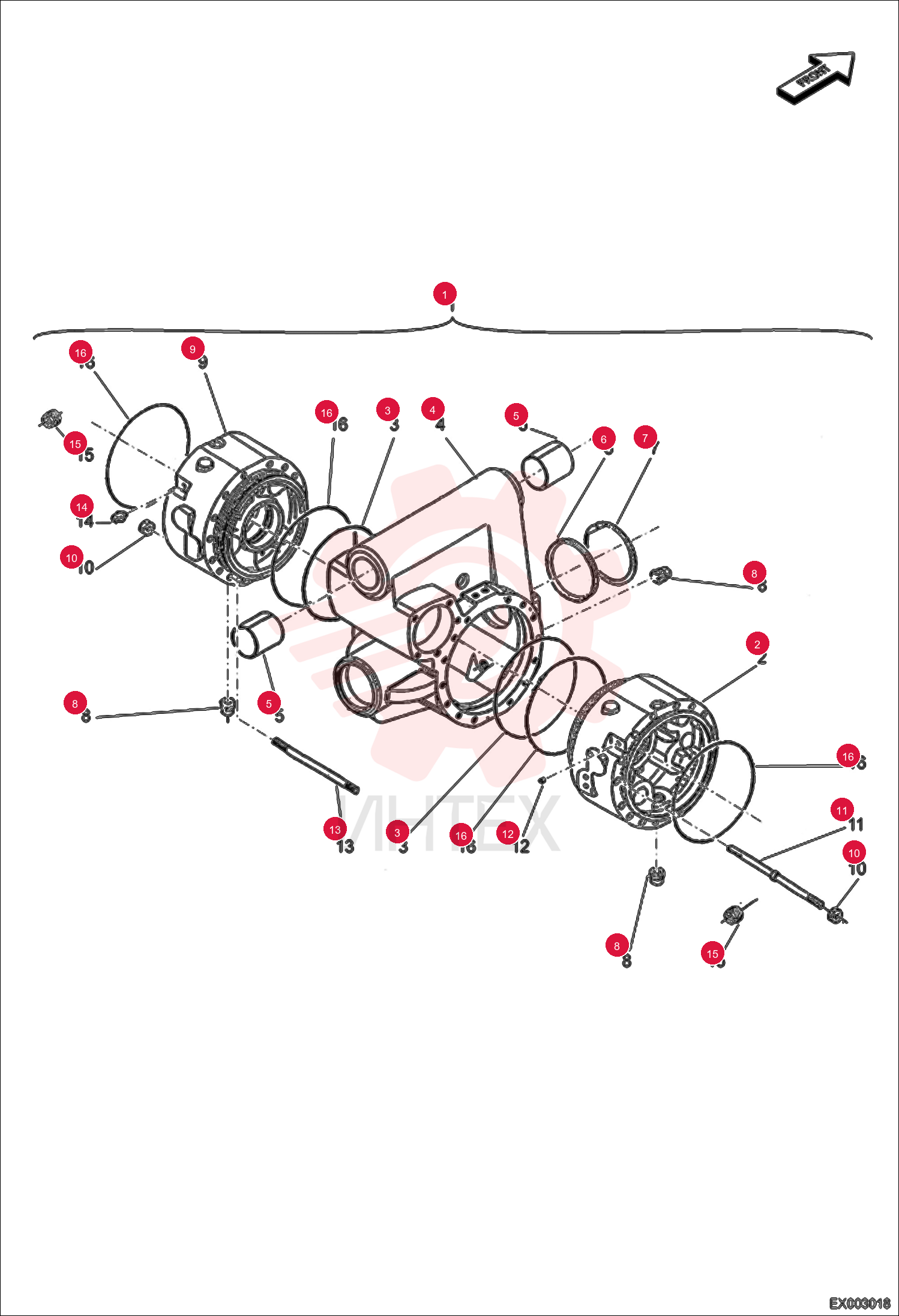

AXLE FRONT 7004840 (1)

AXLE FRONT 7004840 (1)

AXLE FRONT 7004840 (1)

1 7004840

  • 7004840 - AXLE FRONT
  • W/Ref. 2-16

2 7004430

  • 7004430 - COVER INTERMEDIATE

3 7004255

  • 7004255 - O-RING

4 7004352

  • 7004352 - HOUSING

5 7004002

  • 7004002 - BUSHING THRUST

6 7004288

  • 7004288 - PLUG

7 7JM90

  • 7JM90 - SNAPRING
  • Was 7004184

8 7004301

  • 7004301 - PLUG MAGNET

9 7004428

  • 7004428 - COVER INTERMEDIATE

10 7004151

  • 7004151 - NUT

11 7004338

  • 7004338 - STUD

12 7267732

  • 7267732 - PLUG
  • Was 7004280

13 7004339

  • 7004339 - STUD

14 7004302

  • 7004302 - VENT

15 7004281

  • 7004281 - PLUG

16 7004254

  • 7004254 - O-RING
