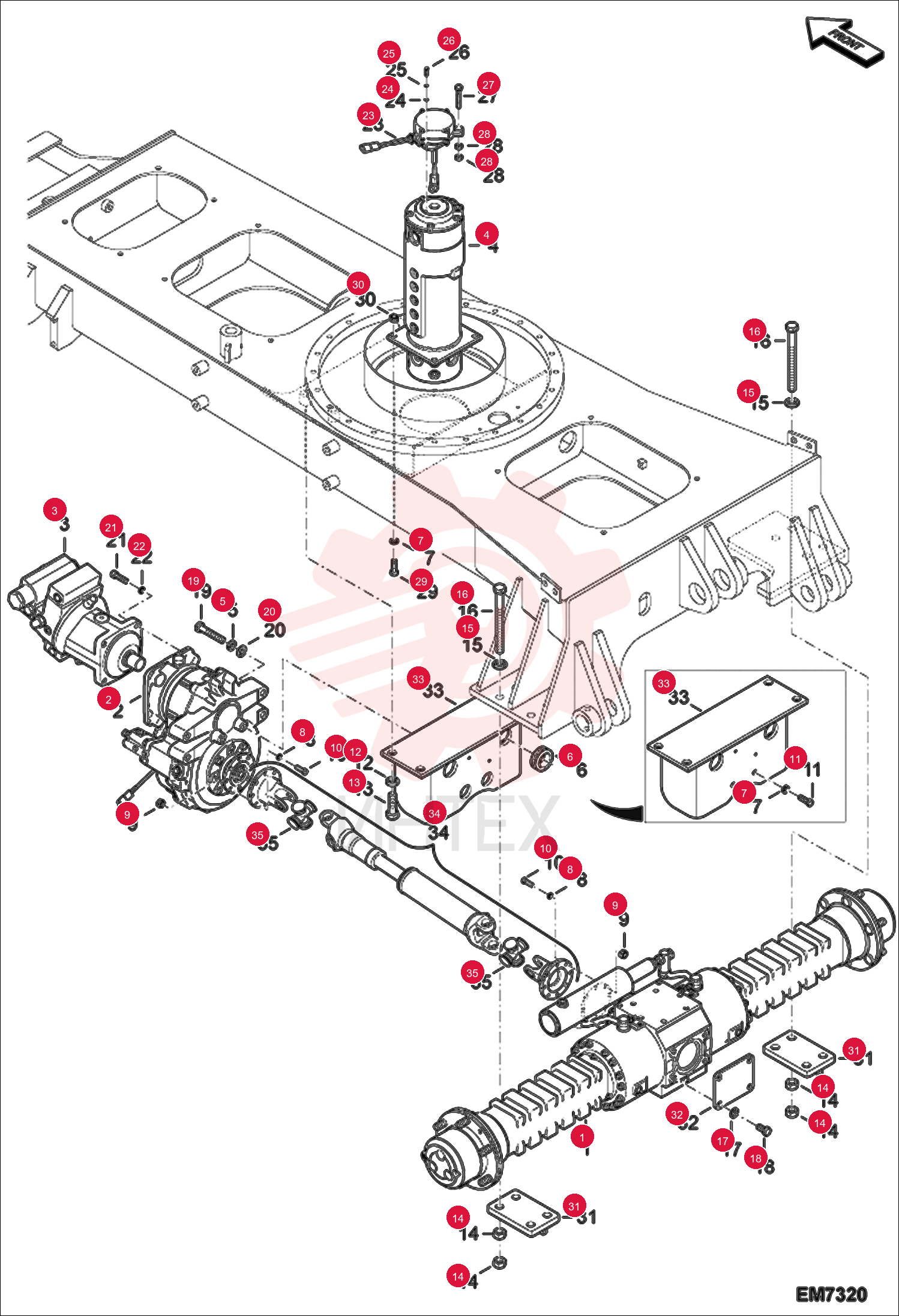

AXLE REAR 7004839 (2)

AXLE REAR 7004839 (2)

AXLE REAR 7004839 (2)

1 7004839

  • 7004839 - AXLE REAR

2 7005736

  • 7005736 - TRANSMISSION

3 7023671

  • 7023671 - MOTOR
  • DRIVE

4 7023672

  • 7023672 - JOINT
  • SWIVEL

5 7030045

  • 7030045 - WASHER
  • SPRING

6 7005593

  • 7005593 - BUSHING

7 7007836

  • 7007836 - WASHER SPRING M12

8 7007836

  • 7007836 - WASHER SPRING M12

9 7007844

  • 7007844 - WASHER

10 7004560

  • 7004560 - NUT

11 7005649

  • 7005649 - BOLT

12 7007641

  • 7007641 - BOLT

13 7007840

  • 7007840 - WASHER

14 7007715

  • 7007715 - BOLT

15 7008299

  • 7008299 - NUT
  • M20X2.5

16 7004524

  • 7004524 - WASHER HARDEN

17 7003869

  • 7003869 - BOLT

18 7007821

  • 7007821 - WASHER

19 7007644

  • 7007644 - BOLT

20 7007706

  • 7007706 - BOLT

21 7004507

  • 7004507 - WASHER PLAIN

22 7007763

  • 7007763 - BOLT

23 7007845

  • 7007845 - WASHER SPRING

24 7005741

  • 7005741 - RING SLIP

25 7007810

  • 7007810 - WASHER

26 7007827

  • 7007827 - WASHER SPRING

27 7007601

  • 7007601 - BOLT

28 7007755

  • 7007755 - BOLT SOCKET

29 7007634

  • 7007634 - BOLT

30 7007798

  • 7007798 - NUT M10X1.5

31 7007682

  • 7007682 - BOLT

32 7004567

  • 7004567 - NUT LOCK

33 7005038

  • 7005038 - PLATE

34 7005702

  • 7005702 - COVER

35 7012757

  • 7012757 - BRACKET

36 7005832

  • 7005832 - SHAFT PROPELLER REAR
  • W/Ref. 35

37 7007251

  • 7007251 - YOKE UNIVERSAL JOINT
