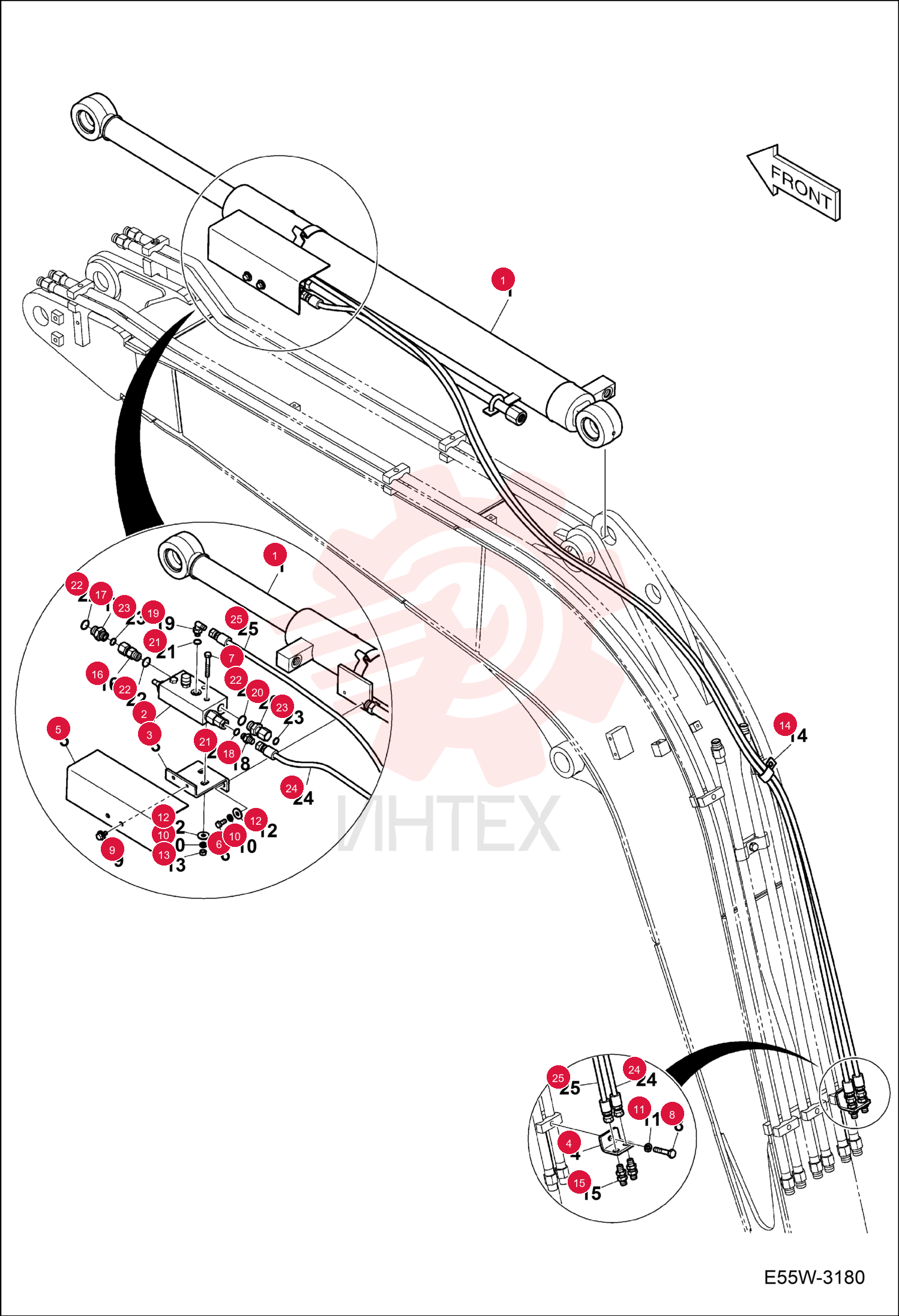

CYLINDER, ARM 7281298

CYLINDER, ARM 7281298

CYLINDER, ARM 7281298

1 7281298

  • 7281298 - CYLINDER
  • ARM
  • Ref. 2-25

2 7275796

  • 7275796 - VALVE
  • LOCK

3 7029680

  • 7029680 - BRACKET

4 7008213

  • 7008213 - BRACKET

5 7029721

  • 7029721 - COVER

6 7007617

  • 7007617 - BOLT

7 7007661

  • 7007661 - BOLT

8 7007673

  • 7007673 - BOLT

9 7005129

  • 7005129 - BOLT SET

10 7007834

  • 7007834 - WASHER SPRING

11 7276756

  • 7276756 - WASHER
  • Was 7007835

12 7004470

  • 7004470 - WASHER PLAIN

13 7007796

  • 7007796 - NUT

14 7277107

  • 7277107 - CLIP

15 7005573

  • 7005573 - CLIP

16 7331994

  • 7331994 - CLAMP HOSE

17 7003949

  • 7003949 - ADAPTER

18 7005551

  • 7005551 - ADAPTER

19 7004773

  • 7004773 - ADAPTER

20 7281299

  • 7281299 - ADAPTER

21 7004683

  • 7004683 - ADAPTER

22 7004713

  • 7004713 - ELBOW

23 7281300

  • 7281300 - ADAPTER

24 7283267

  • 7283267 - O-RING
  • Was 7007906

25 7284557

  • 7284557 - O-RING
  • Was 7007911

26 7007959

  • 7007959 - O-RING

27 7281301

  • 7281301 - HOSE
  • HYD

28 7281302

  • 7281302 - HOSE
  • HYD
