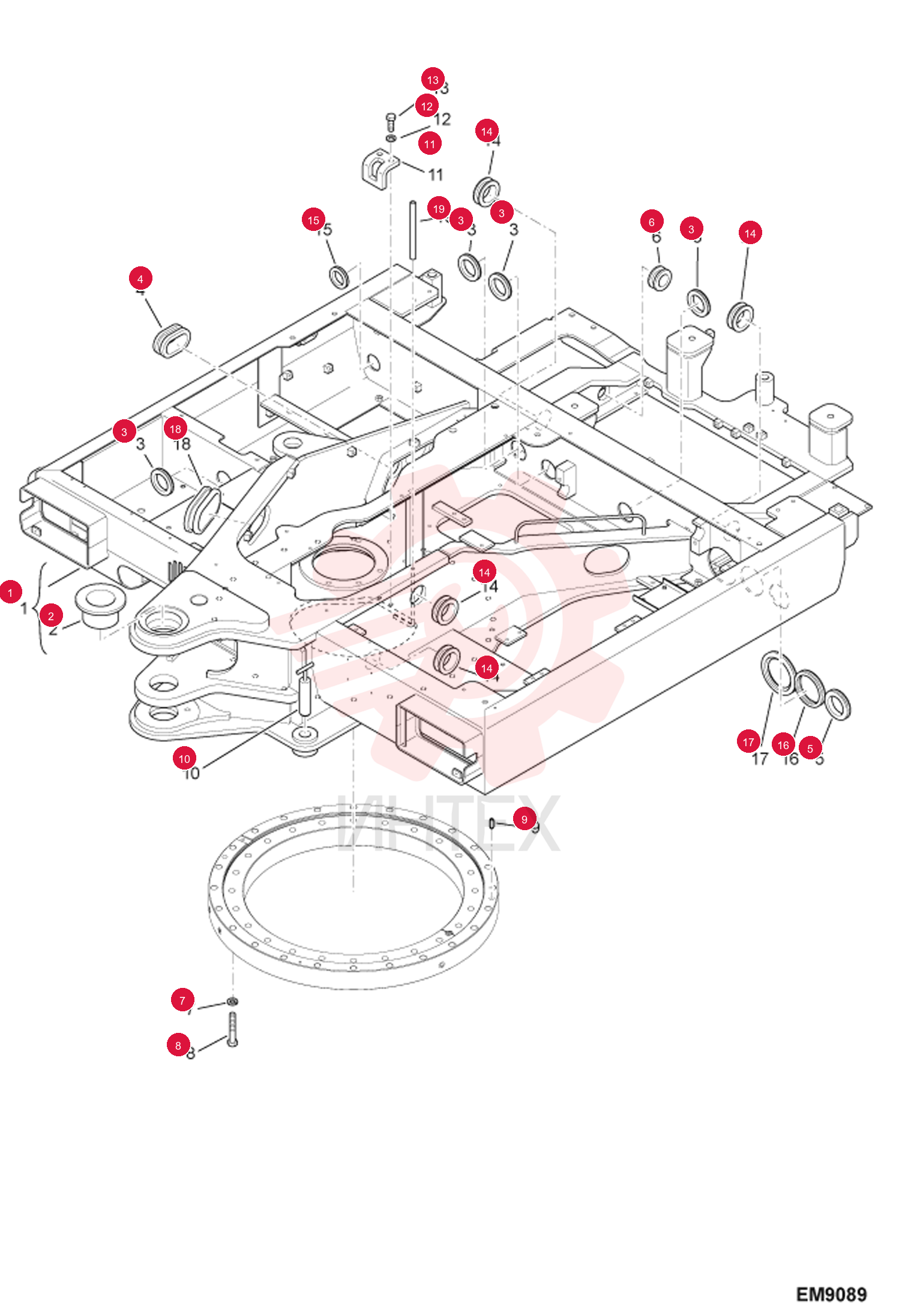

UPPERSTRUCTURE 7276013

UPPERSTRUCTURE 7276013

UPPERSTRUCTURE 7276013

1 7276013

  • 7276013 - UPPERSTRUCTURE
  • W/Ref. 2

2 7276014

  • 7276014 - UPPERSTRUCTURE
  • W/Ref. 2

3 7325296

  • 7325296 - UPPERSTRUCTURE
  • W/Ref. 2

4 7003854

  • 7003854 - BUSHING

5 7004602

  • 7004602 - BUSHING RUBBER

6 7004613

  • 7004613 - BUSHING RUBBER

7 7004606

  • 7004606 - GROMMET

8 7004610

  • 7004610 - BUSHING RUBBER

9 7030045

  • 7030045 - WASHER
  • SPRING

10 7029492

  • 7029492 - WASHER
  • SPRING

11 7007707

  • 7007707 - BOLT

12 7004570

  • 7004570 - PIN KNOCK

13 7003879

  • 7003879 - PIN SWING LOCK

14 7019004

  • 7019004 - PLATE

15 7007836

  • 7007836 - WASHER SPRING M12

16 7007681

  • 7007681 - BOLT

17 7004611

  • 7004611 - BUSHING RUBBER

18 7004607

  • 7004607 - BUSHING RUBBER

19 7004605

  • 7004605 - BUSHING RUBBER

20 7006490

  • 7006490 - BUSHING RUBBER

21 7005582

  • 7005582 - BUSHING RUBBER

22 7022939

  • 7022939 - HOSE
  • FUEL
