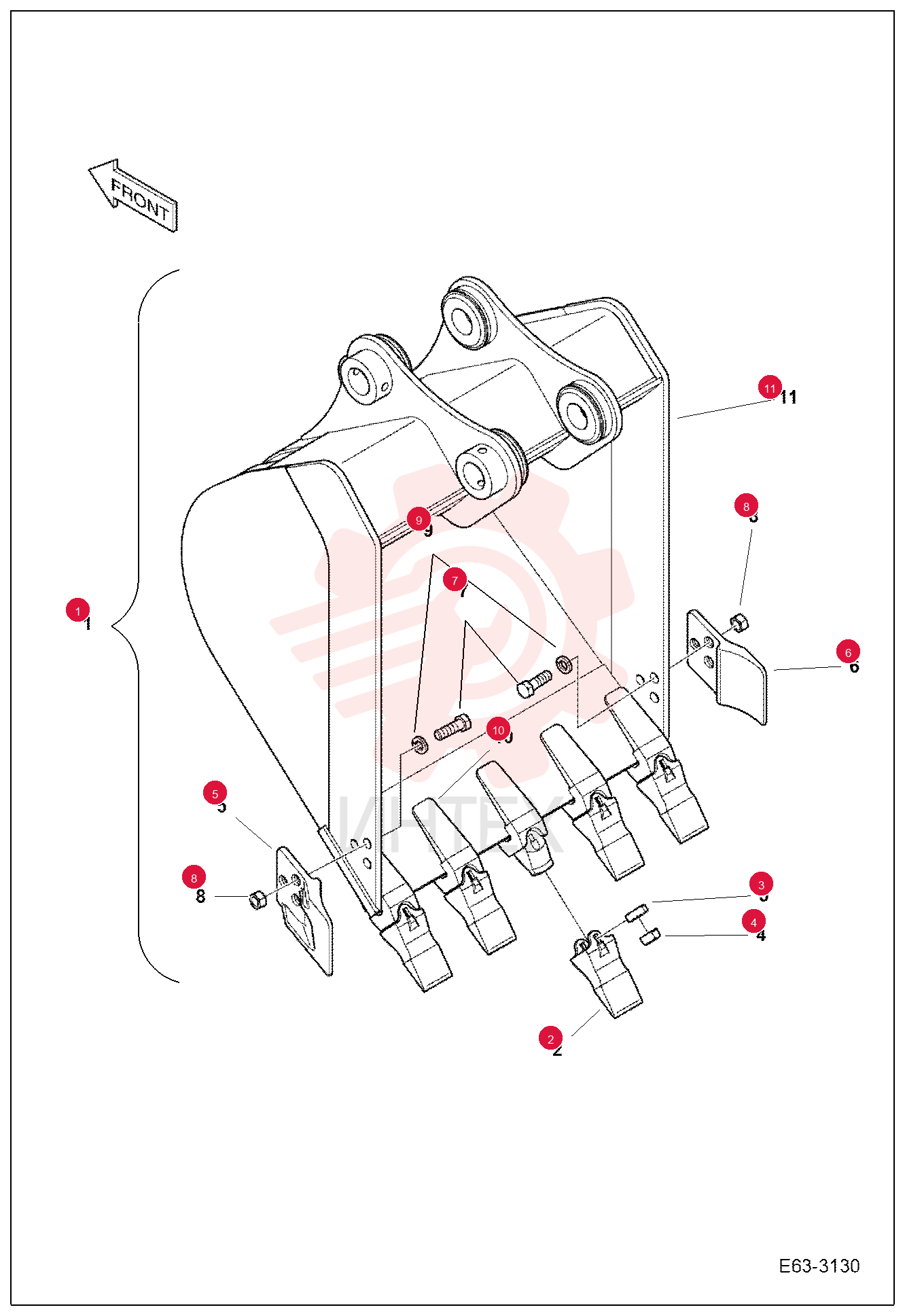

BUCKET, ASSY 7276479

BUCKET, ASSY 7276479

BUCKET, ASSY 7276479

1 7276479

  • 7276479 - BUCKET
  • ASSY
  • Ref. 2-10

2 7004950

  • 7004950 - POINT TOOTH

3 7012806

  • 7012806 - PIN LOCKING
  • Was 7007936

4 7004937

  • 7004937 - PAD RUBBER LOCKING

5 7004945

  • 7004945 - CUTTER SIDE L

6 7004944

  • 7004944 - CUTTER SIDE R

7 7007702

  • 7007702 - BOLT M16X2.0X50

8 7007801

  • 7007801 - NUT M16X1.0

9 7007838

  • 7007838 - WASHER SPRING M16

10 7029492

  • 7029492 - WASHER
  • SPRING

11 7004948

  • 7004948 - ADAPTER

12 7029690

  • 7029690 - BUCKET
  • ASSY
