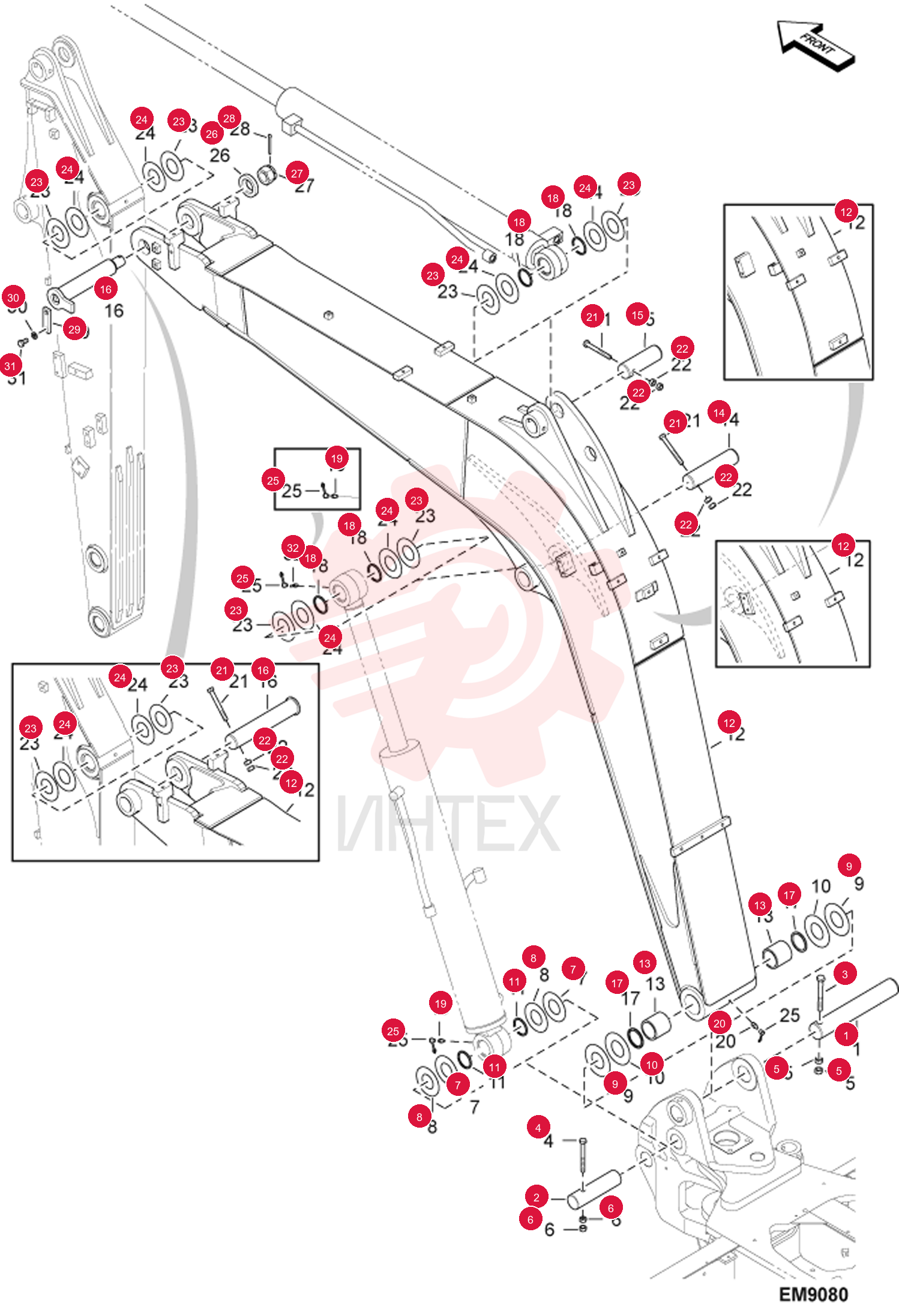

PIN, BOOM 7276578

PIN, BOOM 7276578

PIN, BOOM 7276578

1 7276578

  • 7276578 - PIN
  • BOOM

2 7022889

  • 7022889 - PIN

3 7007700

  • 7007700 - BOLT

4 7007693

  • 7007693 - BOLT

5 7007800

  • 7007800 - NUT M14

6 7007799

  • 7007799 - NUT

7 7005610

  • 7005610 - SHIM 1.0T
  • 1
  • 0 mm

8 7005611

  • 7005611 - SHIM 1.6T
  • 1
  • 6 mm

9 7005608

  • 7005608 - SHIM

10 7005609

  • 7005609 - SHIM

11 7029361

  • 7029361 - SEAL
  • DUST
  • Was 7004638

12 7283638

  • 7283638 - BOOM

13 7005734

  • 7005734 - BOOM MACH 3.0M
  • W/Ref. 13

14 7022890

  • 7022890 - BOOM
  • MACH
  • W/Ref. 13

15 7023680

  • 7023680 - BOOM
  • MACH
  • W/Ref. 13

16 7281136

  • 7281136 - BOOM

17 7029691

  • 7029691 - BUSHING
  • Was 7005746

18 7022885

  • 7022885 - PIN

19 7022891

  • 7022891 - PIN PIVOT

20 7022916

  • 7022916 - PIN
  • Was 7004574

21 7022892

  • 7022892 - PIN PIVOT

22 7347554

  • 7347554 - PIN BOOM

23 7029362

  • 7029362 - SEAL
  • DUST
  • Was 7004639

24 7029361

  • 7029361 - SEAL
  • DUST
  • Was 7004638

25 6694227

  • 6694227 - FITTING
  • GREASE
  • Was 7010247

26 7002206

  • 7002206 - FITTING
  • GREASE
  • Was 7007897

27 7007692

  • 7007692 - BOLT

28 7007692

  • 7007692 - BOLT

29 7007799

  • 7007799 - NUT

30 7007799

  • 7007799 - NUT

31 7005606

  • 7005606 - SHIM 1.0T
  • 1
  • 0 mm

32 7005607

  • 7005607 - SHIM 1.6T
  • 1
  • 6 mm

33 7003923

  • 7003923 - CAP GREASE NIPPLE

34 7022893

  • 7022893 - SPACER

35 7022894

  • 7022894 - NUT

36 7029244

  • 7029244 - NUT

37 7022895

  • 7022895 - PIN
  • SPLIT

38 7022896

  • 7022896 - PLATE

39 7022897

  • 7022897 - WASHER

40 7007836

  • 7007836 - WASHER SPRING M12

41 7007637

  • 7007637 - BOLT

42 7007898

  • 7007898 - FITTING GREASE
