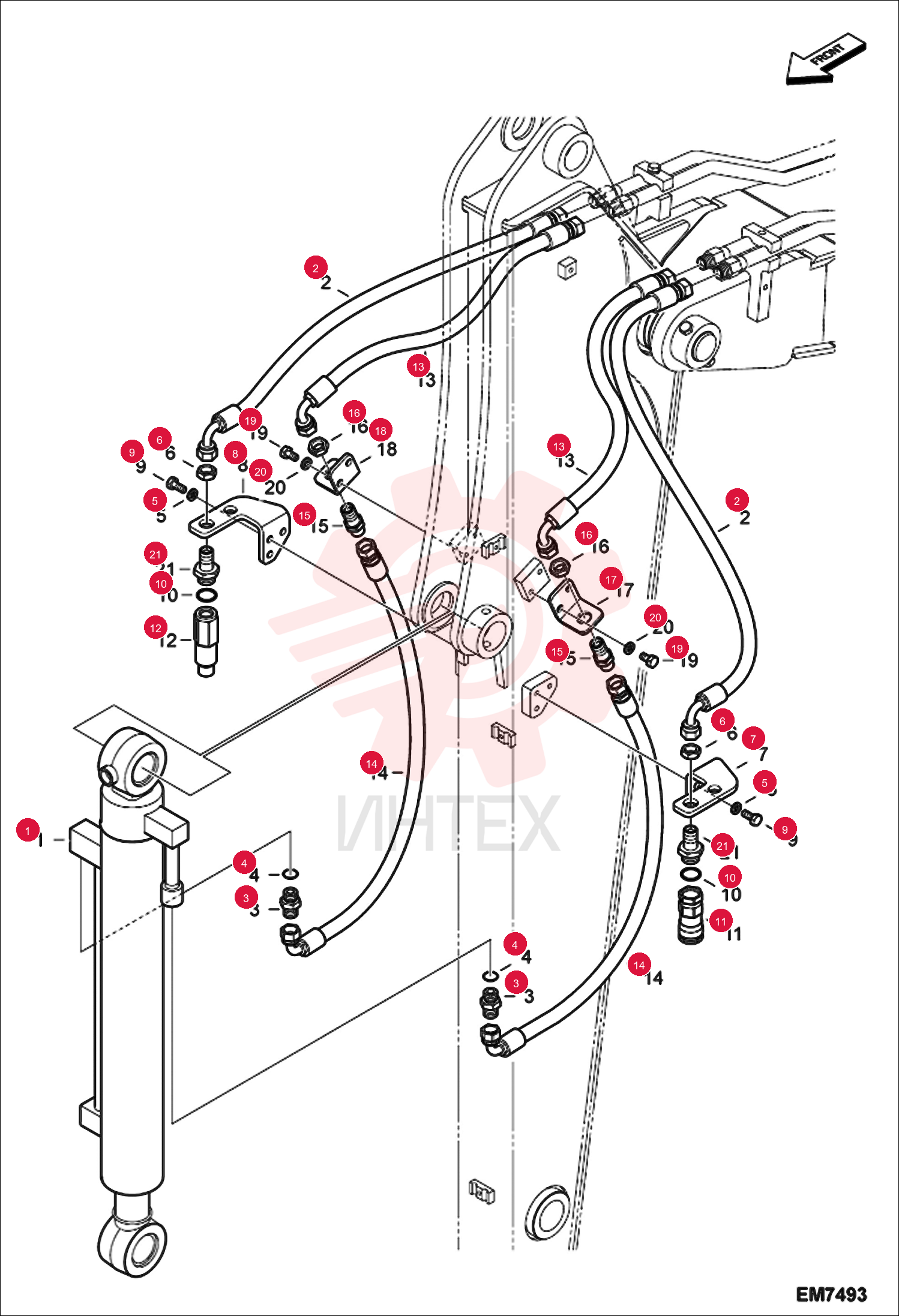

CYL, BUCKET 7280479 (2)

CYL, BUCKET 7280479 (2)

CYL, BUCKET 7280479 (2)

1 7280479

  • 7280479 - CYL
  • BUCKET

2 7010182

  • 7010182 - HOSE

3 7281596

  • 7281596 - HOSE
  • HYD

4 7004699

  • 7004699 - ADAPTER

5 7284557

  • 7284557 - O-RING
  • Was 7007911

6 7007835

  • 7007835 - WASHER SPRING

7 7003876

  • 7003876 - NUT

8 7010177

  • 7010177 - BRACKET

9 7010178

  • 7010178 - BRACKET

10 7007628

  • 7007628 - BOLT

11 7009947

  • 7009947 - O-RING

12 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - Was 6672960

13 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

14 7246777

  • 7246777 - COUPLER
  • FF MALE
  • - Was 6674688

15 7246777EF

  • 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE

16 7010565

  • 7010565 - HOSE

17 7281596

  • 7281596 - HOSE
  • HYD

18 7010183

  • 7010183 - HOSE

19 7005566

  • 7005566 - ADAPTER

20 7003876

  • 7003876 - NUT

21 7005925

  • 7005925 - BRACKET LH

22 7005926

  • 7005926 - BRACKET RH

23 7007626

  • 7007626 - BOLT

24 7007835

  • 7007835 - WASHER SPRING

25 7010173

  • 7010173 - ADAPTER
