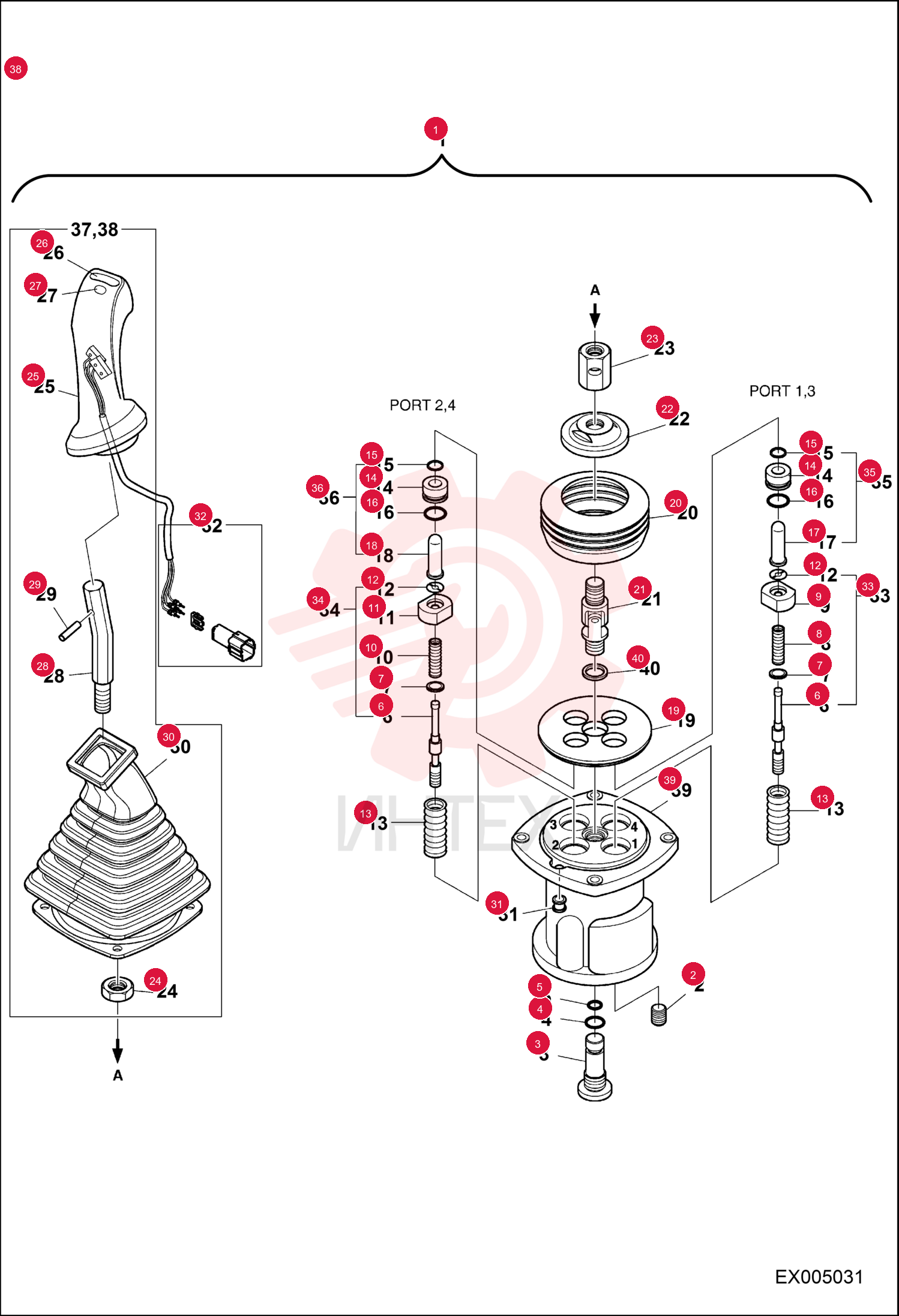

VALVE, JOYSTICK LH 7276043 (1)

VALVE, JOYSTICK LH 7276043 (1)

VALVE, JOYSTICK LH 7276043 (1)

1 7276043

  • 7276043 - VALVE
  • JOYSTICK LH
  • Ref. 2-40

2 7276044

  • 7276044 - VALVE
  • JOYSTICK RH
  • Ref. 2-40

3 7004671

  • 7004671 - PLUG PT 1/8

4 7006852

  • 7006852 - PLUG PF3/8

5 7284551

  • 7284551 - O-RING
  • Was 7007909

6 7007931

  • 7007931 - ORING

7 7003716

  • 7003716 - SHIM

8 7003837

  • 7003837 - SEAT SPRING

9 7003927

  • 7003927 - STOP

10 7003743

  • 7003743 - SPRING

11 7006819

  • 7006819 - SEAL ROD

12 7007913

  • 7007913 - O-RING

13 7003840

  • 7003840 - ROD PUSH

14 7003819

  • 7003819 - PLATE

15 7029288

  • 7029288 - PLATE

16 7028733

  • 7028733 - BOOT
  • RUBBER
  • Was 7003750

17 7003749

  • 7003749 - COUPLER JOINT ASSY

18 7276049

  • 7276049 - SWASHPLATE

19 7003733

  • 7003733 - NUT HEX

20 7007800

  • 7007800 - NUT M14

21 7006820

  • 7006820 - HANDLE ASSY LH
  • W/Ref. 26-27

22 7259145

  • 7259145 - HANDLE ASSY LH

23 7006821

  • 7006821 - HANDLE ASSY RH
  • W/Ref. 26-27

24 7003752

  • 7003752 - CAP PEANUT

25 7003751

  • 7003751 - CAP ROUND

26 7003753

  • 7003753 - BAR HANDLE

27 7007859

  • 7007859 - PIN SPRING

28 7006822

  • 7006822 - BOOT

29 7003711

  • 7003711 - BUSHING

30 7006823

  • 7006823 - CONNECTOR ASSEMBLY

31 7007016

  • 7007016 - KIT SPOOL PORT 1 AND 3
  • Ref. 6-9 & 12

32 7276029

  • 7276029 - KIT
  • SPOOL
  • Ref. 6-9 & 12 - ports 1 & 3

33 7007017

  • 7007017 - KIT SPOOL PORT 2 AND 4
  • Ref. 6-7 & 10-12

34 7276030

  • 7276030 - KIT
  • SPOOL
  • Ref. 6-7 & 10-12 - ports 2 & 4

35 7267156

  • 7267156 - PLUG
  • Ref. 14-17

36 7267155

  • 7267155 - PLUG
  • Ref. 14-16 & 18

37 7283456

  • 7283456 - KIT
  • HANDLE
  • Ref. 24-30

38 7283457

  • 7283457 - KIT
  • HANDLE
  • Ref. 24-30

39 7276032

  • 7276032 - SPACER
