R290LC-7
/
Гидравлическая система
/

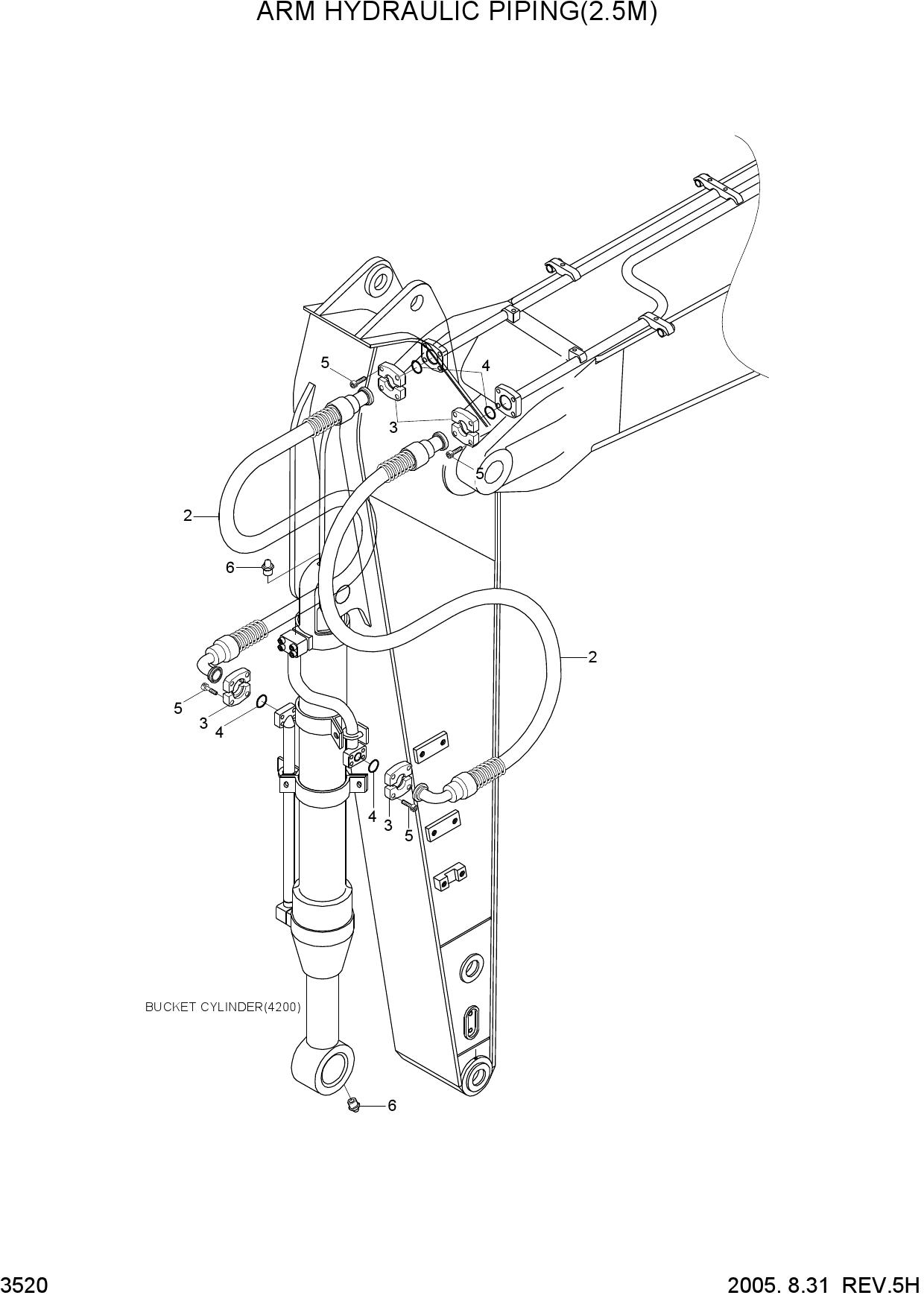

ARM HYDRAULIC PIPING(2.5M)

ARM HYDRAULIC PIPING(2.5M)

ARM HYDRAULIC PIPING(2.5M)

1 31E9-60081

  • 31E9-60081 - HOSE ASSY
  • Поз.: 2

2 31E9-60082

  • 31E9-60082 - HOSE ASSY
  • Поз.: 2

3 31E9-60062

  • 31E9-60062 - HOSE ASSY
  • Поз.: 2

4 31E9-60063

  • 31E9-60063 - HOSE ASSY
  • Поз.: 2

5 P173-160104

  • P173-160104 - FLANGE-HYD
  • SPLIT
  • Поз.: 3

6 P590-033002

  • P590-033002 - O-RING
  • Поз.: 4

7 Y171-024004

  • Y171-024004 - O-RING
  • Поз.: 4

8 S109-100306

  • S109-100306 - BOLT-SOCKET
  • Поз.: 5

9 S651-810002

  • S651-810002 - NIPPLE-GREASE
  • Поз.: 6
