Гусеничные экскаваторы
/
R290LC-7
/
Гидравлическая система
/

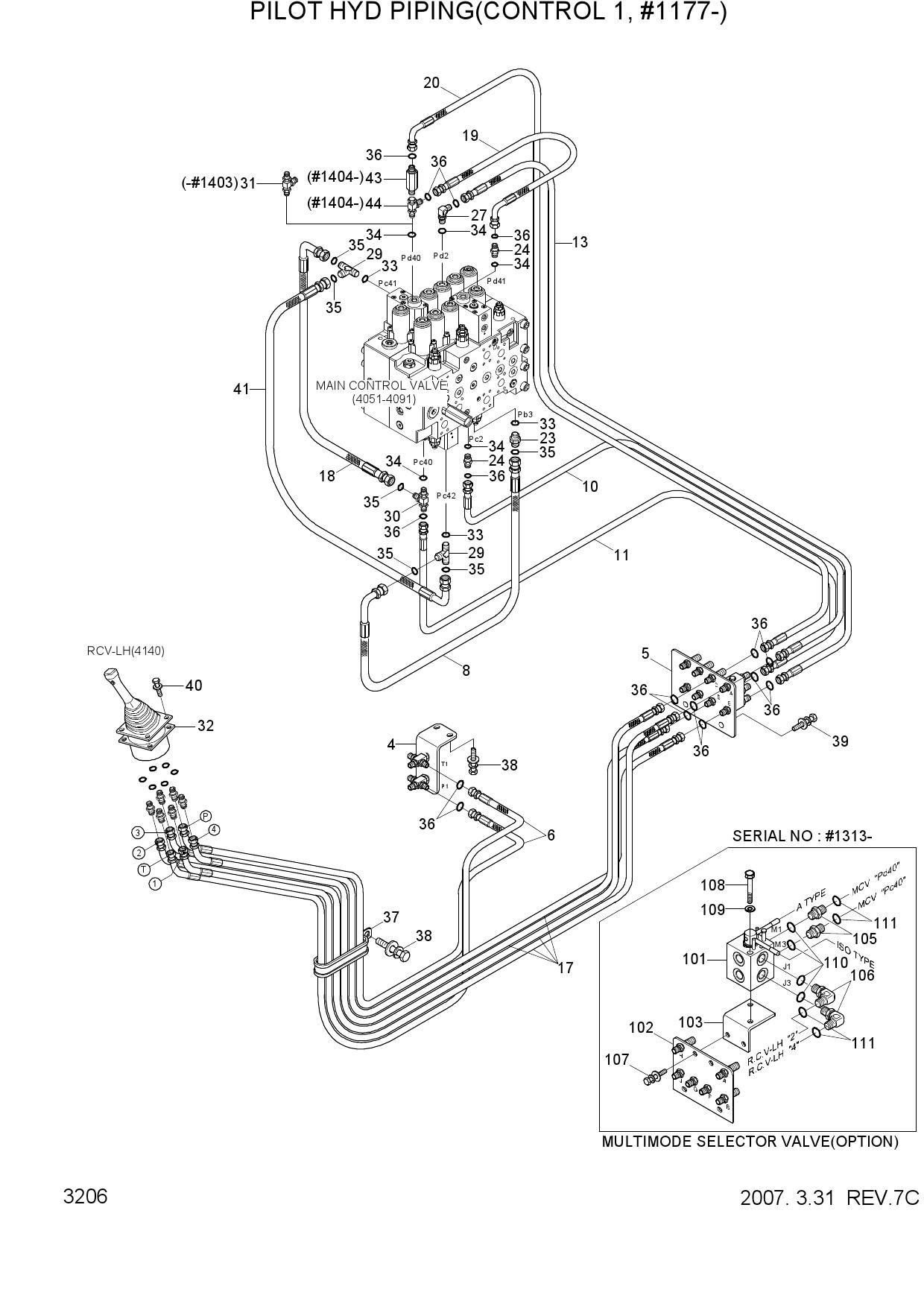

PILOT HYD PIPING(CONTROL 1, #1177-)

PILOT HYD PIPING(CONTROL 1, #1177-)

PILOT HYD PIPING(CONTROL 1, #1177-)

1 31NB-20022

  • 31NB-20022 - CROSS ASSY
  • Поз.: 4

2 31N8-24010

  • 31N8-24010 - TERMINAL ASSY-C
  • Поз.: 5

3 P920-062026

  • P920-062026 - HOSE ASSY-ORFS 0X45
  • Поз.: 6

4 X420-042009

  • X420-042009 - HOSE ASSY-ORFS 0X90
  • Поз.: 8

5 X400-062029

  • X400-062029 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 10

6 X400-062032

  • X400-062032 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 11

7 X400-062035

  • X400-062035 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 13

8 X410-062041

  • X410-062041 - HOSE ASSY-ORFS 0X45
  • Поз.: 17

9 X420-042016

  • X420-042016 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 18

10 X420-062014

  • X420-062014 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 19

11 X420-062038

  • X420-062038 - HOSE ASSY-SYNF
  • ORFS 0X90
  • Поз.: 20

12 X500-110013

  • X500-110013 - CONNECTOR-ORFS
  • Поз.: 23

13 X500-110002

  • X500-110002 - CONNECTOR-ORFS
  • Поз.: 24

14 X520-110002

  • X520-110002 - ELBOW-90
  • ORFS
  • Поз.: 27

15 X820-045151

  • X820-045151 - TEE-R/TYPE
  • ORFS
  • Поз.: 29

16 X820-065152

  • X820-065152 - TEE-R/TYPE
  • ORFS
  • Поз.: 30

17 X820-065252

  • X820-065252 - TEE-R/TYPE
  • ORFS
  • Поз.: 31

18 31M6-51061

  • 31M6-51061 - SHIM(3.2T)
  • Поз.: 32

19 S631-011004

  • S631-011004 - O-RING
  • Поз.: 33

20 S631-014004

  • S631-014004 - O-RING
  • Поз.: 34

21 S621-011001

  • S621-011001 - O-RING
  • Поз.: 35

22 S621-012001

  • S621-012001 - O-RING
  • Поз.: 36

23 31E7-0310

  • 31E7-0310 - CLAMP-HOSE
  • Поз.: 37

24 S037-102526

  • S037-102526 - BOLT-W/WASHER
  • Поз.: 38

25 S037-103026

  • S037-103026 - BOLT-W/WASHER
  • Поз.: 39

26 S035-063046

  • S035-063046 - BOLT-W/WASHER
  • Поз.: 40

27 X420-042018

  • X420-042018 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 41

28 31N6-22350

  • 31N6-22350 - VALVE-SHOCKLESS
  • Поз.: 43

29 X840-525252

  • X840-525252 - TEE-R/TYPE
  • SWIVEL
  • ORFS
  • Поз.: 44

30 31N6-22050

  • 31N6-22050 - SELECTOR VLV-MULTIMODE
  • Поз.: 101

31 31N9-22110

  • 31N9-22110 - TERMINAL ASSY
  • Поз.: 102

32 31N9-22120

  • 31N9-22120 - BRACKET-WA
  • Поз.: 103

33 X500-110011

  • X500-110011 - CONNECTOR-ORFS
  • Поз.: 105

34 X520-110011

  • X520-110011 - ELBOW-90
  • ORFS
  • Поз.: 106

35 S037-103026

  • S037-103026 - BOLT-W/WASHER
  • Поз.: 107

36 S015-080806

  • S015-080806 - BOLT-HEX
  • Поз.: 108

37 S411-080006

  • S411-080006 - WASHER-SPRING
  • Поз.: 109

38 S631-011004

  • S631-011004 - O-RING
  • Поз.: 110

39 S621-012001

  • S621-012001 - O-RING
  • Поз.: 111
