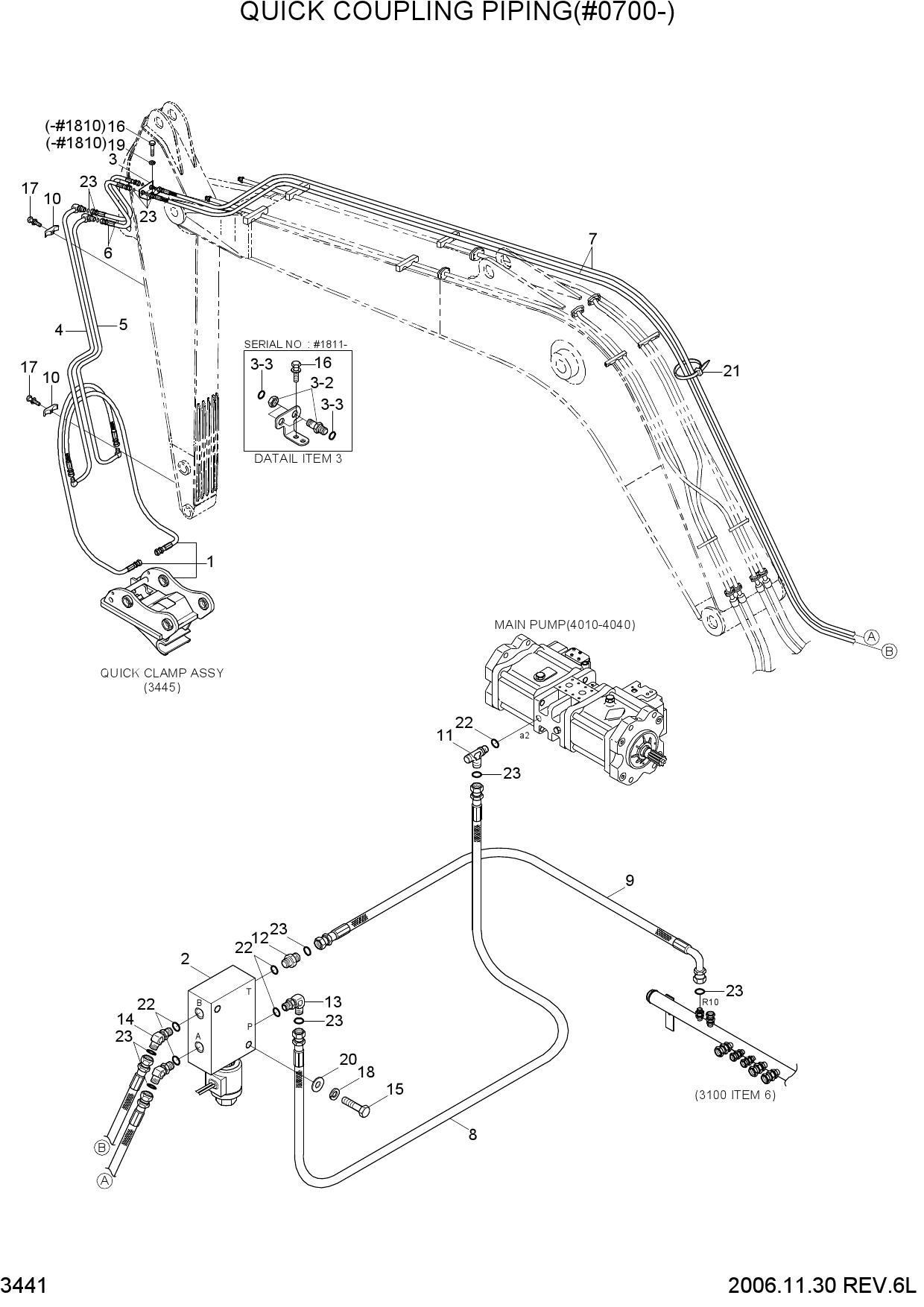

QUICK CLAMP PIPING(#0700-)

QUICK CLAMP PIPING(#0700-)

QUICK CLAMP PIPING(#0700-)

1 31N8-95710

  • 31N8-95710 - QUICK CLAMP ASSY
  • Поз.: 1

2 34EA-91720

  • 34EA-91720 - SOLENOID VALVE
  • Поз.: 2

3 34EA-91720BLOCK

  • 34EA-91720BLOCK - MANIFOLD
  • Поз.: 2-1

4 GS044200NC

  • GS044200NC - VALVE-SOLENOID
  • Поз.: 2-2

5 CAP024L+DT

  • CAP024L+DT - COIL
  • Поз.: 2-3

6 31N4-90680

  • 31N4-90680 - TERMAINAL-Q/CLAMP
  • Поз.: 3

7 31N8-95770

  • 31N8-95770 - TERMINAL-Q/CLAMP
  • Поз.: 3

8 X540-120001

  • X540-120001 - CONNECTOR-ORFS
  • Поз.: 3-2

9 S621-011001

  • S621-011001 - O-RING
  • Поз.: 3-3

10 31N8-95720

  • 31N8-95720 - PIPE ASSY
  • Поз.: 4

11 31N8-95740

  • 31N8-95740 - PIPE ASSY
  • Поз.: 4

12 31N8-95780

  • 31N8-95780 - PIPE ASSY
  • Поз.: 4

13 31N8-95730

  • 31N8-95730 - PIPE ASSY
  • Поз.: 5

14 31N8-95750

  • 31N8-95750 - PIPE ASSY
  • Поз.: 5

15 31N8-95790

  • 31N8-95790 - PIPE ASSY
  • Поз.: 5

16 P913-047036

  • P913-047036 - HOSE ASSY-ORFS 0X0
  • Поз.: 6

17 P913-047024

  • P913-047024 - HOSE ASSY-ORFS 0X0
  • Поз.: 6

18 P913-047050

  • P913-047050 - HOSE ASSY-ORFS 0X0
  • Поз.: 6

19 P913-047034

  • P913-047034 - HOSE ASSY-ORFS 0X0
  • Поз.: 6

20 P910-047183

  • P910-047183 - HOSE ASSY-ORFS 0X0
  • Поз.: 7

21 P913-047026

  • P913-047026 - HOSE ASSY-ORFS 0X0
  • Поз.: 8

22 31N4-95770

  • 31N4-95770 - TERMINAL-Q/CLAMP
  • Поз.: 8

23 31N8-95800

  • 31N8-95800 - HOSE ASSY
  • Поз.: 9

24 P930-042021

  • P930-042021 - HOSE ASSY-ORFS 0X90
  • Поз.: 9

25 34EA-91811

  • 34EA-91811 - CLAMP-PIPE
  • Поз.: 10

26 34EA-91811

  • 34EA-91811 - CLAMP-PIPE
  • Поз.: 10

27 31N4-22170

  • 31N4-22170 - TEE-RUN TYPE
  • Поз.: 11

28 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 12

29 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 13

30 X530-110001

  • X530-110001 - ELBOW-45
  • ORFS
  • Поз.: 14

31 S017-100506

  • S017-100506 - BOLT-HEX
  • Поз.: 15

32 S017-16075A

  • S017-16075A - BOLT-HEX
  • Поз.: 16

33 S037-124026

  • S037-124026 - BOLT-W/WASHER
  • Поз.: 16

34 S037-103026

  • S037-103026 - BOLT-W/WASHER
  • Поз.: 17

35 S037-103026

  • S037-103026 - BOLT-W/WASHER
  • Поз.: 17

36 S411-100006

  • S411-100006 - WASHER-SPRING
  • Поз.: 18

37 S411-160006

  • S411-160006 - WASHER-SPRING
  • Поз.: 19

38 S403-101006

  • S403-101006 - WASHER-PLAIN
  • Поз.: 20

39 S554-054300

  • S554-054300 - CLAMP-BAND
  • Поз.: 21

40 S631-011004

  • S631-011004 - O-RING
  • Поз.: 22

41 S621-011001

  • S621-011001 - O-RING
  • Поз.: 23
