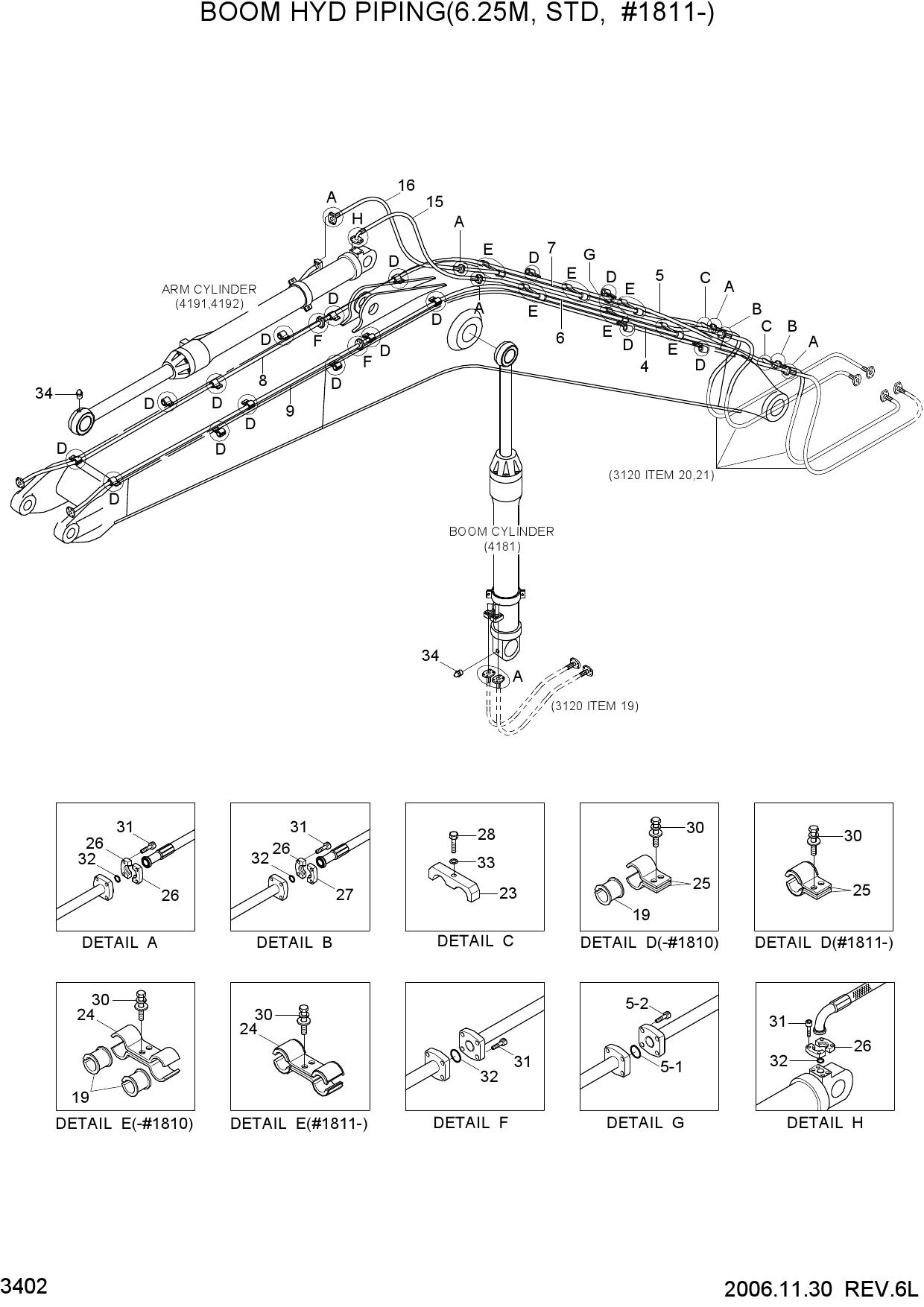

BOOM HYD PIPING(6.25M, STD, #1811-)

BOOM HYD PIPING(6.25M, STD, #1811-)

BOOM HYD PIPING(6.25M, STD, #1811-)

1 31N8-51110

  • 31N8-51110 - PIPE ASSY
  • Поз.: 4

2 31N8-51120

  • 31N8-51120 - PIPE ASSY
  • Поз.: 5

3 Y171-024004

  • Y171-024004 - O-RING
  • Поз.: 5-1

4 S109-100306

  • S109-100306 - BOLT-SOCKET
  • Поз.: 5-2

5 31N8-51130

  • 31N8-51130 - PIPE ASSY
  • Поз.: 6

6 31N8-51140

  • 31N8-51140 - PIPE ASSY
  • Поз.: 7

7 31N8-51150

  • 31N8-51150 - PIPE ASSY
  • Поз.: 8

8 31N8-51160

  • 31N8-51160 - PIPE ASSY
  • Поз.: 9

9 P700-167321FL

  • P700-167321FL - HOSE ASSY-FLG 0X90
  • Поз.: 15

10 P680-167325FL

  • P680-167325FL - HOSE ASSY-FLG
  • Поз.: 16

11 34E7-03510

  • 34E7-03510 - GROMMET
  • Поз.: 19

12 31N8-51170

  • 31N8-51170 - CLAMP ASSY
  • Поз.: 23

13 31E7-0175

  • 31E7-0175 - CLAMP
  • Поз.: 24

14 31E7-01750

  • 31E7-01750 - CLAMP ASSY
  • Поз.: 24

15 31E7-01710

  • 31E7-01710 - CLAMP
  • Поз.: 25

16 31E7-01711

  • 31E7-01711 - CLAMP ASSY
  • Поз.: 25

17 P173-160104

  • P173-160104 - FLANGE-HYD
  • SPLIT
  • Поз.: 26

18 31E9-01320

  • 31E9-01320 - FLANGE-SPLIT
  • Поз.: 27

19 S017-16080A

  • S017-16080A - BOLT-HEX(COATING)
  • Поз.: 28

20 S037-123522

  • S037-123522 - BOLT-W/WASHER
  • Поз.: 30

21 S109-100306

  • S109-100306 - BOLT-SOCKET
  • Поз.: 31

22 Y171-024004

  • Y171-024004 - O-RING
  • Поз.: 32

23 S441-160002

  • S441-160002 - WASHER-HARDENED
  • Поз.: 33

24 S651-810002

  • S651-810002 - NIPPLE-GREASE
  • Поз.: 34
