R290LC-7
/
Гидравлическая система
/

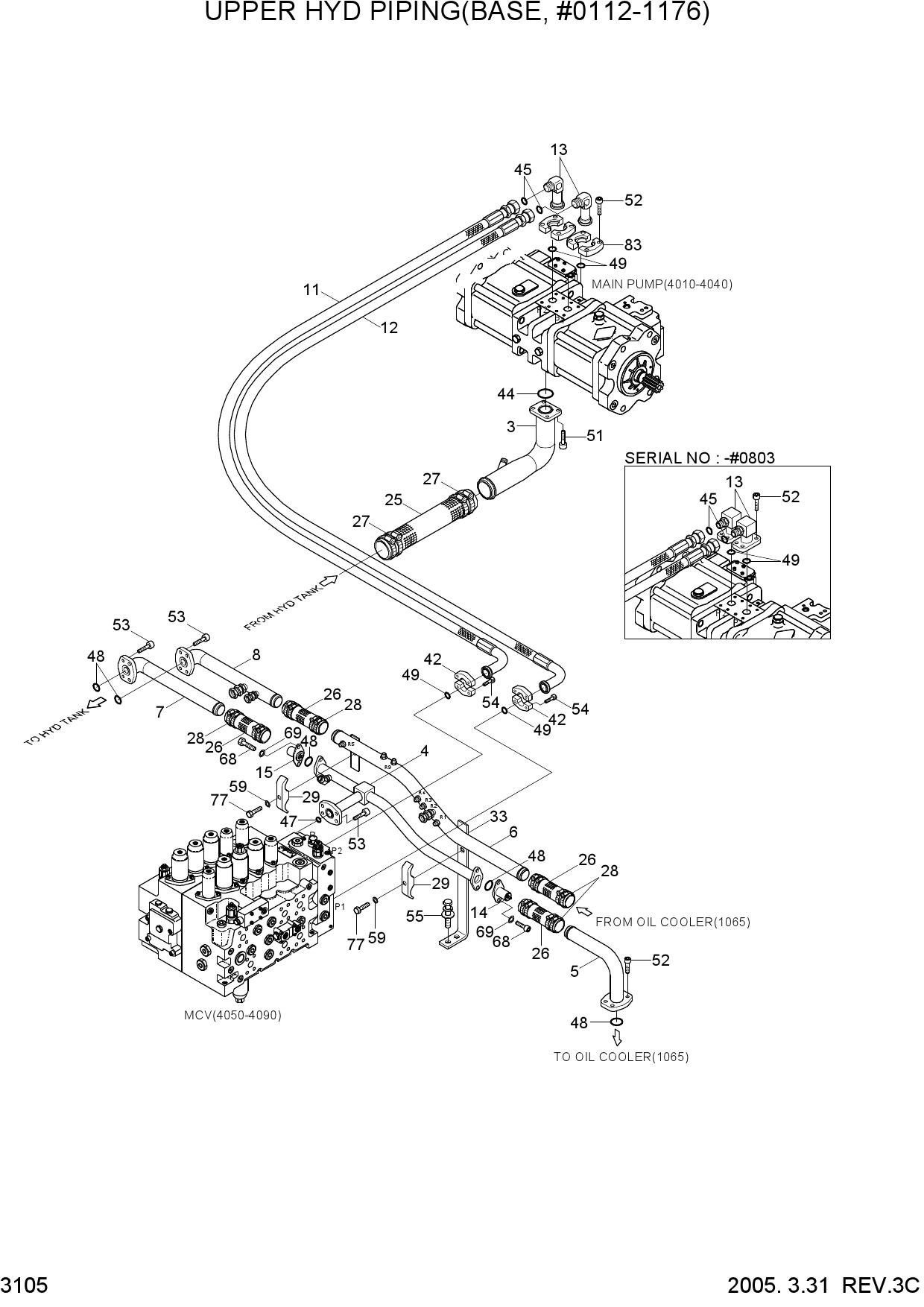

UPPER HYD PIPING(BASE, #0112-1176)

UPPER HYD PIPING(BASE, #0112-1176)

UPPER HYD PIPING(BASE, #0112-1176)

1 32N8-13010

  • 32N8-13010 - PIPE WA-SUCTION
  • Поз.: 3

2 32N8-13011

  • 32N8-13011 - PIPE WA-SUCTION
  • Поз.: 3

3 32N8-13031

  • 32N8-13031 - PIPE WA
  • Поз.: 4

4 32N8-13032

  • 32N8-13032 - PIPE WA
  • Поз.: 4

5 32N8-13100

  • 32N8-13100 - PIPE WA
  • Поз.: 5

6 32N8-13051

  • 32N8-13051 - PIPE WA
  • Поз.: 6

7 32N8-13052

  • 32N8-13052 - PIPE WA
  • Поз.: 6

8 31N8-12151

  • 31N8-12151 - PIPE WA
  • Поз.: 7

9 31N8-12160

  • 31N8-12160 - PIPE WA
  • Поз.: 8

10 31N9-12130

  • 31N9-12130 - PIPE WA
  • Поз.: 8

11 31N9-12131

  • 31N9-12131 - PIPE WA
  • Поз.: 8

12 32N8-13070

  • 32N8-13070 - HOSE ASSY
  • Поз.: 11

13 32N8-13071

  • 32N8-13071 - HOSE ASSY
  • Поз.: 11

14 32N8-13060

  • 32N8-13060 - HOSE ASSY
  • Поз.: 12

15 32N8-13061

  • 32N8-13061 - HOSE ASSY
  • Поз.: 12

16 31N8-12200

  • 31N8-12200 - PIPE WA
  • Поз.: 13

17 31NA-12050

  • 31NA-12050 - ELBOW 90-ORFS
  • Поз.: 13

18 31ER-11111

  • 31ER-11111 - VALVE-CHECK
  • Поз.: 14

19 31ER-11121

  • 31ER-11121 - CHECK VALVE
  • Поз.: 14

20 31ER-11121

  • 31ER-11121 - CHECK VALVE
  • Поз.: 15

21 31N7-12280

  • 31N7-12280 - CHECK VALVE
  • Поз.: 15

22 31N7-12281

  • 31N7-12281 - VALVE-CHECK
  • Поз.: 15

23 P760-101035

  • P760-101035 - HOSE-RUBBER
  • Поз.: 25

24 P760-072025

  • P760-072025 - HOSE-RUBBER
  • Поз.: 26

25 S520-100000

  • S520-100000 - CLAMP-HOSE
  • Поз.: 27

26 31N6-11190

  • 31N6-11190 - CLAMP-HOSE WIRE TYPE
  • Поз.: 27

27 S520-055000

  • S520-055000 - CLAMP-HOSE
  • Поз.: 28

28 S572-650006

  • S572-650006 - CLAMP-HOSE
  • WIRE TYPE
  • Поз.: 28

29 31E5-3001

  • 31E5-3001 - CLAMP-PIPE
  • Поз.: 29

30 32N8-13090

  • 32N8-13090 - BRACKET
  • Поз.: 33

31 P173-160104

  • P173-160104 - FLANGE-HYD
  • SPLIT
  • Поз.: 42

32 S631-085001

  • S631-085001 - O-RING
  • Поз.: 44

33 S621-021001

  • S621-021001 - O-RING
  • Поз.: 45

34 Y172-006004

  • Y172-006004 - O-RING
  • Поз.: 47

35 Y172-003004

  • Y172-003004 - O-RING
  • Поз.: 48

36 Y171-024004

  • Y171-024004 - O-RING
  • Поз.: 49

37 S109-160406

  • S109-160406 - BOLT-SOCKET
  • Поз.: 51

38 S109-120406

  • S109-120406 - BOLT-SOCKET
  • Поз.: 52

39 S109-120306

  • S109-120306 - BOLT-SOCKET
  • Поз.: 53

40 S109-100306

  • S109-100306 - BOLT-SOCKET
  • Поз.: 54

41 S037-102522

  • S037-102522 - BOLT-W/WASHER
  • Поз.: 55

42 S411-100002

  • S411-100002 - WASHER-SPRING
  • Поз.: 59

43 S109-120456

  • S109-120456 - BOLT-SOCKET
  • Поз.: 68

44 S403-121002

  • S403-121002 - WASHER-PLAIN
  • Поз.: 69

45 S017-100752

  • S017-100752 - BOLT-HEX
  • Поз.: 77

46 P174-160115

  • P174-160115 - FLANGE-SPLIT
  • Поз.: 83
