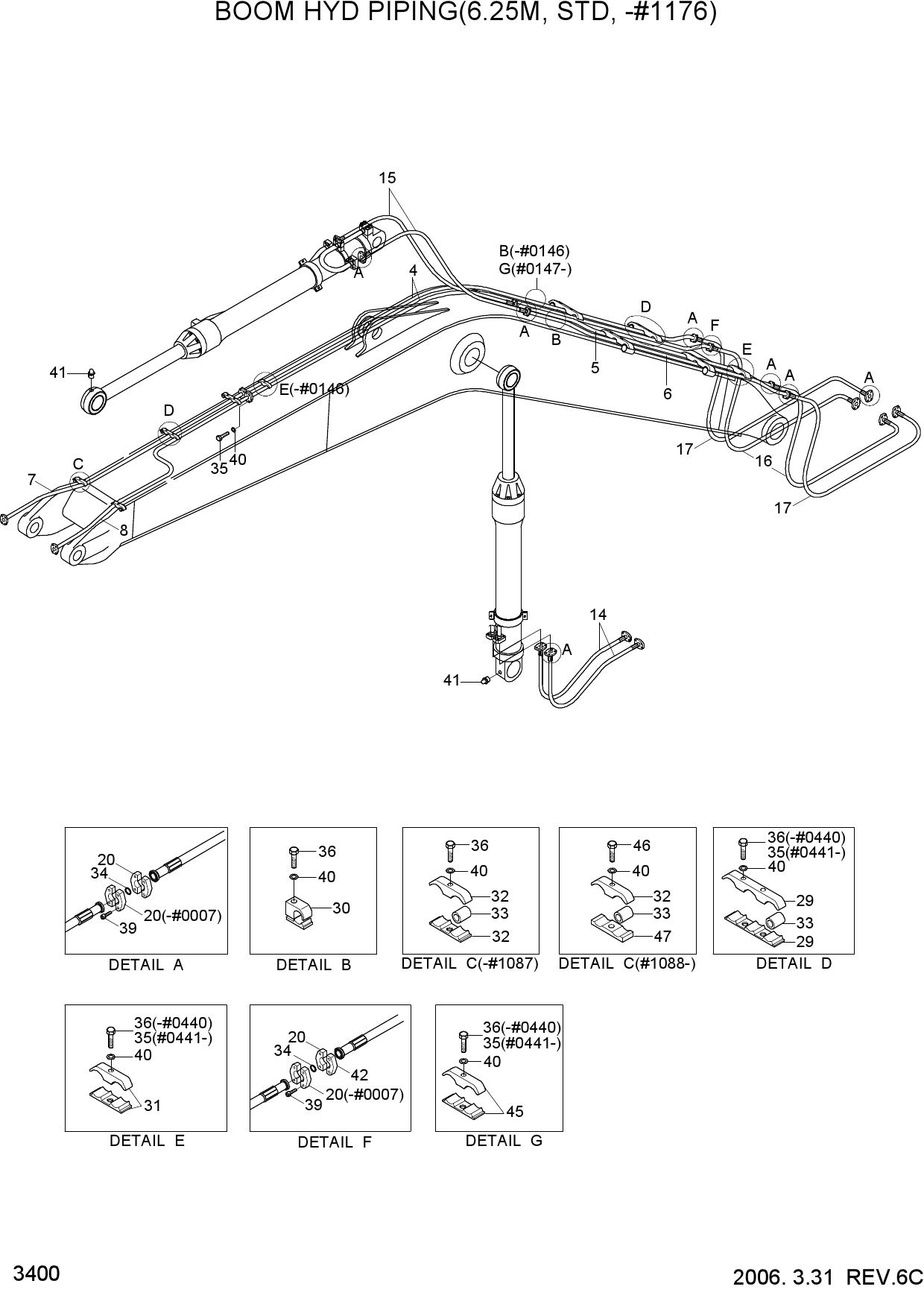

BOOM HYD PIPING(6.25M, STD, -#1176)

BOOM HYD PIPING(6.25M, STD, -#1176)

BOOM HYD PIPING(6.25M, STD, -#1176)

1 31E9-0124

  • 31E9-0124 - PIPE ASSY
  • Поз.: 4

2 31N8-50220

  • 31N8-50220 - PIPE ASSY
  • Поз.: 4

3 31N8-50221

  • 31N8-50221 - PIPE ASSY
  • Поз.: 4

4 31E9-50141

  • 31E9-50141 - PIPE ASSY
  • Поз.: 5

5 31N8-50230

  • 31N8-50230 - PIPE ASSY
  • Поз.: 5

6 31N8-50231

  • 31N8-50231 - PIPE ASSY
  • Поз.: 5

7 31N8-50232

  • 31N8-50232 - PIPE ASSY
  • Поз.: 5

8 31E9-50151

  • 31E9-50151 - PIPE ASSY
  • Поз.: 6

9 31N8-50240

  • 31N8-50240 - PIPE ASSY
  • Поз.: 6

10 31N8-50241

  • 31N8-50241 - PIPE ASSY
  • Поз.: 6

11 31N8-50242

  • 31N8-50242 - PIPE ASSY
  • Поз.: 6

12 31E9-0070

  • 31E9-0070 - PIPE ASSY
  • Поз.: 7

13 31N8-50210

  • 31N8-50210 - PIPE ASSY
  • Поз.: 7

14 31N8-50211

  • 31N8-50211 - PIPE ASSY
  • Поз.: 7

15 31N8-50190

  • 31N8-50190 - PIPE ASSY
  • Поз.: 8

16 31N8-50191

  • 31N8-50191 - PIPE ASSY
  • Поз.: 8

17 P683-167317

  • P683-167317 - HOSE ASSY-FLG 0X0
  • Поз.: 14

18 P680-167321

  • P680-167321 - HOSE ASSY-FLG 0X0
  • Поз.: 15

19 P680-167322

  • P680-167322 - HOSE ASSY-FLG
  • Поз.: 15

20 31N8-12330

  • 31N8-12330 - HOSE ASSY-FLGXFLG
  • 0X90
  • Поз.: 16

21 31N8-12340

  • 31N8-12340 - HOSE ASSY-FLGXFLG
  • 0X90
  • Поз.: 17

22 P173-160104

  • P173-160104 - FLANGE-HYD
  • SPLIT
  • Поз.: 20

23 P173-160104

  • P173-160104 - FLANGE-HYD
  • SPLIT
  • Поз.: 20

24 P173-160104

  • P173-160104 - FLANGE-HYD
  • SPLIT
  • Поз.: 20

25 31N6-50340

  • 31N6-50340 - CLAMP ASSY
  • Поз.: 29

26 31N6-50300

  • 31N6-50300 - CLAMP ASSY
  • Поз.: 30

27 31N6-50300

  • 31N6-50300 - CLAMP ASSY
  • Поз.: 30

28 31N6-50300

  • 31N6-50300 - CLAMP ASSY
  • Поз.: 30

29 31N6-50310

  • 31N6-50310 - CLAMP ASSY
  • Поз.: 31

30 31N6-50310

  • 31N6-50310 - CLAMP ASSY
  • Поз.: 31

31 31N6-50320

  • 31N6-50320 - CLAMP ASSY
  • Поз.: 32

32 31N6-50320

  • 31N6-50320 - CLAMP ASSY
  • Поз.: 32

33 31EH-50140

  • 31EH-50140 - SPACER-PIPE
  • Поз.: 33

34 31N5-50240

  • 31N5-50240 - SPACER-PIPE
  • Поз.: 33

35 31N5-50240

  • 31N5-50240 - SPACER-PIPE
  • Поз.: 33

36 Y171-024004

  • Y171-024004 - O-RING
  • Поз.: 34

37 Y171-024004

  • Y171-024004 - O-RING
  • Поз.: 34

38 S017-16080A

  • S017-16080A - BOLT-HEX(COATING)
  • Поз.: 35

39 S017-160752

  • S017-160752 - BOLT-HEX
  • Поз.: 36

40 S017-160752

  • S017-160752 - BOLT-HEX
  • Поз.: 36

41 S017-160752

  • S017-160752 - BOLT-HEX
  • Поз.: 36

42 S017-160752

  • S017-160752 - BOLT-HEX
  • Поз.: 36

43 S109-100306

  • S109-100306 - BOLT-SOCKET
  • Поз.: 39

44 S109-100306

  • S109-100306 - BOLT-SOCKET
  • Поз.: 39

45 S411-160002

  • S411-160002 - WASHER-SPRING
  • Поз.: 40

46 S411-160002

  • S411-160002 - WASHER-SPRING
  • Поз.: 40

47 S651-810002

  • S651-810002 - NIPPLE-GREASE
  • Поз.: 41

48 31E9-01320

  • 31E9-01320 - FLANGE-SPLIT
  • Поз.: 42

49 31N6-50330

  • 31N6-50330 - CLAMP ASSY
  • Поз.: 45

50 S019-16080A

  • S019-16080A - BOLT-HEX
  • Поз.: 46

51 31N8-50410

  • 31N8-50410 - CLAMP
  • Поз.: 47
