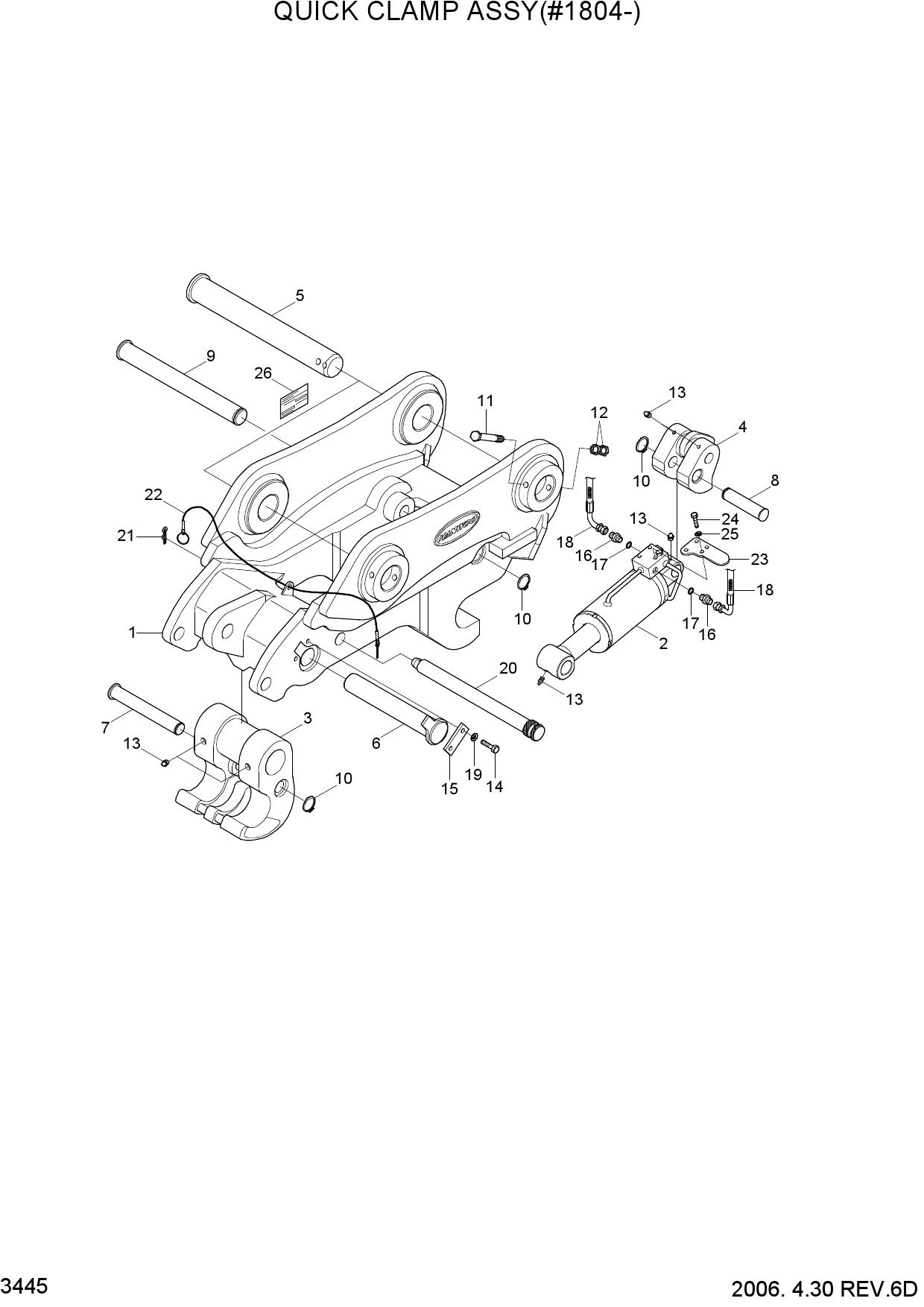

QUICK CLAMP ASSY(#1804-)

QUICK CLAMP ASSY(#1804-)

QUICK CLAMP ASSY(#1804-)

1 XKBP-00124

  • XKBP-00124 - BODY ASSY
  • Поз.: 1

2 XKBP-00125

  • XKBP-00125 - CYLINDER ASSY
  • Поз.: 2

3 XKBP-00126

  • XKBP-00126 - HOOK ASSY
  • Поз.: 3

4 XKBP-00127

  • XKBP-00127 - LOCK ASSY
  • Поз.: 4

5 XKBP-00128

  • XKBP-00128 - PIN-BRACKET
  • Поз.: 5

6 XKBP-00129

  • XKBP-00129 - PIN-HOOK
  • Поз.: 6

7 XKBP-00130

  • XKBP-00130 - PIN-JOINT
  • Поз.: 7

8 XKBP-00131

  • XKBP-00131 - PIN-JOINT
  • Поз.: 8

9 XKBP-00132

  • XKBP-00132 - PIN-LOCK
  • Поз.: 9

10 XKBP-00133

  • XKBP-00133 - RING-SNAP
  • Поз.: 10

11 XKBP-00134

  • XKBP-00134 - BOLT-HEX
  • Поз.: 11

12 XKBP-00135

  • XKBP-00135 - NUT-HEX
  • Поз.: 12

13 XKBP-00015

  • XKBP-00015 - NIPPLE-GREASE
  • Поз.: 13

14 XKBP-00166

  • XKBP-00166 - BOLT-HEX
  • Поз.: 14

15 XKBP-00137

  • XKBP-00137 - PLATE-COVER
  • Поз.: 15

16 XKBP-00138

  • XKBP-00138 - ADAPTER
  • Поз.: 16

17 XKBF-00507

  • XKBF-00507 - O-RING
  • Поз.: 17

18 XKBP-00140

  • XKBP-00140 - HOSE
  • Поз.: 18

19 XKBP-00141

  • XKBP-00141 - WASHER-SPRING
  • Поз.: 19

20 XKBP-00142

  • XKBP-00142 - PIN-STOPPER
  • Поз.: 20

21 XKBP-00026

  • XKBP-00026 - PIN-SNAP
  • Поз.: 21

22 XKBP-00143

  • XKBP-00143 - WIRE ASSY
  • Поз.: 22

23 XKBP-00144

  • XKBP-00144 - PLATE
  • Поз.: 23

24 XKBP-00145

  • XKBP-00145 - BOLT-HEX
  • Поз.: 24

25 XKBP-00146

  • XKBP-00146 - WASHER-SPRING
  • Поз.: 25

26 XKBP-00107

  • XKBP-00107 - NAME PLATE
  • Поз.: 26
