Гусеничные экскаваторы
/
R290LC-7
/
Гидравлическая система
/

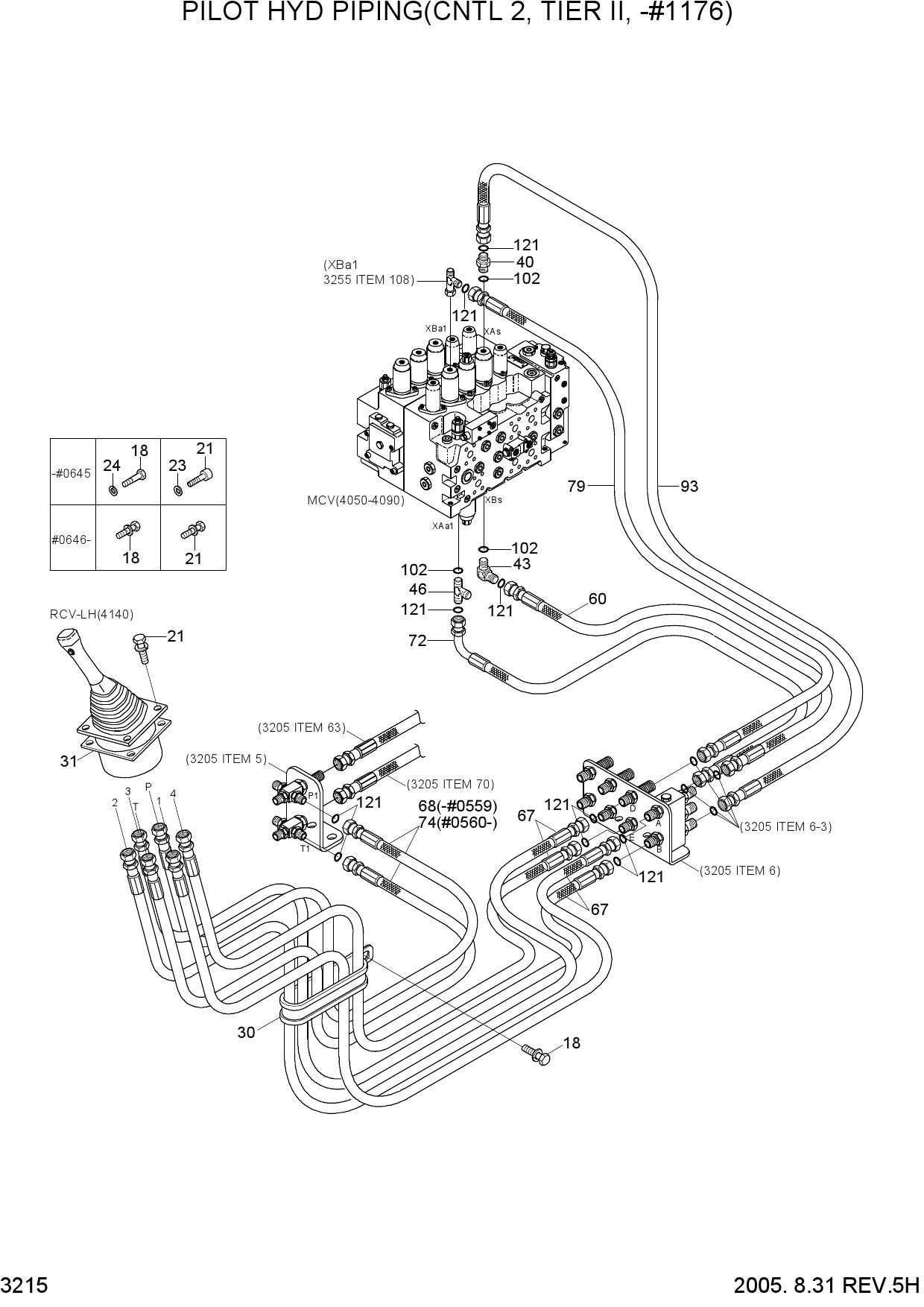

PILOT HYD PIPING(CNTL 2,TIER II,-#1176)

PILOT HYD PIPING(CNTL 2,TIER II,-#1176)

PILOT HYD PIPING(CNTL 2,TIER II,-#1176)

1 S017-100206

  • S017-100206 - BOLT-HEX
  • Поз.: 18

2 S037-102526

  • S037-102526 - BOLT-W/WASHER
  • Поз.: 18

3 S175-060256

  • S175-060256 - SCREW-SOCKET RD HD
  • Поз.: 21

4 S035-063046

  • S035-063046 - BOLT-W/WASHER
  • Поз.: 21

5 S403-062006

  • S403-062006 - WASHER-PLAIN
  • Поз.: 23

6 S411-100006

  • S411-100006 - WASHER-SPRING
  • Поз.: 24

7 31E7-0310

  • 31E7-0310 - CLAMP-HOSE
  • Поз.: 30

8 31M6-51061

  • 31M6-51061 - SHIM(3.2T)
  • Поз.: 31

9 P010-110003

  • P010-110003 - CONNECTOR
  • Поз.: 40

10 X500-110002

  • X500-110002 - CONNECTOR-ORFS
  • Поз.: 40

11 P020-110002

  • P020-110002 - ELBOW-90
  • Поз.: 43

12 X520-110002

  • X520-110002 - ELBOW-90
  • ORFS
  • Поз.: 43

13 P320-060606

  • P320-060606 - TEE-RUN TYPE
  • Поз.: 46

14 X820-065252

  • X820-065252 - TEE-R/TYPE
  • ORFS
  • Поз.: 46

15 P840-062030

  • P840-062030 - HOSE ASSY-SYN THD
  • Поз.: 60

16 X400-062030

  • X400-062030 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 60

17 P850-062041

  • P850-062041 - HOSE ASSY-SYN 0X45
  • Поз.: 67

18 X410-062041

  • X410-062041 - HOSE ASSY-ORFS 0X45
  • Поз.: 67

19 P850-062028

  • P850-062028 - HOSE ASSY-SYN 0X45
  • Поз.: 68

20 P860-062032

  • P860-062032 - HOSE ASSY-SYN 0X90
  • Поз.: 72

21 X420-062032

  • X420-062032 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 72

22 P850-062024

  • P850-062024 - HOSE ASSY-SYN 0X45
  • Поз.: 74

23 X410-062024

  • X410-062024 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 74

24 P920-062026

  • P920-062026 - HOSE ASSY-ORFS 0X45
  • Поз.: 74

25 P860-062040

  • P860-062040 - HOSE ASSY-SYN 0X90
  • Поз.: 79

26 X420-062040

  • X420-062040 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 79

27 P840-062037

  • P840-062037 - HOSE ASSY-SYN THD
  • Поз.: 93

28 X400-062037

  • X400-062037 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 93

29 S631-014004

  • S631-014004 - O-RING
  • Поз.: 102

30 S621-012001

  • S621-012001 - O-RING
  • Поз.: 121
