R290LC-7
/
Гидравлическая система
/

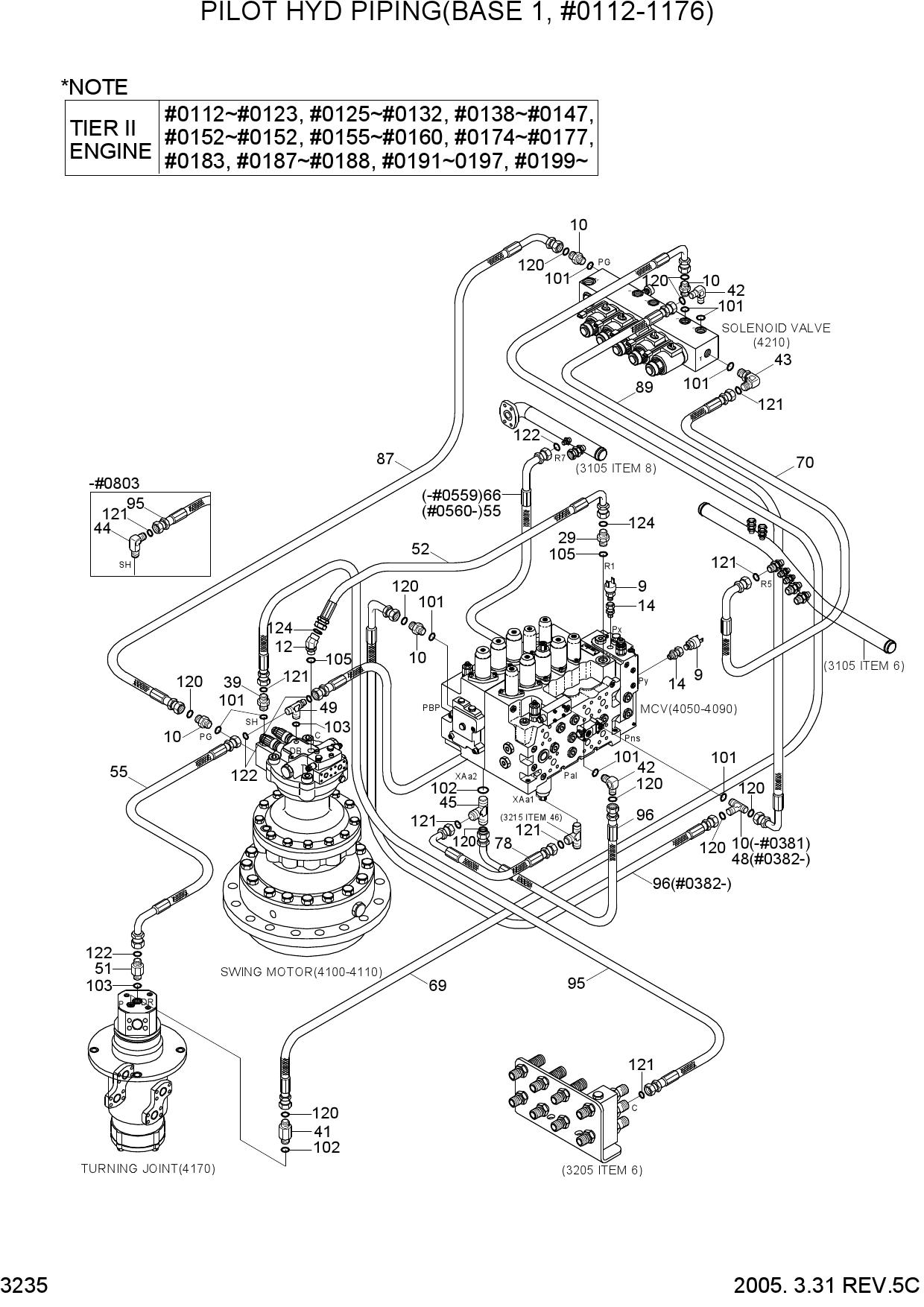

PILOT HYD PIPING(BASE 1, #0112-1176)

PILOT HYD PIPING(BASE 1, #0112-1176)

PILOT HYD PIPING(BASE 1, #0112-1176)

1 31E5-40500

  • 31E5-40500 - SWITCH-PRESSURE
  • Поз.: 9

2 P010-110002

  • P010-110002 - CONNECTOR
  • Поз.: 10

3 P010-110002

  • P010-110002 - CONNECTOR
  • Поз.: 10

4 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 10

5 P030-110005

  • P030-110005 - ELBOW-45
  • Поз.: 12

6 X530-110005

  • X530-110005 - ELBOW-45
  • ORFS
  • Поз.: 12

7 31E5-11110

  • 31E5-11110 - ADAPTER
  • Поз.: 14

8 P010-110006

  • P010-110006 - CONNECTOR
  • Поз.: 29

9 X500-110005

  • X500-110005 - CONNECTOR-ORFS
  • Поз.: 29

10 X500-110011

  • X500-110011 - CONNECTOR-ORFS
  • Поз.: 39

11 P101-106044

  • P101-106044 - CONNECTOR-LONG
  • Поз.: 41

12 X511-106514

  • X511-106514 - CONNECTOR-LONG
  • ORFS
  • Поз.: 41

13 P020-110001

  • P020-110001 - ELBOW-90
  • Поз.: 42

14 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 42

15 P020-110002

  • P020-110002 - ELBOW-90
  • Поз.: 43

16 X520-110002

  • X520-110002 - ELBOW-90
  • ORFS
  • Поз.: 43

17 P020-110011

  • P020-110011 - ELBOW-90
  • Поз.: 44

18 X520-110011

  • X520-110011 - ELBOW-90
  • ORFS
  • Поз.: 44

19 P320-060604

  • P320-060604 - TEE-RUN TYPE
  • Поз.: 45

20 X820-065251

  • X820-065251 - TEE-R/TYPE
  • ORFS
  • Поз.: 45

21 P320-040404

  • P320-040404 - TEE-RUN TYPE
  • Поз.: 48

22 X820-045151

  • X820-045151 - TEE-R/TYPE
  • ORFS
  • Поз.: 48

23 P320-080808

  • P320-080808 - TEE-RUN TYPE
  • Поз.: 49

24 X820-085353

  • X820-085353 - TEE-R/TYPE
  • ORFS
  • Поз.: 49

25 P101-108084

  • P101-108084 - CONNECTOR-LONG
  • Поз.: 51

26 X511-108534

  • X511-108534 - CONNECTOR-LONG
  • ORFS
  • Поз.: 51

27 P620-162015

  • P620-162015 - HOSE ASSY-THD 0X90
  • Поз.: 52

28 P930-162015

  • P930-162015 - HOSE ASSY-ORFS 0X90
  • Поз.: 52

29 P620-082018

  • P620-082018 - HOSE ASSY-THD 0X90
  • Поз.: 55

30 P620-082020

  • P620-082020 - HOSE ASSY-THD 0X90
  • Поз.: 55

31 P930-082020

  • P930-082020 - HOSE ASSY-ORFS 0X90
  • Поз.: 55

32 P620-082025

  • P620-082025 - HOSE ASSY-THD 0X90
  • Поз.: 66

33 P860-042062

  • P860-042062 - HOSE ASSY-SYN 0X90
  • Поз.: 69

34 X420-042062

  • X420-042062 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 69

35 P860-062041

  • P860-062041 - HOSE ASSY-SYN 0X90
  • Поз.: 70

36 X420-062041

  • X420-062041 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 70

37 P860-062010

  • P860-062010 - HOSE ASSY-SYN 0X90
  • Поз.: 78

38 X420-062010

  • X420-062010 - HOSE ASSY-ORFS 0X90
  • Поз.: 78

39 P860-042054

  • P860-042054 - HOSE ASSY-SYN 0X90
  • Поз.: 87

40 X420-042054

  • X420-042054 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 87

41 P860-042046

  • P860-042046 - HOSE ASSY-SYN 0X90
  • Поз.: 89

42 X420-042046

  • X420-042046 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 89

43 P840-062040

  • P840-062040 - HOSE ASSY-SYN THD
  • Поз.: 95

44 X400-062040

  • X400-062040 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 95

45 P860-042013

  • P860-042013 - HOSE ASSY-SYN 0X90
  • Поз.: 96

46 P860-042013

  • P860-042013 - HOSE ASSY-SYN 0X90
  • Поз.: 96

47 X420-042013

  • X420-042013 - HOSE ASSY-ORFS 0X90
  • Поз.: 96

48 S631-011004

  • S631-011004 - O-RING
  • Поз.: 101

49 S631-014004

  • S631-014004 - O-RING
  • Поз.: 102

50 S631-018004

  • S631-018004 - O-RING
  • Поз.: 103

51 S631-029004

  • S631-029004 - O-RING
  • Поз.: 105

52 S621-011001

  • S621-011001 - O-RING
  • Поз.: 120

53 S621-012001

  • S621-012001 - O-RING
  • Поз.: 121

54 S621-014001

  • S621-014001 - O-RING
  • Поз.: 122

55 S621-021001

  • S621-021001 - O-RING
  • Поз.: 124
