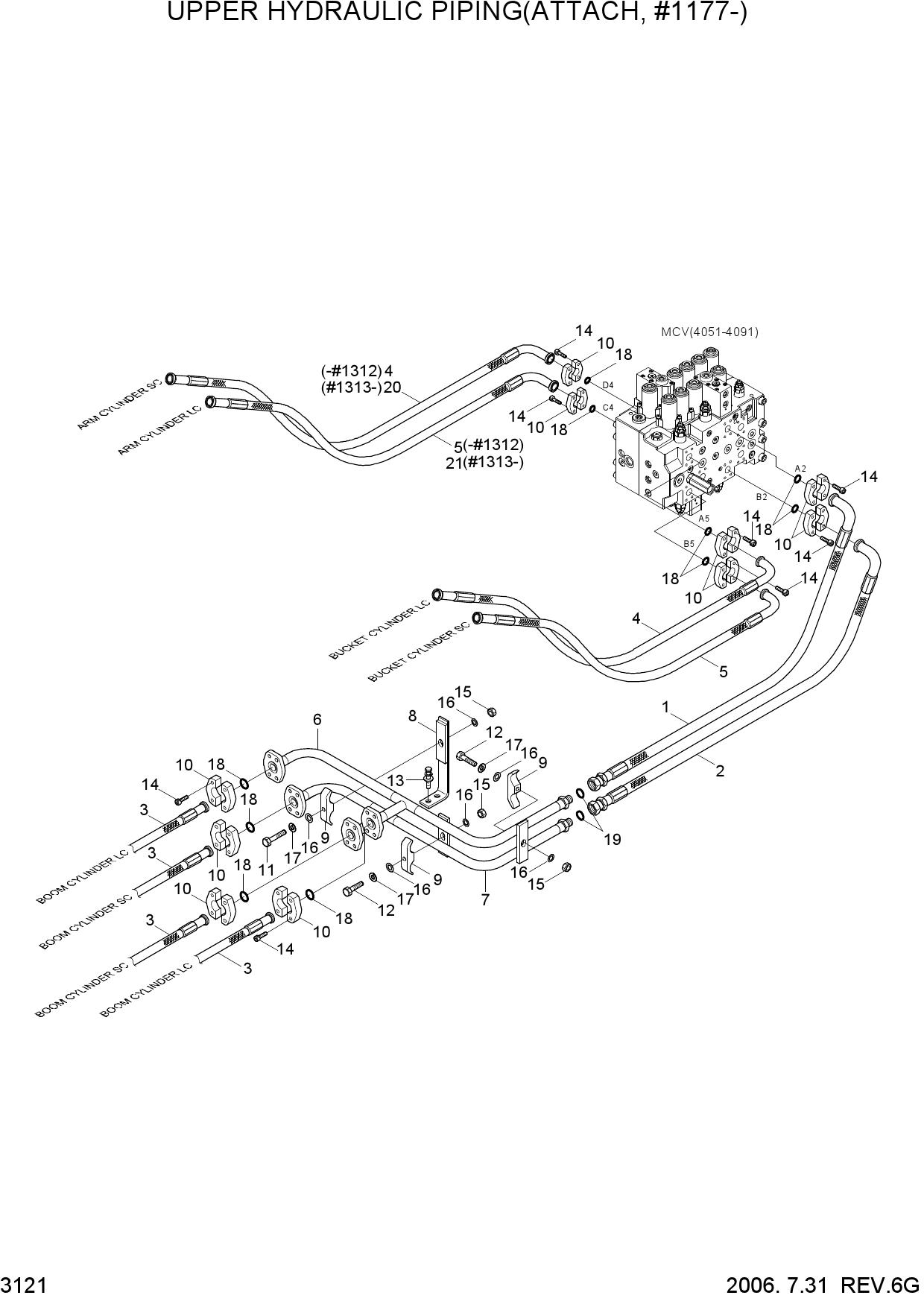

UPPER HYDRAULIC PIPING(ATTACH, #1177-)

UPPER HYDRAULIC PIPING(ATTACH, #1177-)

UPPER HYDRAULIC PIPING(ATTACH, #1177-)

1 31N8-12291

  • 31N8-12291 - HOSE ASSY-ORFS
  • 0X90
  • Поз.: 1

2 31N8-12231

  • 31N8-12231 - HOSE ASSY-ORFS
  • Поз.: 2

3 31N8-12540

  • 31N8-12540 - HOSE ASSY-FLG
  • 0X0
  • Поз.: 3

4 31N8-12590

  • 31N8-12590 - HOSE ASSY-FLGXFLG
  • 0X90
  • Поз.: 4

5 31N8-12590

  • 31N8-12590 - HOSE ASSY-FLGXFLG
  • 0X90
  • Поз.: 4

6 31N8-12600

  • 31N8-12600 - HOSE ASSY-FLGXFLG
  • 0X90
  • Поз.: 5

7 31N8-12600

  • 31N8-12600 - HOSE ASSY-FLGXFLG
  • 0X90
  • Поз.: 5

8 31N8-16270

  • 31N8-16270 - PIPE WA
  • Поз.: 6

9 31N8-16280

  • 31N8-16280 - PIPE WA
  • Поз.: 7

10 31N8-12510

  • 31N8-12510 - BRACKET
  • Поз.: 8

11 31EM-12170

  • 31EM-12170 - CLAMP-PIPE
  • Поз.: 9

12 P173-160104

  • P173-160104 - FLANGE-HYD
  • SPLIT
  • Поз.: 10

13 S017-100852

  • S017-100852 - BOLT-HEX
  • Поз.: 11

14 S017-100702

  • S017-100702 - BOLT-HEX
  • Поз.: 12

15 S037-103022

  • S037-103022 - BOLT-W/WASHER
  • Поз.: 13

16 S109-100306

  • S109-100306 - BOLT-SOCKET
  • Поз.: 14

17 S205-101002

  • S205-101002 - NUT-HEX
  • Поз.: 15

18 S403-102002

  • S403-102002 - WASHER-PLAIN
  • Поз.: 16

19 S411-100002

  • S411-100002 - WASHER-SPRING
  • Поз.: 17

20 Y171-024004

  • Y171-024004 - O-RING
  • Поз.: 18

21 S621-021001

  • S621-021001 - O-RING
  • Поз.: 19

22 31N8-12790

  • 31N8-12790 - HOSE ASSY
  • Поз.: 20

23 31N8-12800

  • 31N8-12800 - HOSE ASSY
  • Поз.: 21
