R290LC-7
/
Гидравлическая система
/

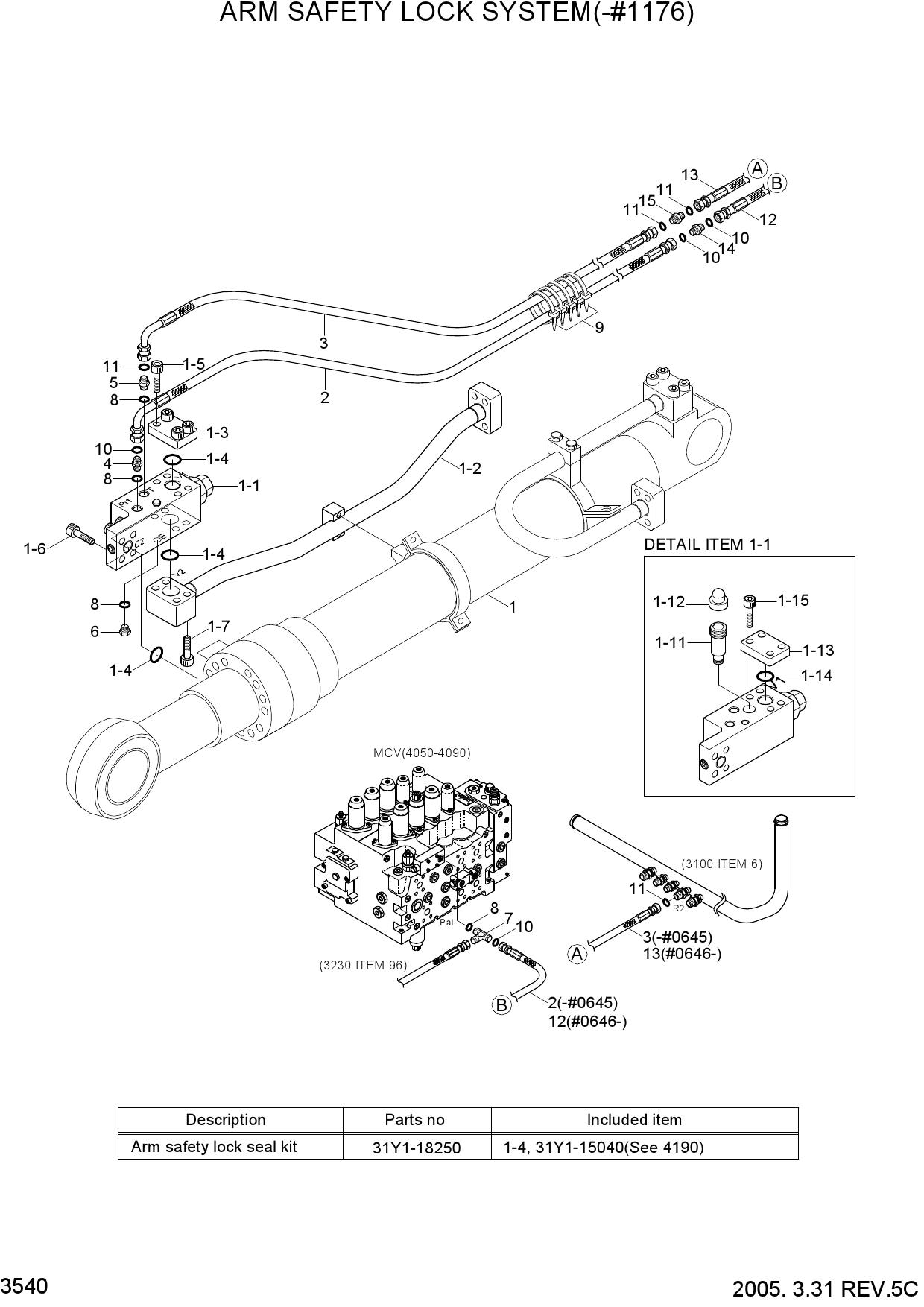

ARM SAFETY LOCK SYSTEM(-#1176)

ARM SAFETY LOCK SYSTEM(-#1176)

ARM SAFETY LOCK SYSTEM(-#1176)

1 31N8-52130

  • 31N8-52130 - ARM CYLINDER ASSY
  • Поз.: 1

2 31N6-90520

  • 31N6-90520 - VALVE-SAFETY LOCK
  • Поз.: 1-1

3 ZTAS-00001

  • ZTAS-00001 - VALVE-RELIEF
  • Поз.: 1-11

4 ZTAS-00002

  • ZTAS-00002 - CAP
  • Поз.: 1-12

5 P184-162112

  • P184-162112 - FLANGE-PLUG SQUARE
  • Поз.: 1-13

6 Y171-024004

  • Y171-024004 - O-RING
  • Поз.: 1-14

7 S109-120406

  • S109-120406 - BOLT-SOCKET
  • Поз.: 1-15

8 ZTAS-00005

  • ZTAS-00005 - SEAL KIT
  • Поз.: 1-16

9 31N8-90630

  • 31N8-90630 - PIPE ASSY
  • Поз.: 1-2

10 P184-162112

  • P184-162112 - FLANGE-PLUG SQUARE
  • Поз.: 1-3

11 S109-120406

  • S109-120406 - BOLT-SOCKET
  • Поз.: 1-5

12 S109-120456

  • S109-120456 - BOLT-SOCKET
  • Поз.: 1-6

13 S109-120606

  • S109-120606 - BOLT-SOCKET
  • Поз.: 1-7

14 P860-042154

  • P860-042154 - HOSE ASSY-SYN 0X90
  • Поз.: 2

15 P930-042112

  • P930-042112 - HOSE ASSY-ORFS 0X90
  • Поз.: 2

16 P860-042231

  • P860-042231 - HOSE ASSY-SYN 0X90
  • Поз.: 2

17 P930-042189

  • P930-042189 - HOSE ASSY-ORFS 0X90
  • Поз.: 2

18 P860-062164

  • P860-062164 - HOSE ASSY-SYN 0X90
  • Поз.: 3

19 P930-062112

  • P930-062112 - HOSE ASSY-ORFS 0X90
  • Поз.: 3

20 P860-062231

  • P860-062231 - HOSE ASSY-SYN 0X90
  • Поз.: 3

21 P930-062179

  • P930-062179 - HOSE ASSY-ORFS 0X90
  • Поз.: 3

22 P010-110002

  • P010-110002 - CONNECTOR
  • Поз.: 4

23 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 4

24 P010-110012

  • P010-110012 - CONNECTOR
  • Поз.: 5

25 X500-110011

  • X500-110011 - CONNECTOR-ORFS
  • Поз.: 5

26 P220-110102

  • P220-110102 - PLUG-HEX
  • Поз.: 6

27 P320-040404

  • P320-040404 - TEE-RUN TYPE
  • Поз.: 7

28 X820-045151

  • X820-045151 - TEE-R/TYPE
  • ORFS
  • Поз.: 7

29 S631-140001

  • S631-140001 - O-RING
  • Поз.: 8

30 S552-020102

  • S552-020102 - CLAMP-BAND
  • Поз.: 9

31 S621-011001

  • S621-011001 - O-RING
  • Поз.: 10

32 S621-012001

  • S621-012001 - O-RING
  • Поз.: 11

33 P910-042042

  • P910-042042 - HOSE ASSY-ORFS 0X0
  • Поз.: 12

34 P910-062052

  • P910-062052 - HOSE ASSY-ORFS 0X0
  • Поз.: 13

35 X540-110001

  • X540-110001 - CONNECTOR-ORFS
  • Поз.: 14

36 X540-110002

  • X540-110002 - CONNECTOR-ORFS
  • Поз.: 15
