R290LC-7
/
Гидравлическая система
/

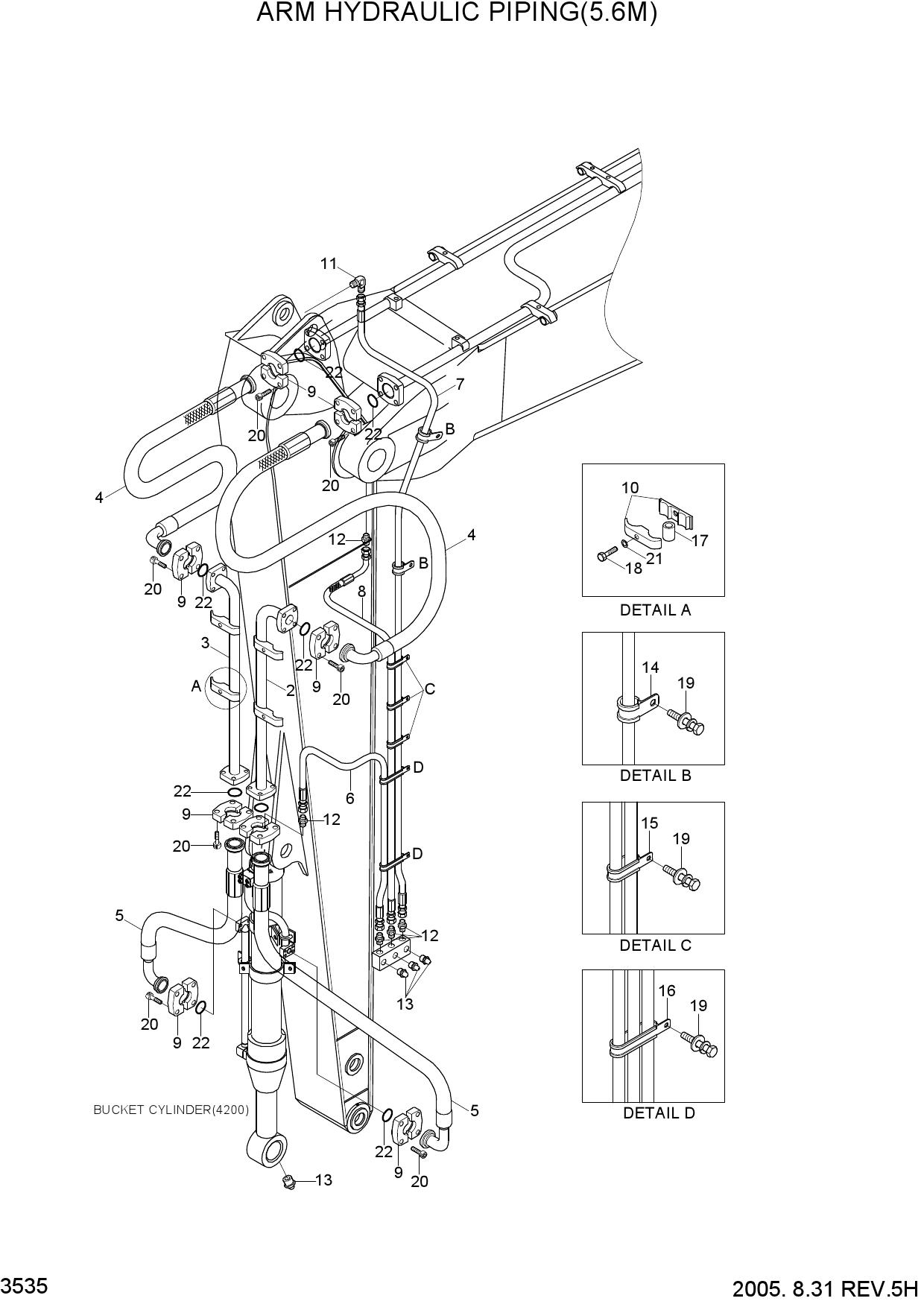

ARM HYDRAULIC PIPING(5.6M)

ARM HYDRAULIC PIPING(5.6M)

ARM HYDRAULIC PIPING(5.6M)

1 31N8-60500

  • 31N8-60500 - PIPE ASSY
  • Поз.: 2

2 31N8-60510

  • 31N8-60510 - PIPE ASSY
  • Поз.: 3

3 P703-127337

  • P703-127337 - HOSE ASSY-FLG 0X90
  • Поз.: 4

4 31N8-60520

  • 31N8-60520 - HOSE ASSY
  • Поз.: 4

5 P703-127324

  • P703-127324 - HOSE ASSY-FLG 0X90
  • Поз.: 5

6 31N8-60530

  • 31N8-60530 - HOSE ASSY
  • Поз.: 5

7 P840-042040

  • P840-042040 - HOSE ASSY-SYN THD
  • Поз.: 6

8 P840-042107

  • P840-042107 - HOSE ASSY-SYN THD
  • Поз.: 7

9 P860-042087

  • P860-042087 - HOSE ASSY-SYN 0X90
  • Поз.: 8

10 P173-120102

  • P173-120102 - FLANGE-HYD
  • SPLIT
  • Поз.: 9

11 31N4-12200

  • 31N4-12200 - CLAMP-PIPE
  • Поз.: 10

12 31NB-50280

  • 31NB-50280 - ELBOW-90
  • Поз.: 11

13 P010-430011

  • P010-430011 - CONNECTOR
  • Поз.: 12

14 S651-810002

  • S651-810002 - NIPPLE-GREASE
  • Поз.: 13

15 31N8-50370

  • 31N8-50370 - CLAMP-HOSE
  • Поз.: 14

16 31N8-50380

  • 31N8-50380 - CLAMP-HOSE
  • Поз.: 15

17 31N8-50390

  • 31N8-50390 - CLAMP-HOSE
  • Поз.: 16

18 31N5-50220

  • 31N5-50220 - SPACER-PIPE
  • Поз.: 17

19 S017-160702

  • S017-160702 - BOLT-HEX
  • Поз.: 18

20 S035-062022

  • S035-062022 - BOLT-W/WASHER
  • Поз.: 19

21 S109-100356

  • S109-100356 - BOLT-SOCKET
  • Поз.: 20

22 S411-160002

  • S411-160002 - WASHER-SPRING
  • Поз.: 21

23 Y171-019004

  • Y171-019004 - O-RING
  • Поз.: 22
