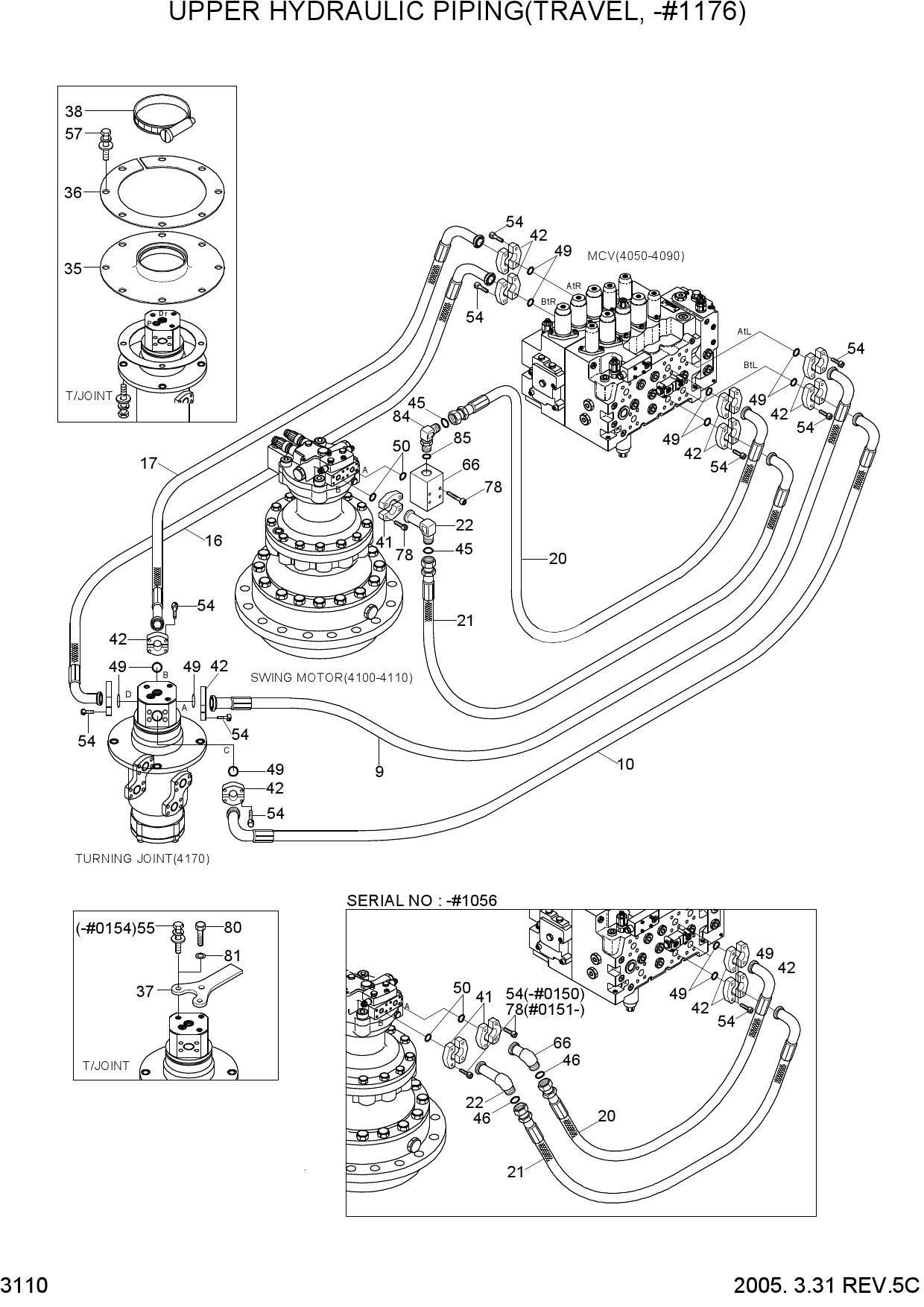

UPPER HYDRAULIC PIPING(TRAVEL, -#1176)

UPPER HYDRAULIC PIPING(TRAVEL, -#1176)

UPPER HYDRAULIC PIPING(TRAVEL, -#1176)

1 31N8-12500

  • 31N8-12500 - HOSE ASSY-ORFSXFLG
  • Поз.: 9

2 31N8-12501

  • 31N8-12501 - HOSE ASSY-FLG
  • Поз.: 9

3 31N8-12490

  • 31N8-12490 - HOSE ASSY-ORFSXFLG
  • Поз.: 10

4 31N8-12491

  • 31N8-12491 - HOSE ASSY-FLG
  • Поз.: 10

5 31N8-12440

  • 31N8-12440 - HOSE ASSY-FLGXFLG
  • Поз.: 16

6 31N8-12441

  • 31N8-12441 - HOSE ASSY-FLGXFLG
  • Поз.: 16

7 31N8-12450

  • 31N8-12450 - HOSE ASSY-FLGXFLG
  • Поз.: 17

8 31N8-12451

  • 31N8-12451 - HOSE ASSY-FLGXFLG
  • Поз.: 17

9 31N8-12251

  • 31N8-12251 - HOSE ASSY-FLG
  • Поз.: 20

10 31N8-12252

  • 31N8-12252 - HOSE ASSY-ORFSXFLG
  • 0X90
  • Поз.: 20

11 31N8-12261

  • 31N8-12261 - HOSE ASSY-FLG
  • Поз.: 21

12 31N8-12262

  • 31N8-12262 - HOSE ASSY-ORFSXFLG
  • 0X90
  • Поз.: 21

13 31N8-12310

  • 31N8-12310 - ELBOW-ORFS
  • Поз.: 22

14 31N8-12311

  • 31N8-12311 - ELBOW-ORFS
  • Поз.: 22

15 31N8-11312

  • 31N8-11312 - ELBOW-90
  • Поз.: 22

16 31N8-16210

  • 31N8-16210 - ELBOW-90
  • FLANGE
  • Поз.: 22

17 31N1-40941

  • 31N1-40941 - RUBBER-T/JOINT
  • Поз.: 35

18 31N1-40951

  • 31N1-40951 - COVER-T/JOINT
  • Поз.: 36

19 31N1-40960

  • 31N1-40960 - BRACKET-T/JOINT
  • Поз.: 37

20 31N1-40961

  • 31N1-40961 - BRACKET-T/JOINT
  • Поз.: 37

21 S520-130000

  • S520-130000 - CLAMP-HOSE
  • Поз.: 38

22 P173-120102

  • P173-120102 - FLANGE-HYD
  • SPLIT
  • Поз.: 41

23 P173-120102

  • P173-120102 - FLANGE-HYD
  • SPLIT
  • Поз.: 41

24 P173-160104

  • P173-160104 - FLANGE-HYD
  • SPLIT
  • Поз.: 42

25 S621-021001

  • S621-021001 - O-RING
  • Поз.: 45

26 S621-018001

  • S621-018001 - O-RING
  • Поз.: 46

27 Y171-024004

  • Y171-024004 - O-RING
  • Поз.: 49

28 Y171-019004

  • Y171-019004 - O-RING
  • Поз.: 50

29 S109-100306

  • S109-100306 - BOLT-SOCKET
  • Поз.: 54

30 S109-100306

  • S109-100306 - BOLT-SOCKET
  • Поз.: 54

31 S037-102522

  • S037-102522 - BOLT-W/WASHER
  • Поз.: 55

32 S037-102022

  • S037-102022 - BOLT-W/WASHER
  • Поз.: 57

33 31N8-12520

  • 31N8-12520 - ELBOW-ORFS
  • Поз.: 66

34 31N8-12521

  • 31N8-12521 - ELBOW-ORFS
  • Поз.: 66

35 31N8-11322

  • 31N8-11322 - ELBOW-90
  • ORFS
  • Поз.: 66

36 31N8-16220

  • 31N8-16220 - FLANGE
  • Поз.: 66

37 S109-100706

  • S109-100706 - BOLT-SOCKET
  • Поз.: 78

38 S017-140302

  • S017-140302 - BOLT-HEX
  • Поз.: 80

39 S411-140002

  • S411-140002 - WASHER-SPRING
  • Поз.: 81

40 X520-110005

  • X520-110005 - ELBOW-90
  • ORFS
  • Поз.: 84

41 S631-029004

  • S631-029004 - O-RING
  • Поз.: 85
