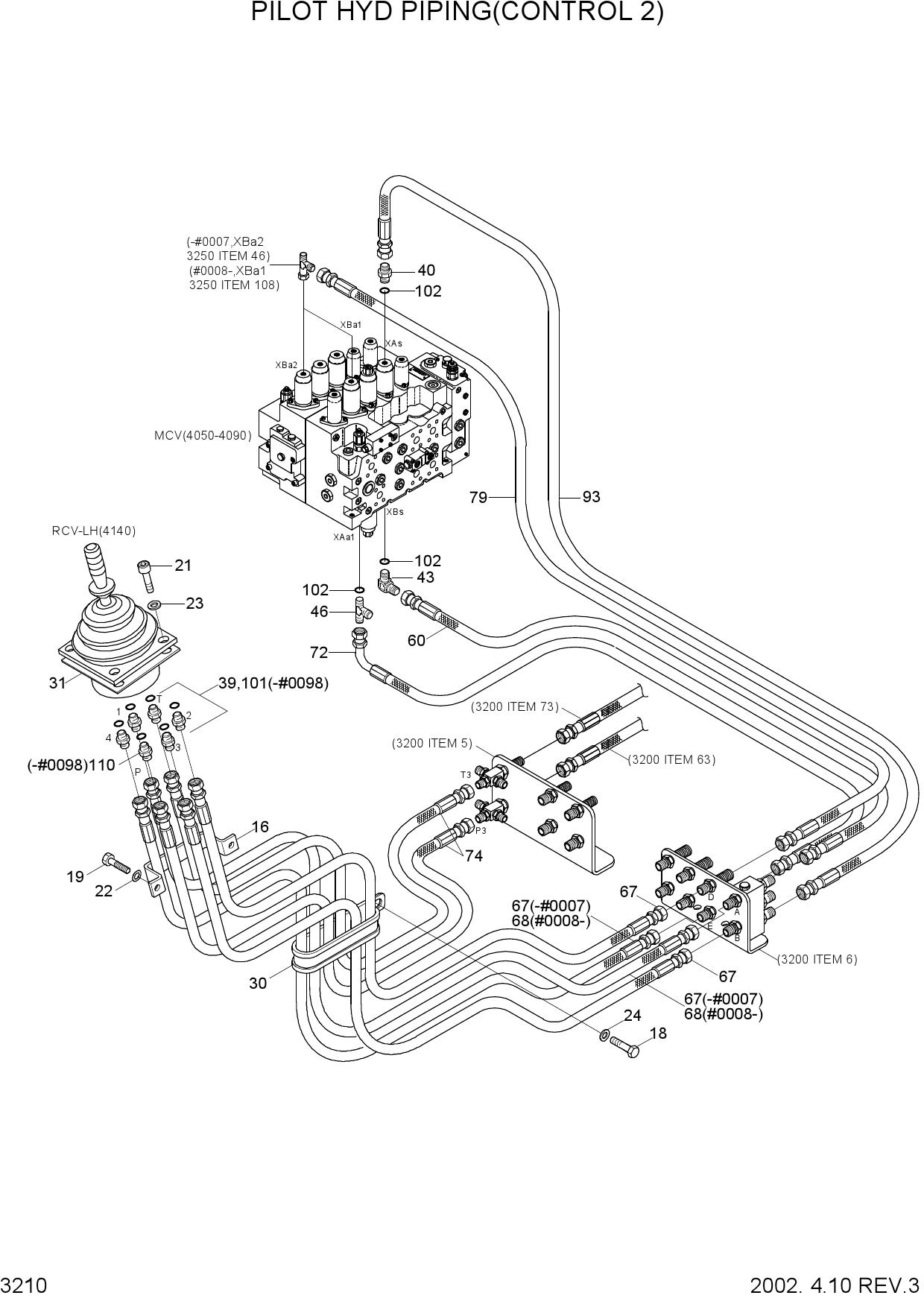

PILOT HYD PIPING(CONTROL 2)

PILOT HYD PIPING(CONTROL 2)

PILOT HYD PIPING(CONTROL 2)

1 31E6-20030

  • 31E6-20030 - CLAMP-HOSE
  • Поз.: 16

2 S017-100206

  • S017-100206 - BOLT-HEX
  • Поз.: 18

3 S017-080206

  • S017-080206 - BOLT-HEX
  • Поз.: 19

4 S175-060256

  • S175-060256 - SCREW-SOCKET RD HD
  • Поз.: 21

5 S403-082006

  • S403-082006 - WASHER-PLAIN
  • Поз.: 22

6 S403-062006

  • S403-062006 - WASHER-PLAIN
  • Поз.: 23

7 S411-100006

  • S411-100006 - WASHER-SPRING
  • Поз.: 24

8 31E7-0310

  • 31E7-0310 - CLAMP-HOSE
  • Поз.: 30

9 31M6-51060

  • 31M6-51060 - SHIM(3.0T)
  • Поз.: 31

10 31M6-51061

  • 31M6-51061 - SHIM(3.2T)
  • Поз.: 31

11 P010-110012

  • P010-110012 - CONNECTOR
  • Поз.: 39

12 P010-110012

  • P010-110012 - CONNECTOR
  • Поз.: 39

13 P010-110003

  • P010-110003 - CONNECTOR
  • Поз.: 40

14 P020-110002

  • P020-110002 - ELBOW-90
  • Поз.: 43

15 P320-060606

  • P320-060606 - TEE-RUN TYPE
  • Поз.: 46

16 P400-062030

  • P400-062030 - HOSE ASSY-COMPACT
  • Поз.: 60

17 P410-062041

  • P410-062041 - HOSE ASSY-COMP 0X45
  • Поз.: 67

18 P410-062041

  • P410-062041 - HOSE ASSY-COMP 0X45
  • Поз.: 67

19 P410-062042

  • P410-062042 - HOSE ASSY-COMP 0X45
  • Поз.: 68

20 P420-062032

  • P420-062032 - HOSE ASSY-COMP 0X90
  • Поз.: 72

21 P410-062046

  • P410-062046 - HOSE ASSY-COMP 0X45
  • Поз.: 74

22 P420-062040

  • P420-062040 - HOSE ASSY-COMP 0X90
  • Поз.: 79

23 P400-062037

  • P400-062037 - HOSE ASSY-COMPACT
  • Поз.: 93

24 S631-011004

  • S631-011004 - O-RING
  • Поз.: 101

25 S631-014004

  • S631-014004 - O-RING
  • Поз.: 102

26 31EK-20110

  • 31EK-20110 - FILTER-LAST GUARD
  • Поз.: 110
