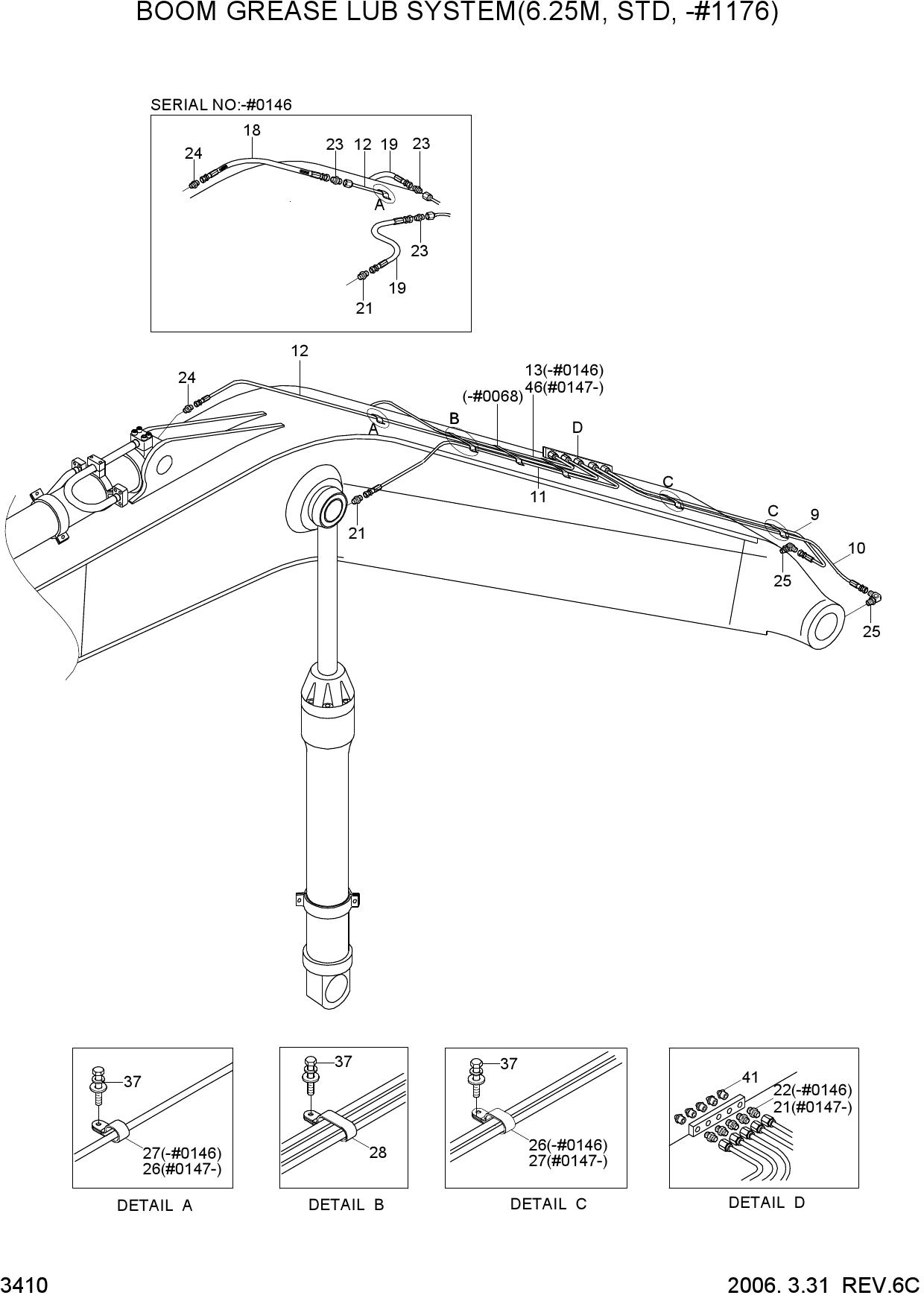

BOOM GREASE LUB SYSTEM(6.25M,STD,-#1176)

BOOM GREASE LUB SYSTEM(6.25M,STD,-#1176)

BOOM GREASE LUB SYSTEM(6.25M,STD,-#1176)

1 31N8-50160

  • 31N8-50160 - PIPE ASSY
  • Поз.: 9

2 31N8-50161

  • 31N8-50161 - PIPE ASSY
  • Поз.: 9

3 P840-042024

  • P840-042024 - HOSE ASSY-SYN THD
  • Поз.: 9

4 31N8-50170

  • 31N8-50170 - PIPE ASSY
  • Поз.: 10

5 31N8-50171

  • 31N8-50171 - PIPE ASSY
  • Поз.: 10

6 P840-042026

  • P840-042026 - HOSE ASSY-SYN THD
  • Поз.: 10

7 31N8-50141

  • 31N8-50141 - PIPE ASSY
  • Поз.: 11

8 P840-042051

  • P840-042051 - HOSE ASSY-SYN THD
  • Поз.: 11

9 31N8-50180

  • 31N8-50180 - PIPE ASSY
  • Поз.: 12

10 P840-042062

  • P840-042062 - HOSE ASSY-SYN THD
  • Поз.: 12

11 31N8-50151

  • 31N8-50151 - PIPE ASSY
  • Поз.: 13

12 P400-042011

  • P400-042011 - HOSE ASSY-COMPACT
  • Поз.: 18

13 P400-042021

  • P400-042021 - HOSE ASSY-COMPACT
  • Поз.: 19

14 P010-430011

  • P010-430011 - CONNECTOR
  • Поз.: 21

15 P010-430011

  • P010-430011 - CONNECTOR
  • Поз.: 21

16 E131-0625

  • E131-0625 - CONNECTOR
  • Поз.: 22

17 E131-0626

  • E131-0626 - CONNECTOR
  • Поз.: 23

18 E231-0207

  • E231-0207 - ELBOW-45
  • Поз.: 24

19 E231-0349

  • E231-0349 - ELBOW-90
  • Поз.: 25

20 61E7-0059

  • 61E7-0059 - ELBOW-90
  • Поз.: 25

21 31NB-50280

  • 31NB-50280 - ELBOW-90
  • Поз.: 25

22 31E9-0078

  • 31E9-0078 - CLAMP-PIPE
  • Поз.: 26

23 31N6-50230

  • 31N6-50230 - CLAMP-PIPE
  • Поз.: 26

24 31N8-50370

  • 31N8-50370 - CLAMP-HOSE
  • Поз.: 26

25 31E9-0079

  • 31E9-0079 - CLAMP-PIPE
  • Поз.: 27

26 S541-080002

  • S541-080002 - CLAMP-TUBE
  • Поз.: 27

27 31N8-50380

  • 31N8-50380 - CLAMP-HOSE
  • Поз.: 27

28 31E9-0125

  • 31E9-0125 - CLAMP-PIPE
  • Поз.: 28

29 31E9-0125

  • 31E9-0125 - CLAMP-PIPE
  • Поз.: 28

30 31N8-50390

  • 31N8-50390 - CLAMP-HOSE
  • Поз.: 28

31 31N8-50390

  • 31N8-50390 - CLAMP-HOSE
  • Поз.: 28

32 S035-061622

  • S035-061622 - BOLT-W/WASHER
  • Поз.: 37

33 S035-062022

  • S035-062022 - BOLT-W/WASHER
  • Поз.: 37

34 S035-062022

  • S035-062022 - BOLT-W/WASHER
  • Поз.: 37

35 S035-062022

  • S035-062022 - BOLT-W/WASHER
  • Поз.: 37

36 S035-062022

  • S035-062022 - BOLT-W/WASHER
  • Поз.: 37

37 S035-102522

  • S035-102522 - BOLT-W/WASHER
  • Поз.: 38

38 S651-810002

  • S651-810002 - NIPPLE-GREASE
  • Поз.: 41

39 31E6-0211

  • 31E6-0211 - PAD-RUBBER
  • Поз.: 43

40 31E6-0211

  • 31E6-0211 - PAD-RUBBER
  • Поз.: 43

41 31E6-0212

  • 31E6-0212 - PAD-RUBBER
  • Поз.: 44

42 P840-042053

  • P840-042053 - HOSE ASSY-SYN THD
  • Поз.: 46
