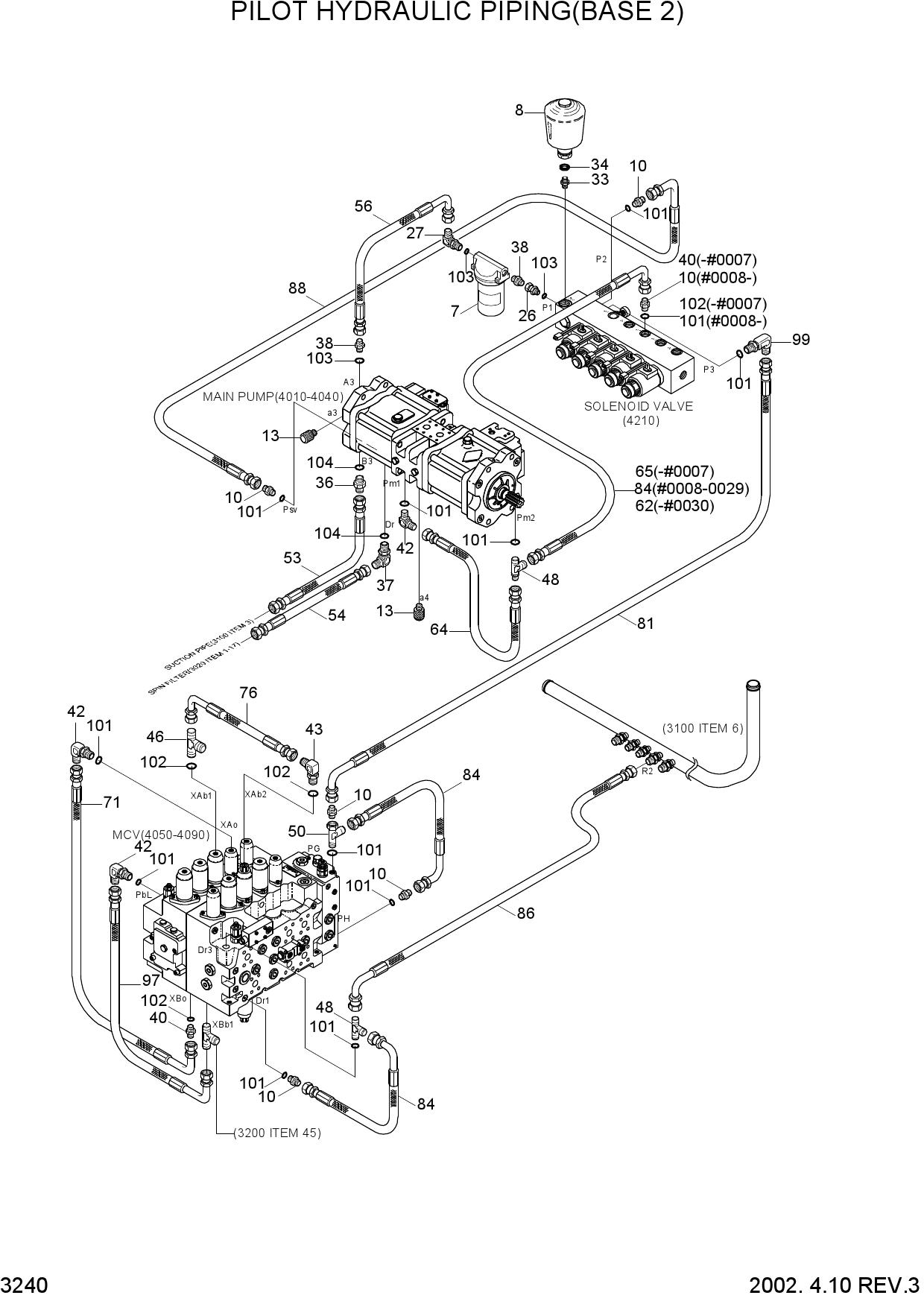

PILOT HYDRAULIC PIPING(BASE 2, -#0111)

PILOT HYDRAULIC PIPING(BASE 2, -#0111)

PILOT HYDRAULIC PIPING(BASE 2, -#0111)

1 31E3-0017

  • 31E3-0017 - FILTER-LINE
  • Поз.: 7

2 31E3-0018

  • 31E3-0018 - ELEMENT-LINE FILTER
  • Поз.: 7-1

3 31E3-3187

  • 31E3-3187 - ACCUMULATOR
  • Поз.: 8

4 P010-110002

  • P010-110002 - CONNECTOR
  • Поз.: 10

5 P010-110002

  • P010-110002 - CONNECTOR
  • Поз.: 11

6 31EK-11130

  • 31EK-11130 - COUPLING-SCREW
  • Поз.: 13

7 31EM-20160

  • 31EM-20160 - ADAPTER
  • Поз.: 26

8 P020-110003

  • P020-110003 - ELBOW-90
  • Поз.: 27

9 31E9-20060

  • 31E9-20060 - FITTING
  • Поз.: 33

10 P391-080000

  • P391-080000 - WASHER-COPPER
  • Поз.: 34

11 P010-110005

  • P010-110005 - CONNECTOR
  • Поз.: 36

12 P020-110004

  • P020-110004 - ELBOW-90
  • Поз.: 37

13 P010-110004

  • P010-110004 - CONNECTOR
  • Поз.: 38

14 P010-110003

  • P010-110003 - CONNECTOR
  • Поз.: 40

15 P010-110003

  • P010-110003 - CONNECTOR
  • Поз.: 40

16 P020-110001

  • P020-110001 - ELBOW-90
  • Поз.: 42

17 P020-110002

  • P020-110002 - ELBOW-90
  • Поз.: 43

18 P320-060606

  • P320-060606 - TEE-RUN TYPE
  • Поз.: 46

19 P320-040404

  • P320-040404 - TEE-RUN TYPE
  • Поз.: 48

20 32E6-10460

  • 32E6-10460 - TEE-SWEVEL NUT
  • Поз.: 50

21 P610-122012

  • P610-122012 - HOSE ASSY-THD 0X45
  • Поз.: 53

22 P620-122016

  • P620-122016 - HOSE ASSY-THD 0X90
  • Поз.: 54

23 P620-082013

  • P620-082013 - HOSE ASSY-THD 0X90
  • Поз.: 56

24 P620-082016

  • P620-082016 - HOSE ASSY-THD 0X90
  • Поз.: 56

25 P620-082018

  • P620-082018 - HOSE ASSY-THD 0X90
  • Поз.: 56

26 P420-042009

  • P420-042009 - HOSE ASSY-COMP 0X90
  • Поз.: 62

27 P400-042009

  • P400-042009 - HOSE ASSY-COMPACT
  • Поз.: 64

28 P400-042008

  • P400-042008 - HOSE ASSY-COMPACT
  • Поз.: 65

29 P420-062018

  • P420-062018 - HOSE ASSY-COMPACT
  • Поз.: 71

30 P420-062014

  • P420-062014 - HOSE ASSY-COMP 0X90
  • Поз.: 76

31 P420-042053

  • P420-042053 - HOSE ASSY-COMP 0X90
  • Поз.: 81

32 P420-042008

  • P420-042008 - HOSE ASSY-COMP 0X90
  • Поз.: 84

33 P420-042008

  • P420-042008 - HOSE ASSY-COMP 0X90
  • Поз.: 84

34 P420-042008

  • P420-042008 - HOSE ASSY-COMP 0X90
  • Поз.: 84

35 P420-042015

  • P420-042015 - HOSE ASSY-COMP 0X90
  • Поз.: 86

36 P420-042011

  • P420-042011 - HOSE ASSY-COMP 0X90
  • Поз.: 88

37 P420-042012

  • P420-042012 - HOSE ASSY-COMP 0X90
  • Поз.: 88

38 P620-042016

  • P620-042016 - HOSE ASSY-THD 0X90
  • Поз.: 97

39 P420-042016

  • P420-042016 - HOSE ASSY-COMP 0X90
  • Поз.: 97

40 E131-0603

  • E131-0603 - ELBOW 90-LONG
  • Поз.: 99

41 S631-011004

  • S631-011004 - O-RING
  • Поз.: 101

42 S631-014004

  • S631-014004 - O-RING
  • Поз.: 102

43 S631-014004

  • S631-014004 - O-RING
  • Поз.: 102

44 S631-018004

  • S631-018004 - O-RING
  • Поз.: 103

45 S631-024004

  • S631-024004 - O-RING
  • Поз.: 104
