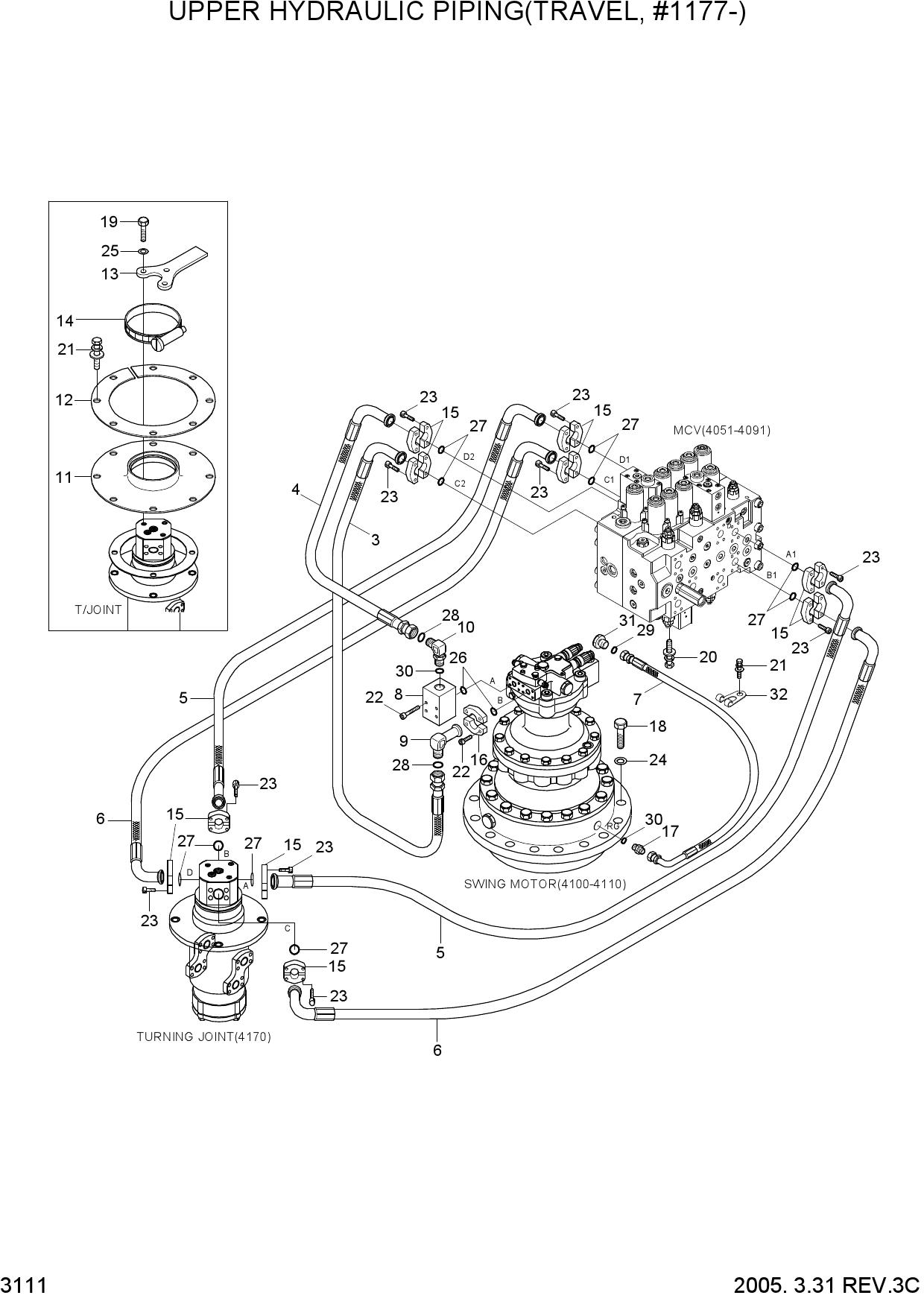

UPPER HYDRAULIC PIPING(TRAVEL, #1177-)

UPPER HYDRAULIC PIPING(TRAVEL, #1177-)

UPPER HYDRAULIC PIPING(TRAVEL, #1177-)

1 31N8-16230

  • 31N8-16230 - HOSE ASSY-ORFS
  • 0X90
  • Поз.: 3

2 31N8-16240

  • 31N8-16240 - HOSE ASSY-ORFS
  • 0X90
  • Поз.: 4

3 31N8-12441

  • 31N8-12441 - HOSE ASSY-FLGXFLG
  • Поз.: 5

4 31N8-12451

  • 31N8-12451 - HOSE ASSY-FLGXFLG
  • Поз.: 6

5 P930-062014

  • P930-062014 - HOSE ASSY-ORFS 0X90
  • Поз.: 7

6 31N8-16220

  • 31N8-16220 - FLANGE
  • Поз.: 8

7 31N8-16210

  • 31N8-16210 - ELBOW-90
  • FLANGE
  • Поз.: 9

8 X520-110005

  • X520-110005 - ELBOW-90
  • ORFS
  • Поз.: 10

9 31N1-40941

  • 31N1-40941 - RUBBER-T/JOINT
  • Поз.: 11

10 31N1-40951

  • 31N1-40951 - COVER-T/JOINT
  • Поз.: 12

11 31N1-40961

  • 31N1-40961 - BRACKET-T/JOINT
  • Поз.: 13

12 S520-130000

  • S520-130000 - CLAMP-HOSE
  • Поз.: 14

13 P173-160104

  • P173-160104 - FLANGE-HYD
  • SPLIT
  • Поз.: 15

14 P173-120102

  • P173-120102 - FLANGE-HYD
  • SPLIT
  • Поз.: 16

15 31N7-12400

  • 31N7-12400 - CONNECTOR-ORFS
  • Поз.: 17

16 S017-20075A

  • S017-20075A - BOLT-HEX
  • Поз.: 18

17 S017-140302

  • S017-140302 - BOLT-HEX
  • Поз.: 19

18 S037-123522

  • S037-123522 - BOLT-W/WASHER
  • Поз.: 20

19 S037-102022

  • S037-102022 - BOLT-W/WASHER
  • Поз.: 21

20 S109-100706

  • S109-100706 - BOLT-SOCKET
  • Поз.: 22

21 S109-100306

  • S109-100306 - BOLT-SOCKET
  • Поз.: 23

22 S441-200002

  • S441-200002 - WASHER-HARDENED
  • Поз.: 24

23 S411-140002

  • S411-140002 - WASHER-SPRING
  • Поз.: 25

24 Y171-019004

  • Y171-019004 - O-RING
  • Поз.: 26

25 Y171-024004

  • Y171-024004 - O-RING
  • Поз.: 27

26 S621-021001

  • S621-021001 - O-RING
  • Поз.: 28

27 S621-012001

  • S621-012001 - O-RING
  • Поз.: 29

28 S631-029004

  • S631-029004 - O-RING
  • Поз.: 30

29 X700-100103

  • X700-100103 - PLUG-ORFS
  • Поз.: 31

30 S593-000902

  • S593-000902 - CLIP-HARNESS
  • Поз.: 32
