R290LC-7
/
Гидравлическая система
/

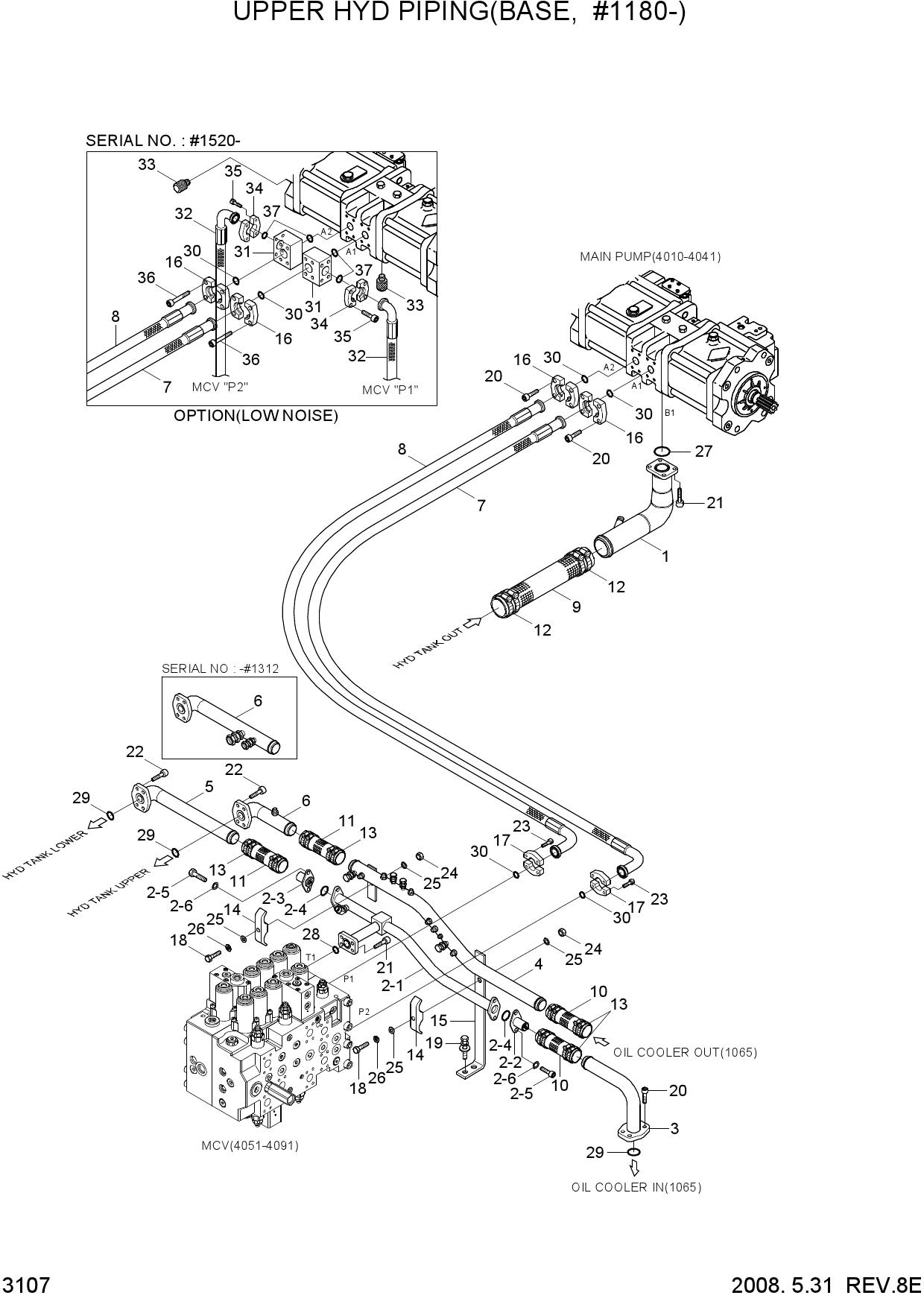

UPPER HYD PIPING(BASE, #1180-)

UPPER HYD PIPING(BASE, #1180-)

UPPER HYD PIPING(BASE, #1180-)

1 31N8-13140

  • 31N8-13140 - PIPE WA-SUCTION
  • Поз.: 1

2 31N8-16151

  • 31N8-16151 - PIPE SUB ASSY(WITH C/V)
  • Поз.: 2

3 31N8-16141

  • 31N8-16141 - PIPE WA
  • Поз.: 2-1

4 31ER-11121

  • 31ER-11121 - CHECK VALVE
  • Поз.: 2-2

5 31N7-12281

  • 31N7-12281 - VALVE-CHECK
  • Поз.: 2-3

6 Y172-003004

  • Y172-003004 - O-RING
  • Поз.: 2-4

7 S109-120456

  • S109-120456 - BOLT-SOCKET
  • Поз.: 2-5

8 S403-122006

  • S403-122006 - WASHER-PLAIN
  • Поз.: 2-6

9 32N8-13100

  • 32N8-13100 - PIPE WA
  • Поз.: 3

10 31N8-16171

  • 31N8-16171 - PIPE WA
  • Поз.: 4

11 31N8-16380

  • 31N8-16380 - PIPE ASSY
  • Поз.: 4

12 31N8-12151

  • 31N8-12151 - PIPE WA
  • Поз.: 5

13 31N9-12131

  • 31N9-12131 - PIPE WA
  • Поз.: 6

14 31N8-12780

  • 31N8-12780 - PIPE WA
  • Поз.: 6

15 31N8-13150

  • 31N8-13150 - HOSE ASSY
  • Поз.: 7

16 31N8-13170

  • 31N8-13170 - HOSE ASSY
  • Поз.: 7

17 31N8-13160

  • 31N8-13160 - HOSE ASSY
  • Поз.: 8

18 31N8-13180

  • 31N8-13180 - HOSE ASSY
  • Поз.: 8

19 P760-101040

  • P760-101040 - HOSE-RUBBER LOW
  • Поз.: 9

20 P760-072025

  • P760-072025 - HOSE-RUBBER
  • Поз.: 10

21 31N8-13090

  • 31N8-13090 - HOSE-RUBBER
  • Поз.: 10

22 P760-072020

  • P760-072020 - HOSE-RUBBER
  • Поз.: 11

23 31N8-13080

  • 31N8-13080 - HOSE-RUBBER
  • Поз.: 11

24 31N6-11190

  • 31N6-11190 - CLAMP-HOSE WIRE TYPE
  • Поз.: 12

25 S572-650006

  • S572-650006 - CLAMP-HOSE
  • WIRE TYPE
  • Поз.: 13

26 S572-640006

  • S572-640006 - CLAMP-HOSE
  • WIRE TYPE
  • Поз.: 13

27 31E5-3001

  • 31E5-3001 - CLAMP-PIPE
  • Поз.: 14

28 31N8-16200

  • 31N8-16200 - BRACKET-RETURN
  • Поз.: 15

29 P174-160115

  • P174-160115 - FLANGE-SPLIT
  • Поз.: 16

30 P173-160104

  • P173-160104 - FLANGE-HYD
  • SPLIT
  • Поз.: 17

31 S017-100902

  • S017-100902 - BOLT-HEX
  • Поз.: 18

32 S037-103022

  • S037-103022 - BOLT-W/WASHER
  • Поз.: 19

33 S109-120406

  • S109-120406 - BOLT-SOCKET
  • Поз.: 20

34 S109-120406

  • S109-120406 - BOLT-SOCKET
  • Поз.: 20

35 S109-120406

  • S109-120406 - BOLT-SOCKET
  • Поз.: 20

36 S109-120306

  • S109-120306 - BOLT-SOCKET
  • Поз.: 21

37 S109-120256

  • S109-120256 - BOLT-SOCKET
  • Поз.: 22

38 S109-100306

  • S109-100306 - BOLT-SOCKET
  • Поз.: 23

39 S205-101002

  • S205-101002 - NUT-HEX
  • Поз.: 24

40 S403-102002

  • S403-102002 - WASHER-PLAIN
  • Поз.: 25

41 S411-100002

  • S411-100002 - WASHER-SPRING
  • Поз.: 26

42 S631-071001

  • S631-071001 - O-RING
  • Поз.: 27

43 Y172-006004

  • Y172-006004 - O-RING
  • Поз.: 28

44 Y172-003004

  • Y172-003004 - O-RING
  • Поз.: 29

45 Y171-024004

  • Y171-024004 - O-RING
  • Поз.: 30

46 31N8-16320

  • 31N8-16320 - BLOCK
  • Поз.: 31

47 31N8-16330

  • 31N8-16330 - HOSE ASSY
  • Поз.: 32

48 31EK-11130

  • 31EK-11130 - COUPLING-SCREW
  • Поз.: 33

49 P173-160104

  • P173-160104 - FLANGE-HYD
  • SPLIT
  • Поз.: 34

50 S109-100306

  • S109-100306 - BOLT-SOCKET
  • Поз.: 35

51 S109-120956

  • S109-120956 - BOLT-SOCKET
  • Поз.: 36

52 Y171-024004

  • Y171-024004 - O-RING
  • Поз.: 37
