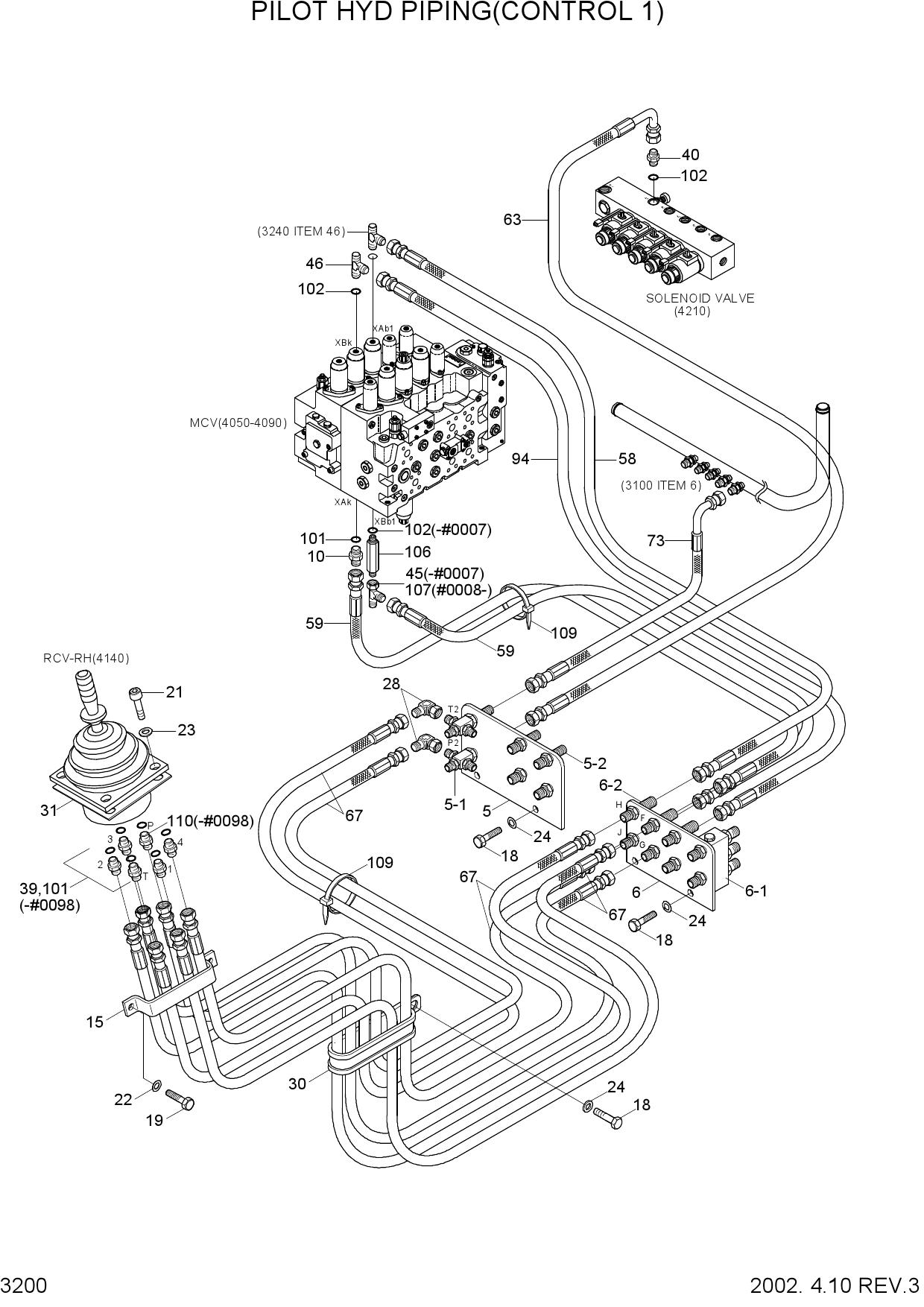

PILOT HYD PIPING(CONTROL 1)

PILOT HYD PIPING(CONTROL 1)

PILOT HYD PIPING(CONTROL 1)

1 31N8-22110

  • 31N8-22110 - TERMINAL ASSY-P
  • Поз.: 5

2 31N8-22112

  • 31N8-22112 - TERMINAL ASSY-P
  • Поз.: 5

3 31N8-22140

  • 31N8-22140 - CROSS-TEE
  • Поз.: 5-1

4 31N8-22141

  • 31N8-22141 - CROSS-TEE
  • Поз.: 5-1

5 31N8-22150

  • 31N8-22150 - CONNECTOR-2 NUT
  • Поз.: 5-2

6 31N8-22121

  • 31N8-22121 - TERMINAL ASSY-C
  • Поз.: 6

7 31N8-22130

  • 31N8-22130 - SHUTTLE-5 PORT
  • Поз.: 6-1

8 31N8-22150

  • 31N8-22150 - CONNECTOR-2 NUT
  • Поз.: 6-2

9 P010-110002

  • P010-110002 - CONNECTOR
  • Поз.: 10

10 31E6-20020

  • 31E6-20020 - CLAMP-HOSE
  • Поз.: 15

11 S017-100206

  • S017-100206 - BOLT-HEX
  • Поз.: 18

12 S017-080206

  • S017-080206 - BOLT-HEX
  • Поз.: 19

13 S175-060256

  • S175-060256 - SCREW-SOCKET RD HD
  • Поз.: 21

14 S403-082006

  • S403-082006 - WASHER-PLAIN
  • Поз.: 22

15 S403-062006

  • S403-062006 - WASHER-PLAIN
  • Поз.: 23

16 S411-100006

  • S411-100006 - WASHER-SPRING
  • Поз.: 24

17 34E7-03760

  • 34E7-03760 - ELBOW-SWIVEL NUT
  • Поз.: 28

18 31E7-0310

  • 31E7-0310 - CLAMP-HOSE
  • Поз.: 30

19 31M6-51060

  • 31M6-51060 - SHIM(3.0T)
  • Поз.: 31

20 31M6-51061

  • 31M6-51061 - SHIM(3.2T)
  • Поз.: 31

21 P010-110012

  • P010-110012 - CONNECTOR
  • Поз.: 39

22 P010-110003

  • P010-110003 - CONNECTOR
  • Поз.: 40

23 P320-060604

  • P320-060604 - TEE-RUN TYPE
  • Поз.: 45

24 P320-060606

  • P320-060606 - TEE-RUN TYPE
  • Поз.: 46

25 P400-062038

  • P400-062038 - HOSE ASSY-COMPACT
  • Поз.: 58

26 P400-062033

  • P400-062033 - HOSE ASSY-COMPACT
  • Поз.: 59

27 P420-062056

  • P420-062056 - HOSE ASSY-COMP 0X90
  • Поз.: 63

28 P410-062041

  • P410-062041 - HOSE ASSY-COMP 0X45
  • Поз.: 67

29 P420-062026

  • P420-062026 - HOSE ASSY-COMP 0X90
  • Поз.: 73

30 P400-062039

  • P400-062039 - HOSE ASSY-COMPACT
  • Поз.: 94

31 S631-011004

  • S631-011004 - O-RING
  • Поз.: 101

32 S631-011004

  • S631-011004 - O-RING
  • Поз.: 101

33 S631-014004

  • S631-014004 - O-RING
  • Поз.: 102

34 31N6-22110

  • 31N6-22110 - VALVE-SHOCKLESS
  • Поз.: 106

35 31N8-22160

  • 31N8-22160 - TEE-SWIVEL NUT
  • Поз.: 107

36 S551-050203

  • S551-050203 - CLAMP-BAND
  • Поз.: 109

37 31EK-20110

  • 31EK-20110 - FILTER-LAST GUARD
  • Поз.: 110
