R290LC-7
/
Гидравлическая система
/

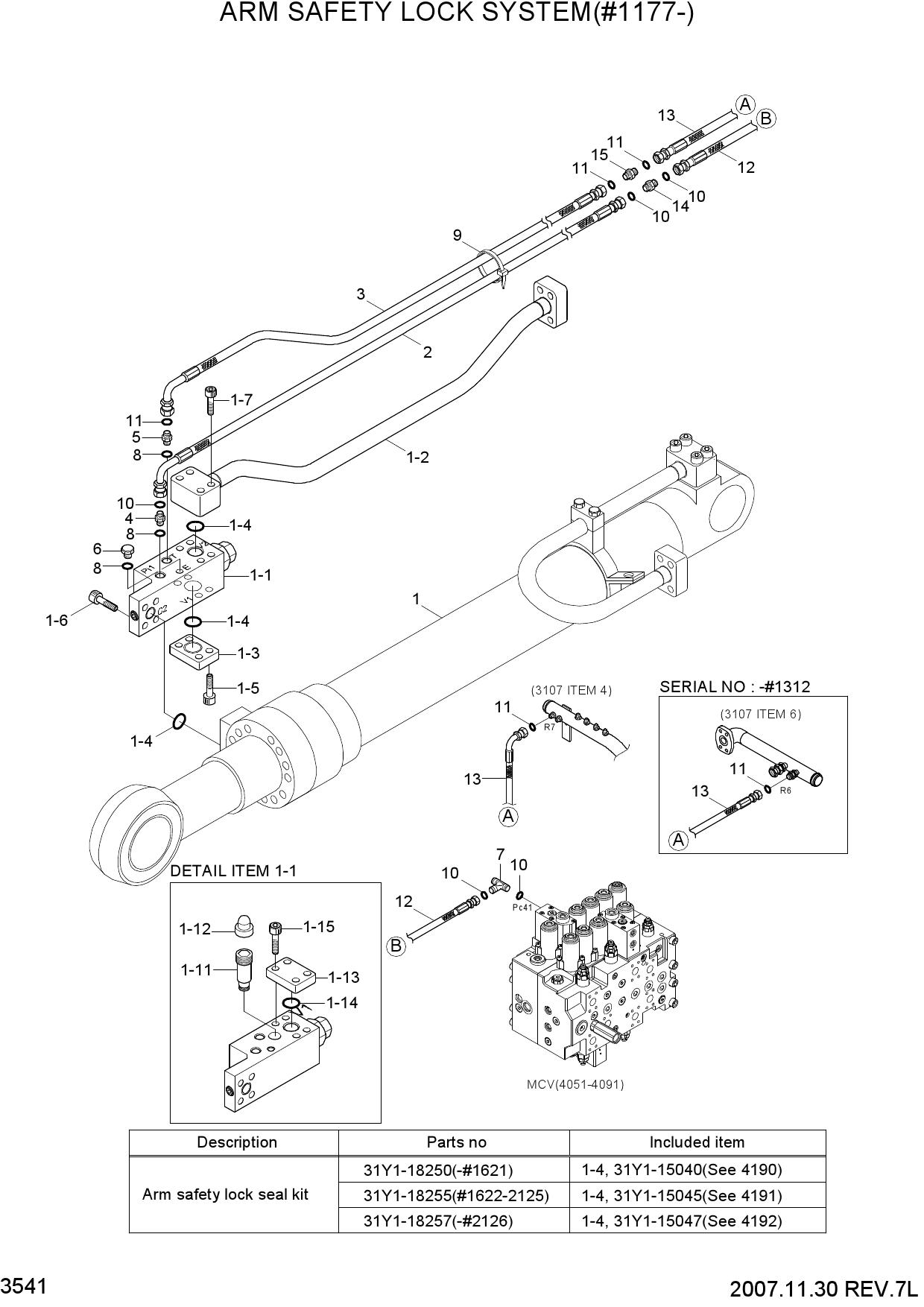

ARM SAFETY LOCK SYSTEM(#1177-)

ARM SAFETY LOCK SYSTEM(#1177-)

ARM SAFETY LOCK SYSTEM(#1177-)

1 31N8-52130

  • 31N8-52130 - ARM CYLINDER ASSY
  • Поз.: 1

2 31N8-52135

  • 31N8-52135 - ARM CYLINDER ASSY
  • Поз.: 1

3 31N8-52137

  • 31N8-52137 - ARM CYLINDER ASSY
  • Поз.: 1

4 31N8-52138

  • 31N8-52138 - ARM CYLINDER ASSY
  • Поз.: 1

5 31N6-90520

  • 31N6-90520 - VALVE-SAFETY LOCK
  • Поз.: 1-1

6 ZTAS-00001

  • ZTAS-00001 - VALVE-RELIEF
  • Поз.: 1-11

7 ZTAS-00002

  • ZTAS-00002 - CAP
  • Поз.: 1-12

8 P184-162112

  • P184-162112 - FLANGE-PLUG SQUARE
  • Поз.: 1-13

9 Y171-024004

  • Y171-024004 - O-RING
  • Поз.: 1-14

10 S109-120406

  • S109-120406 - BOLT-SOCKET
  • Поз.: 1-15

11 ZTAS-00005

  • ZTAS-00005 - SEAL KIT
  • Поз.: 1-16

12 31N8-90630

  • 31N8-90630 - PIPE ASSY
  • Поз.: 1-2

13 31N8-90635

  • 31N8-90635 - PIPE ASSY-RV
  • Поз.: 1-2

14 31N8-90636

  • 31N8-90636 - PIPE ASSY-RV
  • Поз.: 1-2

15 P184-162112

  • P184-162112 - FLANGE-PLUG SQUARE
  • Поз.: 1-3

16 S109-120406

  • S109-120406 - BOLT-SOCKET
  • Поз.: 1-5

17 S109-120456

  • S109-120456 - BOLT-SOCKET
  • Поз.: 1-6

18 S107-120556

  • S107-120556 - BOLT-SOCKET
  • Поз.: 1-6

19 S109-120606

  • S109-120606 - BOLT-SOCKET
  • Поз.: 1-7

20 S107-120556

  • S107-120556 - BOLT-SOCKET
  • Поз.: 1-7

21 P930-042112

  • P930-042112 - HOSE ASSY-ORFS 0X90
  • Поз.: 2

22 P930-042189

  • P930-042189 - HOSE ASSY-ORFS 0X90
  • Поз.: 2

23 P930-062112

  • P930-062112 - HOSE ASSY-ORFS 0X90
  • Поз.: 3

24 P930-062179

  • P930-062179 - HOSE ASSY-ORFS 0X90
  • Поз.: 3

25 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 4

26 X500-110011

  • X500-110011 - CONNECTOR-ORFS
  • Поз.: 5

27 P220-110102

  • P220-110102 - PLUG-HEX
  • Поз.: 6

28 X840-515151

  • X840-515151 - TEE-R/TYPE
  • ORFS
  • Поз.: 7

29 S631-014004

  • S631-014004 - O-RING
  • Поз.: 8

30 S552-020102

  • S552-020102 - CLAMP-BAND
  • Поз.: 9

31 S621-011001

  • S621-011001 - O-RING
  • Поз.: 10

32 S621-012001

  • S621-012001 - O-RING
  • Поз.: 11

33 P910-042042

  • P910-042042 - HOSE ASSY-ORFS 0X0
  • Поз.: 12

34 P910-062052

  • P910-062052 - HOSE ASSY-ORFS 0X0
  • Поз.: 13

35 P930-062052

  • P930-062052 - HOSE ASSY-ORFS 0X90
  • Поз.: 13

36 X540-110001

  • X540-110001 - CONNECTOR-ORFS
  • Поз.: 14

37 X540-110002

  • X540-110002 - CONNECTOR-ORFS
  • Поз.: 15
