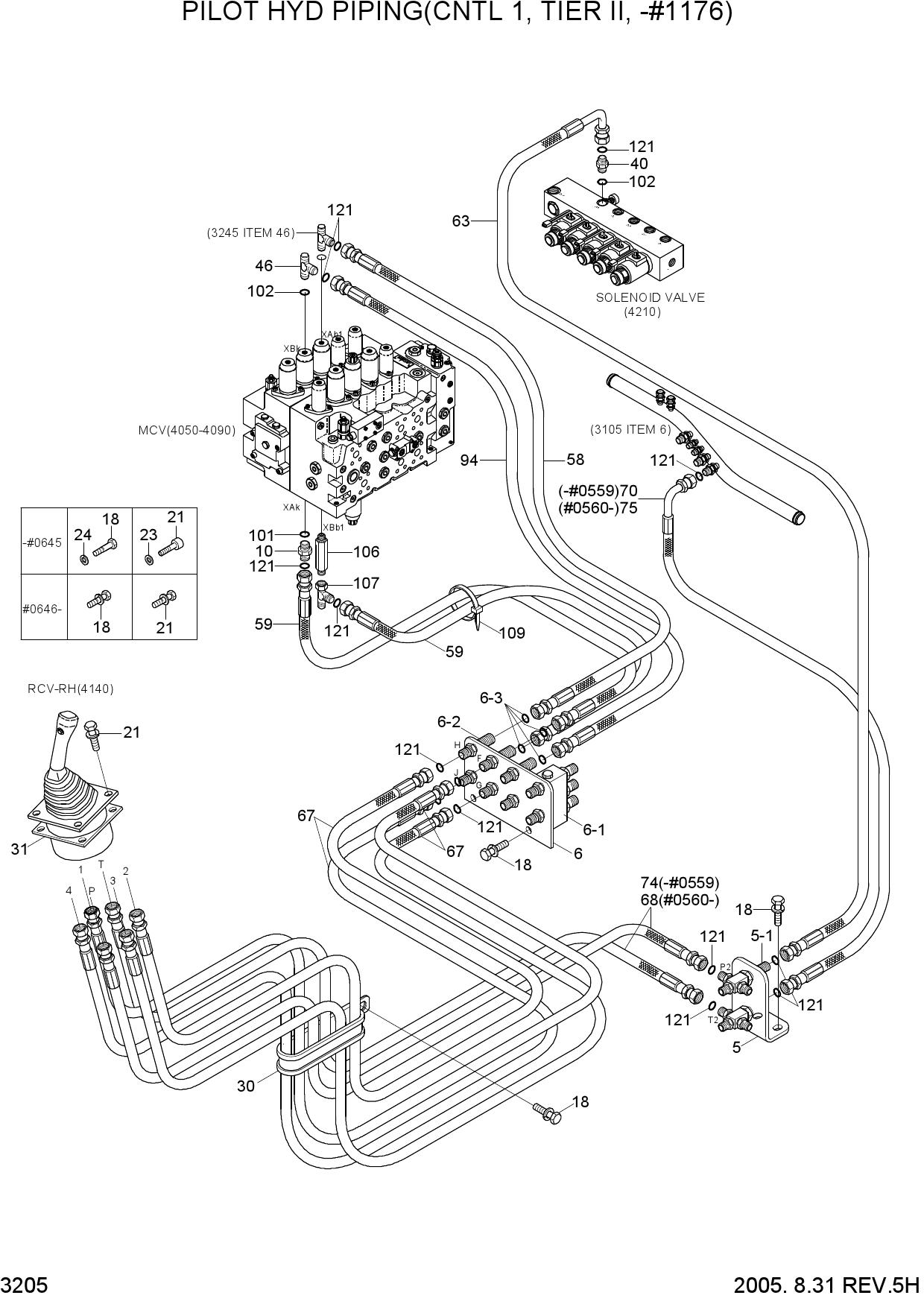

PILOT HYD PIPING(CNTL 1,TIER II,-#1176)

PILOT HYD PIPING(CNTL 1,TIER II,-#1176)

PILOT HYD PIPING(CNTL 1,TIER II,-#1176)

1 31NB-20021

  • 31NB-20021 - CROSS ASSY
  • Поз.: 5

2 31NB-20022

  • 31NB-20022 - CROSS ASSY
  • Поз.: 5

3 31N8-24040

  • 31N8-24040 - CROSS-BULK HEAD TYPE
  • Поз.: 5-1

4 31N8-22121

  • 31N8-22121 - TERMINAL ASSY-C
  • Поз.: 6

5 31N8-24010

  • 31N8-24010 - TERMINAL ASSY-C
  • Поз.: 6

6 31N8-22130

  • 31N8-22130 - SHUTTLE-5 PORT
  • Поз.: 6-1

7 31N8-24030

  • 31N8-24030 - SHUTTLE-5 PORT
  • Поз.: 6-1

8 31N8-22150

  • 31N8-22150 - CONNECTOR-2 NUT
  • Поз.: 6-2

9 X540-120002

  • X540-120002 - CONNECTOR-ORFS
  • Поз.: 6-2

10 S621-120001

  • S621-120001 - O-RING
  • Поз.: 6-3

11 P010-110002

  • P010-110002 - CONNECTOR
  • Поз.: 10

12 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 10

13 S017-100206

  • S017-100206 - BOLT-HEX
  • Поз.: 18

14 S037-102526

  • S037-102526 - BOLT-W/WASHER
  • Поз.: 18

15 S175-060256

  • S175-060256 - SCREW-SOCKET RD HD
  • Поз.: 21

16 S035-063046

  • S035-063046 - BOLT-W/WASHER
  • Поз.: 21

17 S403-062006

  • S403-062006 - WASHER-PLAIN
  • Поз.: 23

18 S411-100006

  • S411-100006 - WASHER-SPRING
  • Поз.: 24

19 31E7-0310

  • 31E7-0310 - CLAMP-HOSE
  • Поз.: 30

20 31M6-51061

  • 31M6-51061 - SHIM(3.2T)
  • Поз.: 31

21 P010-110003

  • P010-110003 - CONNECTOR
  • Поз.: 40

22 X500-110002

  • X500-110002 - CONNECTOR-ORFS
  • Поз.: 40

23 P320-060606

  • P320-060606 - TEE-RUN TYPE
  • Поз.: 46

24 X820-065252

  • X820-065252 - TEE-R/TYPE
  • ORFS
  • Поз.: 46

25 P840-062038

  • P840-062038 - HOSE ASSY-SYN THD
  • Поз.: 58

26 X400-062038

  • X400-062038 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 58

27 P840-062033

  • P840-062033 - HOSE ASSY-SYN THD
  • Поз.: 59

28 X400-062033

  • X400-062033 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 59

29 P860-062070

  • P860-062070 - HOSE ASSY-SYN 0X90
  • Поз.: 63

30 P860-062076

  • P860-062076 - HOSE ASSY-SYN 0X90
  • Поз.: 63

31 X420-062076

  • X420-062076 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 63

32 P850-062041

  • P850-062041 - HOSE ASSY-SYN 0X45
  • Поз.: 67

33 X410-062041

  • X410-062041 - HOSE ASSY-ORFS 0X45
  • Поз.: 67

34 P850-062028

  • P850-062028 - HOSE ASSY-SYN 0X45
  • Поз.: 68

35 X410-062028

  • X410-062028 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 68

36 P920-062028

  • P920-062028 - HOSE ASSY-ORFS 0X45
  • Поз.: 68

37 P860-062041

  • P860-062041 - HOSE ASSY-SYN 0X90
  • Поз.: 70

38 P850-062030

  • P850-062030 - HOSE ASSY-SYN 0X45
  • Поз.: 74

39 P860-062047

  • P860-062047 - HOSE ASSY-SYN 0X90
  • Поз.: 75

40 X420-062047

  • X420-062047 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 75

41 P840-062039

  • P840-062039 - HOSE ASSY-SYN THD
  • Поз.: 94

42 X400-062039

  • X400-062039 - HOSE ASSY-SYNF ORFS
  • Поз.: 94

43 S631-011004

  • S631-011004 - O-RING
  • Поз.: 101

44 S631-014004

  • S631-014004 - O-RING
  • Поз.: 102

45 31N6-22110

  • 31N6-22110 - VALVE-SHOCKLESS
  • Поз.: 106

46 31N6-22370

  • 31N6-22370 - VALVE-SHOCKLESS
  • Поз.: 106

47 31N8-22160

  • 31N8-22160 - TEE-SWIVEL NUT
  • Поз.: 107

48 31ER-20040

  • 31ER-20040 - TEE-SWIVEL
  • Поз.: 107

49 X840-525152

  • X840-525152 - TEE-R/TYPE
  • SWIVEL
  • ORFS
  • Поз.: 107

50 S551-050203

  • S551-050203 - CLAMP-BAND
  • Поз.: 109

51 S621-012001

  • S621-012001 - O-RING
  • Поз.: 121
