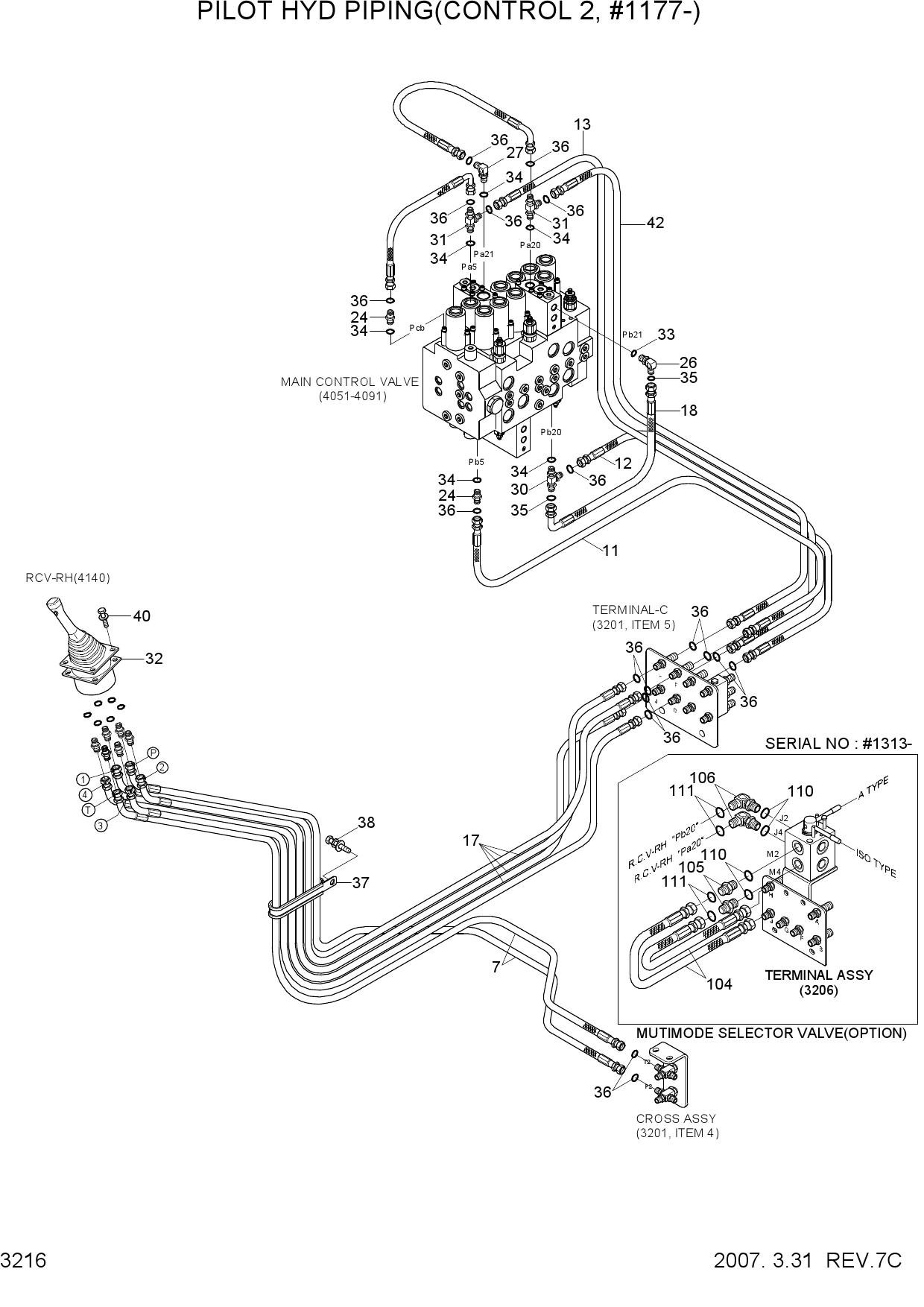

PILOT HYD PIPING(CONTROL 2, #1177-)

PILOT HYD PIPING(CONTROL 2, #1177-)

PILOT HYD PIPING(CONTROL 2, #1177-)

1 P920-062028

  • P920-062028 - HOSE ASSY-ORFS 0X45
  • Поз.: 7

2 X400-062032

  • X400-062032 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 11

3 X400-062028

  • X400-062028 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 12

4 X400-062035

  • X400-062035 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 13

5 X410-062041

  • X410-062041 - HOSE ASSY-ORFS 0X45
  • Поз.: 17

6 X420-042016

  • X420-042016 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 18

7 X420-062014

  • X420-062014 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 19

8 X500-110002

  • X500-110002 - CONNECTOR-ORFS
  • Поз.: 24

9 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 26

10 X520-110002

  • X520-110002 - ELBOW-90
  • ORFS
  • Поз.: 27

11 X820-065152

  • X820-065152 - TEE-R/TYPE
  • ORFS
  • Поз.: 30

12 X820-065252

  • X820-065252 - TEE-R/TYPE
  • ORFS
  • Поз.: 31

13 31M6-51061

  • 31M6-51061 - SHIM(3.2T)
  • Поз.: 32

14 S631-011004

  • S631-011004 - O-RING
  • Поз.: 33

15 S631-014004

  • S631-014004 - O-RING
  • Поз.: 34

16 S621-011001

  • S621-011001 - O-RING
  • Поз.: 35

17 S621-012001

  • S621-012001 - O-RING
  • Поз.: 36

18 31E7-0310

  • 31E7-0310 - CLAMP-HOSE
  • Поз.: 37

19 S037-102526

  • S037-102526 - BOLT-W/WASHER
  • Поз.: 38

20 S035-063046

  • S035-063046 - BOLT-W/WASHER
  • Поз.: 40

21 X400-062034

  • X400-062034 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 42

22 P910-062008

  • P910-062008 - HOSE ASSY-ORFS 0X0
  • Поз.: 104

23 X500-110011

  • X500-110011 - CONNECTOR-ORFS
  • Поз.: 105

24 X520-110011

  • X520-110011 - ELBOW-90
  • ORFS
  • Поз.: 106

25 S631-011004

  • S631-011004 - O-RING
  • Поз.: 110

26 S621-012001

  • S621-012001 - O-RING
  • Поз.: 111
