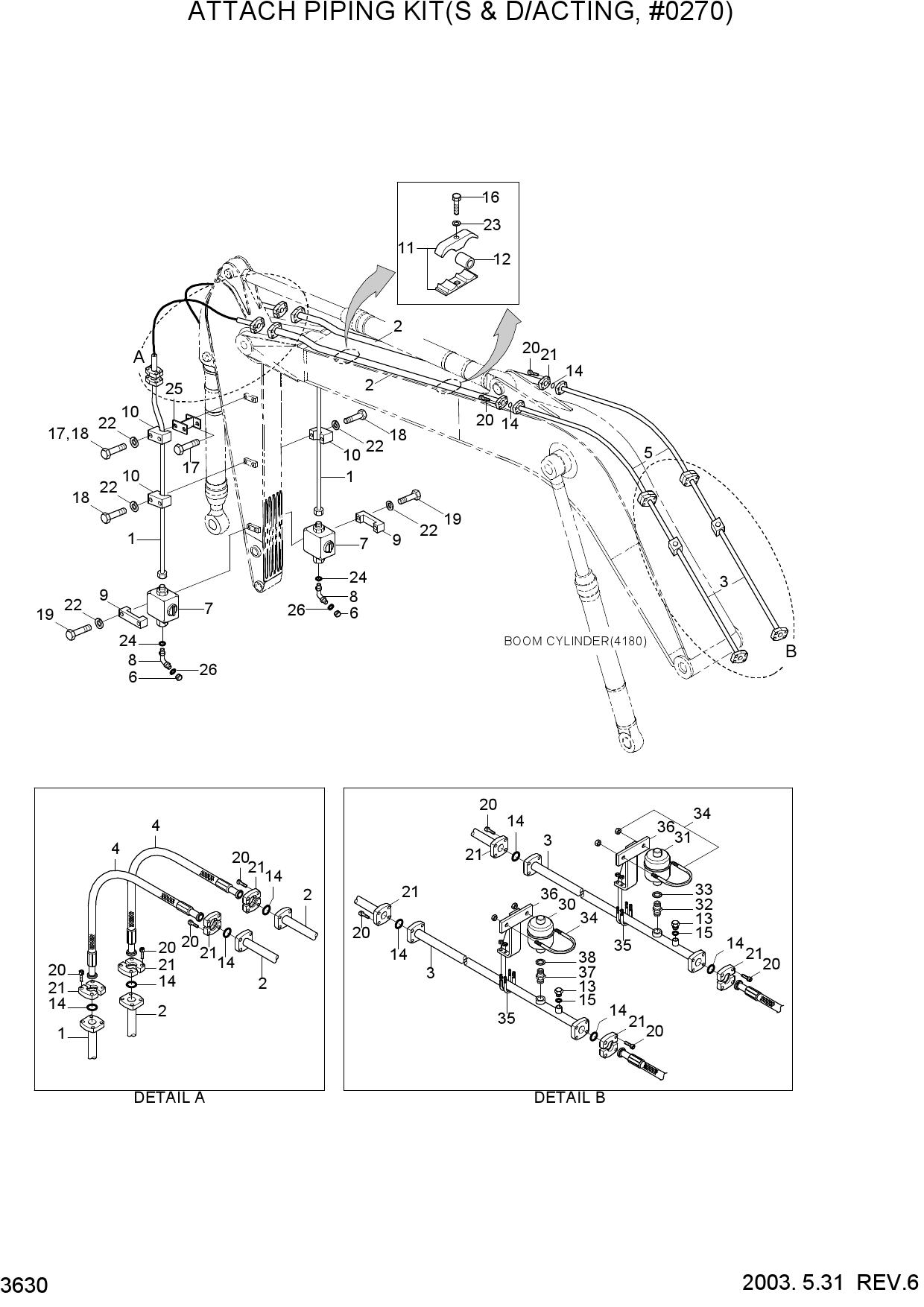

ATTACH PIPING KIT(S & D/ACTING, -#0270)

ATTACH PIPING KIT(S & D/ACTING, -#0270)

ATTACH PIPING KIT(S & D/ACTING, -#0270)

1 31N8-92110

  • 31N8-92110 - PIPE ASSY
  • Поз.: 1

2 31N8-92120

  • 31N8-92120 - PIPE ASSY
  • Поз.: 1

3 31N8-92130

  • 31N8-92130 - PIPE ASSY
  • Поз.: 1

4 31N8-92140

  • 31N8-92140 - PIPE ASSY
  • Поз.: 1

5 31N8-92150

  • 31N8-92150 - PIPE ASSY
  • Поз.: 2

6 31N8-92160

  • 31N8-92160 - PIPE ASSY
  • Поз.: 2

7 31N8-92170

  • 31N8-92170 - PIPE ASSY
  • Поз.: 3

8 P681-207330

  • P681-207330 - HOSE ASSY-FLG 0X0
  • Поз.: 4

9 P680-207322

  • P680-207322 - HOSE ASSY-FLG
  • Поз.: 5

10 P290-100107

  • P290-100107 - CAP
  • Поз.: 6

11 31EN-92240

  • 31EN-92240 - VALVE-STOP
  • Поз.: 7

12 P030-110006

  • P030-110006 - ELBOW-45
  • Поз.: 8

13 31EG-91360

  • 31EG-91360 - CLAMP-STOP VALVE
  • Поз.: 9

14 31EG-91400

  • 31EG-91400 - CLAMP-PIPE
  • Поз.: 10

15 31N6-50320

  • 31N6-50320 - CLAMP ASSY
  • Поз.: 11

16 31E9-53220

  • 31E9-53220 - SPACER-PIPE
  • Поз.: 12

17 31EK-11130

  • 31EK-11130 - COUPLING-SCREW
  • Поз.: 13

18 Y171-027001

  • Y171-027001 - O-RING
  • Поз.: 14

19 S631-011001

  • S631-011001 - O-RING
  • Поз.: 15

20 S017-160752

  • S017-160752 - BOLT-HEX
  • Поз.: 16

21 S017-120252

  • S017-120252 - BOLT-HEX
  • Поз.: 17

22 S017-120702

  • S017-120702 - BOLT-HEX
  • Поз.: 18

23 S017-120802

  • S017-120802 - BOLT-HEX
  • Поз.: 19

24 S109-100406

  • S109-100406 - BOLT-SOCKET
  • Поз.: 20

25 S173-200106

  • S173-200106 - FLANG-SPLIT
  • Поз.: 21

26 S411-120002

  • S411-120002 - WASHER-SPRING
  • Поз.: 22

27 S411-160002

  • S411-160002 - WASHER-SPRING
  • Поз.: 23

28 S631-038001

  • S631-038001 - O-RING
  • Поз.: 24

29 31N8-92190

  • 31N8-92190 - BRACKET-I/CLMAP
  • Поз.: 25

30 S621-025001

  • S621-025001 - O-RING
  • Поз.: 26

31 31EN-91701

  • 31EN-91701 - ACCUMULATOR KIT
  • Поз.: 50

32 32E6-92040

  • 32E6-92040 - ACCUMULATOR
  • Поз.: 30

33 32E6-92050

  • 32E6-92050 - ACCUMULATOR
  • Поз.: 31

34 31EN-92260

  • 31EN-92260 - CONNECTOR
  • Поз.: 32

35 P392-220000

  • P392-220000 - WASHER-COPPER
  • Поз.: 33

36 32E6-92060

  • 32E6-92060 - U-BOLT
  • Поз.: 34

37 S071-034330

  • S071-034330 - U-BOLT
  • Поз.: 35

38 31EN-92250

  • 31EN-92250 - BRACKET-ACCUM
  • Поз.: 36

39 31EN-92280

  • 31EN-92280 - CONNECTOR
  • Поз.: 37

40 P392-180000

  • P392-180000 - WASHER-COPPER
  • Поз.: 38
