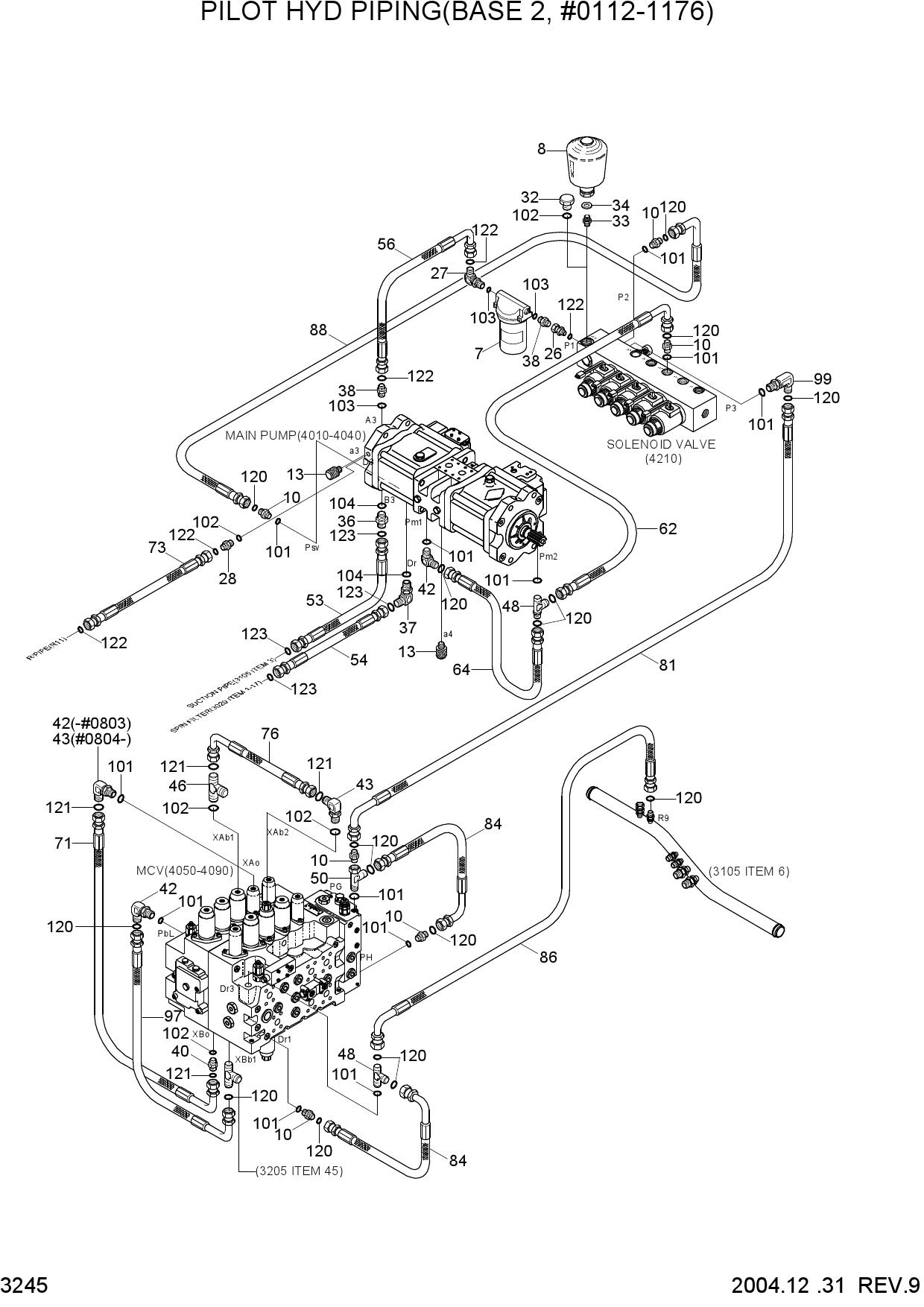

PILOT HYD PIPING(BASE 2, #0112-1176)

PILOT HYD PIPING(BASE 2, #0112-1176)

PILOT HYD PIPING(BASE 2, #0112-1176)

1 31E3-0017

  • 31E3-0017 - FILTER-LINE
  • Поз.: 7

2 31E3-0018

  • 31E3-0018 - ELEMENT-LINE FILTER
  • Поз.: 7-1

3 31E3-3187

  • 31E3-3187 - ACCUMULATOR
  • Поз.: 8

4 P010-110002

  • P010-110002 - CONNECTOR
  • Поз.: 10

5 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 10

6 31EK-11130

  • 31EK-11130 - COUPLING-SCREW
  • Поз.: 13

7 31EM-20160

  • 31EM-20160 - ADAPTER
  • Поз.: 26

8 31N6-22400

  • 31N6-22400 - ADAPTOR
  • Поз.: 26

9 P020-110003

  • P020-110003 - ELBOW-90
  • Поз.: 27

10 X520-110003

  • X520-110003 - ELBOW-90
  • ORFS
  • Поз.: 27

11 P010-110014

  • P010-110014 - CONNECTOR
  • Поз.: 28

12 X500-110012

  • X500-110012 - CONNECTOR-ORFS
  • Поз.: 28

13 P220-110103

  • P220-110103 - PLUG-HEX
  • Поз.: 32

14 31E9-20060

  • 31E9-20060 - FITTING
  • Поз.: 33

15 31N6-24200

  • 31N6-24200 - CONNECTOR
  • Поз.: 33

16 P391-080000

  • P391-080000 - WASHER-COPPER
  • Поз.: 34

17 X321-021001

  • X321-021001 - RING-ED
  • Поз.: 34

18 P010-110005

  • P010-110005 - CONNECTOR
  • Поз.: 36

19 X500-110004

  • X500-110004 - CONNECTOR-ORFS
  • Поз.: 36

20 P020-110004

  • P020-110004 - ELBOW-90
  • Поз.: 37

21 X520-110004

  • X520-110004 - ELBOW-90
  • ORFS
  • Поз.: 37

22 P010-110004

  • P010-110004 - CONNECTOR
  • Поз.: 38

23 X500-110003

  • X500-110003 - CONNECTOR-ORFS
  • Поз.: 38

24 P010-110003

  • P010-110003 - CONNECTOR
  • Поз.: 40

25 X500-110002

  • X500-110002 - CONNECTOR-ORFS
  • Поз.: 40

26 P020-110001

  • P020-110001 - ELBOW-90
  • Поз.: 42

27 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 42

28 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 42

29 P020-110002

  • P020-110002 - ELBOW-90
  • Поз.: 43

30 X520-110002

  • X520-110002 - ELBOW-90
  • ORFS
  • Поз.: 43

31 X520-110002

  • X520-110002 - ELBOW-90
  • ORFS
  • Поз.: 43

32 P320-060606

  • P320-060606 - TEE-RUN TYPE
  • Поз.: 46

33 X820-065252

  • X820-065252 - TEE-R/TYPE
  • ORFS
  • Поз.: 46

34 P320-040404

  • P320-040404 - TEE-RUN TYPE
  • Поз.: 48

35 X820-045151

  • X820-045151 - TEE-R/TYPE
  • ORFS
  • Поз.: 48

36 32E6-10460

  • 32E6-10460 - TEE-SWEVEL NUT
  • Поз.: 50

37 X840-515151

  • X840-515151 - TEE-R/TYPE
  • ORFS
  • Поз.: 50

38 P610-122012

  • P610-122012 - HOSE ASSY-THD 0X45
  • Поз.: 53

39 P920-122012

  • P920-122012 - HOSE ASSY-ORFS 0X45
  • Поз.: 53

40 P620-122016

  • P620-122016 - HOSE ASSY-THD 0X90
  • Поз.: 54

41 P930-122016

  • P930-122016 - HOSE ASSY-ORFS 0X90
  • Поз.: 54

42 P620-082016

  • P620-082016 - HOSE ASSY-THD 0X90
  • Поз.: 56

43 P930-082016

  • P930-082016 - HOSE ASSY-ORFS 0X90
  • Поз.: 56

44 P860-042012

  • P860-042012 - HOSE ASSY-SYN 0X90
  • Поз.: 62

45 X420-042012

  • X420-042012 - HOSE ASSY-ORFS 0X90
  • Поз.: 62

46 P840-042009

  • P840-042009 - HOSE ASSY-SYN THD
  • Поз.: 64

47 X400-042009

  • X400-042009 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 64

48 P860-062018

  • P860-062018 - HOSE ASSY-SYN 0X90
  • Поз.: 71

49 X420-062018

  • X420-062018 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 71

50 P620-082022

  • P620-082022 - HOSE ASSY-THD 0X90
  • Поз.: 73

51 P930-082022

  • P930-082022 - HOSE ASSY-ORFS 0X90
  • Поз.: 73

52 P860-062014

  • P860-062014 - HOSE ASSY-SYN 0X90
  • Поз.: 76

53 X420-062014

  • X420-062014 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 76

54 P860-042053

  • P860-042053 - HOSE ASSY-SYN 0X90
  • Поз.: 81

55 X420-042053

  • X420-042053 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 81

56 P860-042008

  • P860-042008 - HOSE ASSY-SYN 0X90
  • Поз.: 84

57 X420-042008

  • X420-042008 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 84

58 P860-042015

  • P860-042015 - HOSE ASSY-SYN 0X90
  • Поз.: 86

59 X420-042015

  • X420-042015 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 86

60 P860-042014

  • P860-042014 - HOSE ASSY-SYN 0X90
  • Поз.: 88

61 X420-042014

  • X420-042014 - HOSE ASSY-SYNF
  • ORFS 0X90
  • Поз.: 88

62 P860-042016

  • P860-042016 - HOSE ASSY-SYN 0X90
  • Поз.: 97

63 X420-042016

  • X420-042016 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 97

64 E131-0603

  • E131-0603 - ELBOW 90-LONG
  • Поз.: 99

65 31N6-25110

  • 31N6-25110 - ELBOW-90
  • ORFS
  • LONG
  • Поз.: 99

66 S631-011004

  • S631-011004 - O-RING
  • Поз.: 101

67 S631-014004

  • S631-014004 - O-RING
  • Поз.: 102

68 S631-014004

  • S631-014004 - O-RING
  • Поз.: 102

69 S631-018004

  • S631-018004 - O-RING
  • Поз.: 103

70 S631-024004

  • S631-024004 - O-RING
  • Поз.: 104

71 S621-011001

  • S621-011001 - O-RING
  • Поз.: 120

72 S621-012001

  • S621-012001 - O-RING
  • Поз.: 121

73 S621-014001

  • S621-014001 - O-RING
  • Поз.: 122

74 S621-018001

  • S621-018001 - O-RING
  • Поз.: 123
