R290LC-7
/
Гидравлическая система
/

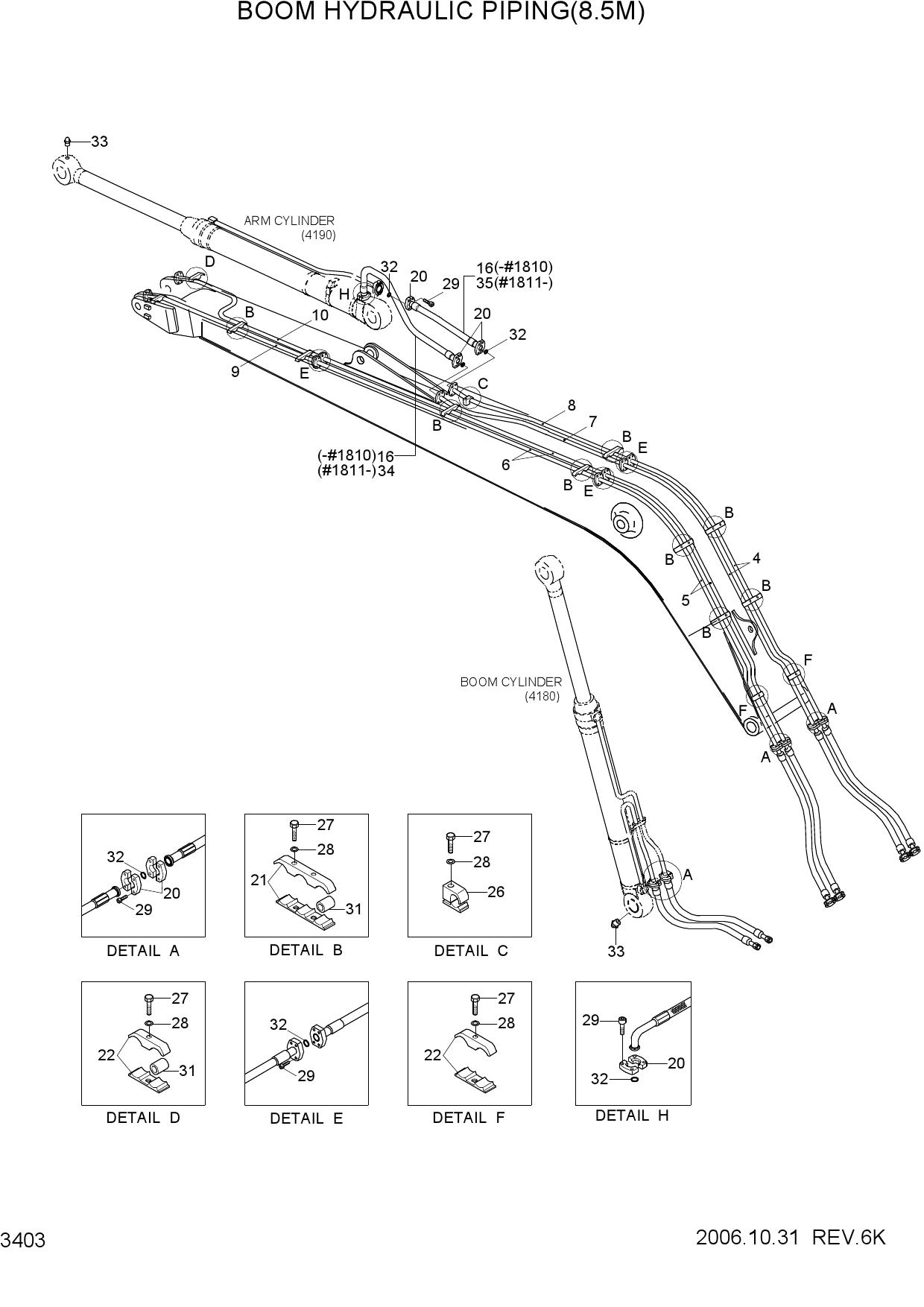

BOOM HYDRAULIC PIPING(8.5M)

BOOM HYDRAULIC PIPING(8.5M)

BOOM HYDRAULIC PIPING(8.5M)

1 31N8-50500

  • 31N8-50500 - PIPE ASSY
  • Поз.: 4

2 31N8-50510

  • 31N8-50510 - PIPE ASSY
  • Поз.: 5

3 31N8-50520

  • 31N8-50520 - PIPE ASSY
  • Поз.: 6

4 31N8-50530

  • 31N8-50530 - PIPE ASSY
  • Поз.: 7

5 31N8-50540

  • 31N8-50540 - PIPE ASSY
  • Поз.: 8

6 31N8-50550

  • 31N8-50550 - PIPE ASSY
  • Поз.: 9

7 31N8-50560

  • 31N8-50560 - PIPE ASSY
  • Поз.: 10

8 P680-167325

  • P680-167325 - PIPE ASSY
  • Поз.: 16

9 P173-160104

  • P173-160104 - FLANGE-HYD
  • SPLIT
  • Поз.: 20

10 31N6-50330

  • 31N6-50330 - CLAMP ASSY
  • Поз.: 21

11 31N6-50310

  • 31N6-50310 - CLAMP ASSY
  • Поз.: 22

12 31N6-50300

  • 31N6-50300 - CLAMP ASSY
  • Поз.: 26

13 S017-160752

  • S017-160752 - BOLT-HEX
  • Поз.: 27

14 S411-160002

  • S411-160002 - WASHER-SPRING
  • Поз.: 28

15 S109-100356

  • S109-100356 - BOLT-SOCKET
  • Поз.: 29

16 31N5-50230

  • 31N5-50230 - SPACER-PIPE
  • Поз.: 31

17 Y171-024004

  • Y171-024004 - O-RING
  • Поз.: 32

18 S651-810002

  • S651-810002 - NIPPLE-GREASE
  • Поз.: 33

19 P700-167321

  • P700-167321 - HOSE ASSY-FLG 0X90
  • Поз.: 34

20 P680-167324

  • P680-167324 - HOSE ASSY-FLG
  • Поз.: 35
