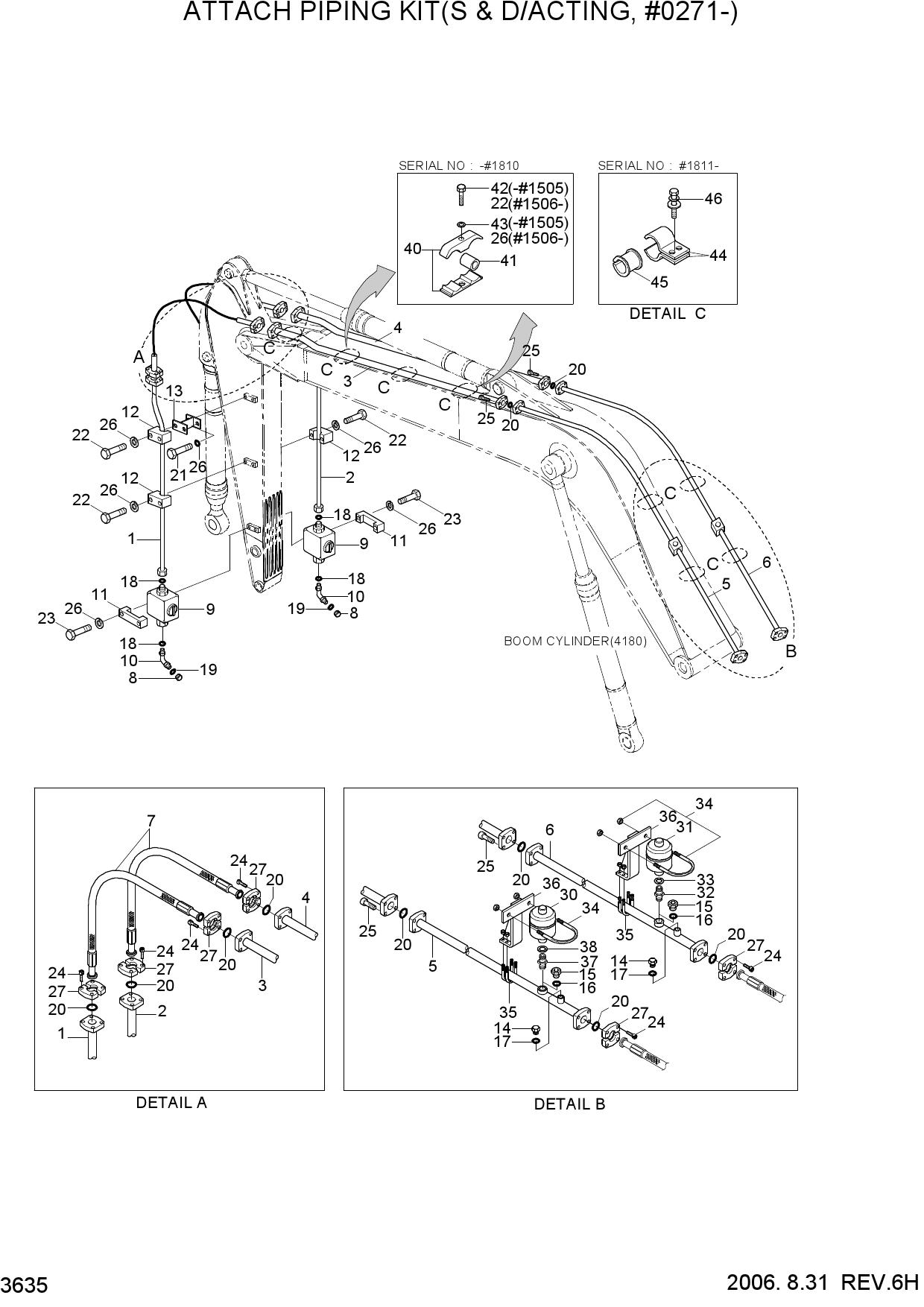

ATTACH PIPING KIT(S & D/ACTING, #0271-)

ATTACH PIPING KIT(S & D/ACTING, #0271-)

ATTACH PIPING KIT(S & D/ACTING, #0271-)

1 31N8-92111

  • 31N8-92111 - PIPE ASSY
  • Поз.: 1

2 31N8-92112

  • 31N8-92112 - PIPE ASSY
  • Поз.: 1

3 31N8-92121

  • 31N8-92121 - PIPE ASSY
  • Поз.: 1

4 31N8-92122

  • 31N8-92122 - PIPE ASSY
  • Поз.: 1

5 31N8-92131

  • 31N8-92131 - PIPE ASSY
  • Поз.: 1

6 31N8-92132

  • 31N8-92132 - PIPE ASSY
  • Поз.: 1

7 31N8-92141

  • 31N8-92141 - PIPE ASSY
  • Поз.: 1

8 31N8-92142

  • 31N8-92142 - PIPE ASSY
  • Поз.: 1

9 31N8-92240

  • 31N8-92240 - PIPE ASSY
  • Поз.: 1

10 31N8-92310

  • 31N8-92310 - PIPE ASSY
  • Поз.: 2

11 31N8-92311

  • 31N8-92311 - PIPE ASSY
  • Поз.: 2

12 31N8-92320

  • 31N8-92320 - PIPE ASSY
  • Поз.: 2

13 31N8-92321

  • 31N8-92321 - PIPE ASSY
  • Поз.: 2

14 31N8-92330

  • 31N8-92330 - PIPE ASSY
  • Поз.: 2

15 31N8-92331

  • 31N8-92331 - PIPE ASSY
  • Поз.: 2

16 31N8-92340

  • 31N8-92340 - PIPE ASSY
  • Поз.: 2

17 31N8-92142

  • 31N8-92142 - PIPE ASSY
  • Поз.: 2

18 31N8-92250

  • 31N8-92250 - PIPE ASSY
  • Поз.: 2

19 31N8-92151

  • 31N8-92151 - PIPE ASSY
  • Поз.: 3

20 31N8-92350

  • 31N8-92350 - PIPE ASSY
  • Поз.: 4

21 31N8-92171

  • 31N8-92171 - PIPE ASSY
  • Поз.: 5

22 31N8-92380

  • 31N8-92380 - PIPE ASSY
  • Поз.: 6

23 P703-207338

  • P703-207338 - HOSE ASSY-FLG 0X90
  • Поз.: 7

24 P703-207338

  • P703-207338 - HOSE ASSY-FLG 0X90
  • Поз.: 7

25 P703-207334

  • P703-207334 - HOSE ASSY-FLG 0X90
  • Поз.: 7

26 P703-207336

  • P703-207336 - HOSE ASSY-FLG OX90
  • Поз.: 7

27 X710-100107

  • X710-100107 - CAP-HYD
  • ORFS
  • Поз.: 8

28 31EN-92240

  • 31EN-92240 - VALVE-STOP
  • Поз.: 9

29 31N8-97010

  • 31N8-97010 - VALVE-STOP
  • Поз.: 9

30 X530-110006

  • X530-110006 - ELBOW-45
  • Поз.: 10

31 31EG-91360

  • 31EG-91360 - CLAMP-STOP VALVE
  • Поз.: 11

32 31EG-91361

  • 31EG-91361 - CLAMP-STOP VALVE
  • Поз.: 11

33 31EG-91400

  • 31EG-91400 - CLAMP-PIPE
  • Поз.: 12

34 31EG-91401

  • 31EG-91401 - CLAMP-PIPE
  • Поз.: 12

35 31EG-91400

  • 31EG-91400 - CLAMP-PIPE
  • Поз.: 12

36 31EG-91401

  • 31EG-91401 - CLAMP-PIPE
  • Поз.: 12

37 31EH-92090

  • 31EH-92090 - CLAMP-T
  • Поз.: 13

38 31EH-92091

  • 31EH-92091 - CLAMP-T
  • Поз.: 13

39 P220-110205

  • P220-110205 - PLUG-SOCKET
  • Поз.: 14

40 31EK-11130

  • 31EK-11130 - COUPLING-SCREW
  • Поз.: 15

41 S631-011004

  • S631-011004 - O-RING
  • Поз.: 16

42 S631-024004

  • S631-024004 - O-RING
  • Поз.: 17

43 S631-038004

  • S631-038004 - O-RING
  • Поз.: 18

44 S631-038004

  • S631-038004 - O-RING
  • Поз.: 18

45 S621-025001

  • S621-025001 - O-RING
  • Поз.: 19

46 Y171-027004

  • Y171-027004 - O-RING
  • Поз.: 20

47 S017-120256

  • S017-120256 - BOLT-HEX
  • Поз.: 21

48 S017-160256

  • S017-160256 - BOLT-HEX
  • Поз.: 21

49 S017-160302

  • S017-160302 - BOLT-HEX
  • Поз.: 21

50 S017-120706

  • S017-120706 - BOLT-HEX
  • Поз.: 22

51 S017-160756

  • S017-160756 - BOLT-HEX
  • Поз.: 22

52 S017-160802

  • S017-160802 - BOLT-HEX
  • Поз.: 22

53 S017-160802

  • S017-160802 - BOLT-HEX
  • Поз.: 22

54 S017-120706

  • S017-120706 - BOLT-HEX
  • Поз.: 22

55 S017-160756

  • S017-160756 - BOLT-HEX
  • Поз.: 22

56 S017-160802

  • S017-160802 - BOLT-HEX
  • Поз.: 22

57 S017-120806

  • S017-120806 - BOLT-HEX
  • Поз.: 23

58 S017-160806

  • S017-160806 - BOLT-HEX
  • Поз.: 23

59 S017-160852

  • S017-160852 - BOLT-HEX
  • Поз.: 23

60 S019-100406

  • S019-100406 - BOLT-HEX
  • Поз.: 24

61 S019-100506

  • S019-100506 - BOLT-HEX
  • Поз.: 25

62 S411-120006

  • S411-120006 - WASHER-SPRING
  • Поз.: 26

63 S411-160006

  • S411-160006 - WASHER-SPRING
  • Поз.: 26

64 S411-160002

  • S411-160002 - WASHER-SPRING
  • Поз.: 26

65 S441-160002

  • S441-160002 - WASHER-HARDENED
  • Поз.: 26

66 S411-120006

  • S411-120006 - WASHER-SPRING
  • Поз.: 26

67 S411-120006

  • S411-120006 - WASHER-SPRING
  • Поз.: 26

68 S411-160002

  • S411-160002 - WASHER-SPRING
  • Поз.: 26

69 S441-160002

  • S441-160002 - WASHER-HARDENED
  • Поз.: 26

70 P173-200106

  • P173-200106 - FLANGE-HYD
  • SPLIT
  • Поз.: 27

71 31N6-50320

  • 31N6-50320 - CLAMP ASSY
  • Поз.: 40

72 31N6-50320

  • 31N6-50320 - CLAMP ASSY
  • Поз.: 40

73 31E9-53220

  • 31E9-53220 - SPACER-PIPE
  • Поз.: 41

74 31N5-50230

  • 31N5-50230 - SPACER-PIPE
  • Поз.: 41

75 S017-160752

  • S017-160752 - BOLT-HEX
  • Поз.: 42

76 S017-160806

  • S017-160806 - BOLT-HEX
  • Поз.: 42

77 S411-160002

  • S411-160002 - WASHER-SPRING
  • Поз.: 43

78 S411-160006

  • S411-160006 - WASHER-SPRING
  • Поз.: 43

79 34L1-01850

  • 34L1-01850 - CLAMP
  • Поз.: 44

80 34L1-01860

  • 34L1-01860 - GROMMET
  • Поз.: 45

81 S037-123522

  • S037-123522 - BOLT-W/WASHER
  • Поз.: 46

82 31EN-91701

  • 31EN-91701 - ACCUMULATOR KIT
  • Поз.: 50

83 32E6-92040

  • 32E6-92040 - ACCUMULATOR
  • Поз.: 30

84 32E6-92050

  • 32E6-92050 - ACCUMULATOR
  • Поз.: 31

85 32E3-2020

  • 32E3-2020 - FITTING
  • Поз.: 32

86 P392-220000

  • P392-220000 - WASHER-COPPER
  • Поз.: 33

87 32E6-92060

  • 32E6-92060 - U-BOLT
  • Поз.: 34

88 S071-034330

  • S071-034330 - U-BOLT
  • Поз.: 35

89 32E6-92080

  • 32E6-92080 - BRACKET-ACCUM
  • Поз.: 36

90 32E3-2021

  • 32E3-2021 - FITTING
  • Поз.: 37

91 P392-180000

  • P392-180000 - WASHER-COPPER
  • Поз.: 38
