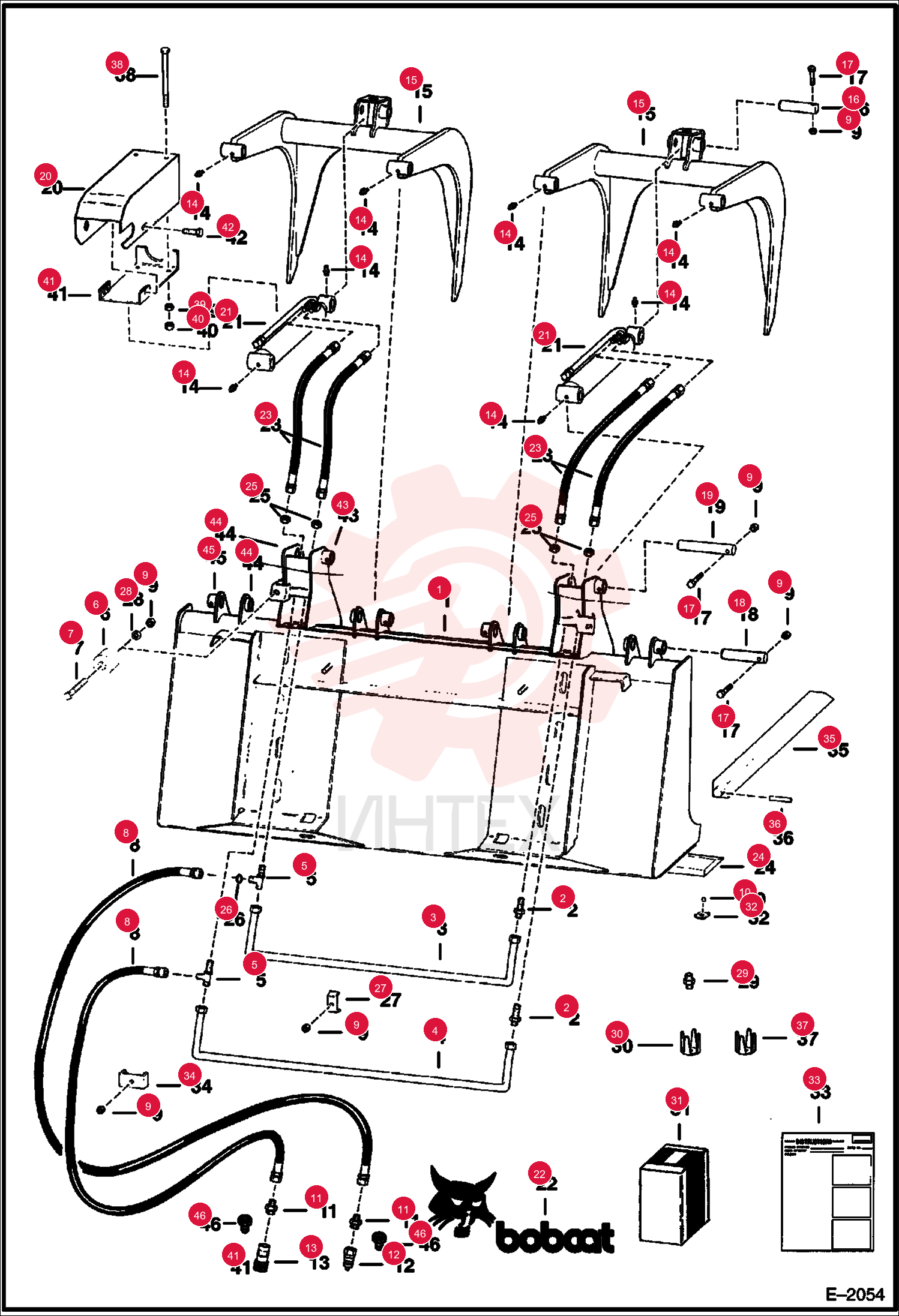

FITTING 45K5 (2)
1 45K5
- 45K5 - FITTING
2 6538320
- 6538320 - TUBE
3 6538319
- 6538319 - TUBE
4 97K6
- 97K6 - O-RING
5 91K5
- 91K5 - TEE
- Was 91KN00005B
6 6585808
- 6585808 - STOP
7 17C628
- 17C628 - BOLT
8 6538321
- 6538321 - HOSE
9 85D6
- 85D6 - NUT PRETRQ HEX LOCK
10 6593680
- 6593680 - RETAINER
11 731795
- 731795 - CONNECTR
- Was 731695
12 7246777
- 7246777 - COUPLER
- FF MALE
- - Was 6674688
13 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
14 6598757
- 6598757 - COUPLER
- POPPET MALE
- straight
15 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
16 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
17 6598758
- 6598758 - COUPLER FF FEMALE
- straight
18 10H25
- 10H25 - FTG GREASE STRAIGHT
19 6567775
- 6567775 - TOOTH
20 6547593
- 6547593 - PIN
- PIVOT
21 17C640
- 17C640 - BOLT
22 6547595
- 6547595 - PIN
23 6704288
- 6704288 - PIN
- PIVOT
- Use without weld-on bushing - 7"(178mm) long - Was 6553061
24 6531433
- 6531433 - PIN
- Use W/weld-on bushing-7.43" lg
25 6588040
- 6588040 - SHIELD
- With weld-on bushing
26 6593329
- 6593329 - CYLINDER
- GRAPPLE
- WAS 6593327
27 6567987
- 6567987 - DECAL
- LOGO BOBCAT AND HEAD
- LH
28 6567988
- 6567988 - DECAL
- LOGO BOBCAT AND HEAD
- RH
29 6630942
- 6630942 - HOSE
30 6588369
- 6588369 - EDGE
- CUTTING
- Was 6567758
31 86F5
- 86F5 - NUT
32 6569312
- 6569312 - ORIFICE
- Dump Restrict. For Grapple Cyl.
33 6502426
- 6502426 - CLAMP
34 25E17
- 25E17 - WASHER FLAT PLAIN
35 6579152
- 6579152 - RESTRICTOR
- Dump Restriction For Tilt Cyl. on Loader S/N 12001 & Above
36 6570922
- 6570922 - INSTRUCTIONS
- Dump Restriction - Was 6570352
37 6532606
- 6532606 - KIT
- DUMP
- Dump Restrictor -Ref. 10
- 27-29
- 30
- 31
- 32 & 37
38 6568476
- 6568476 - #12 CLAMP
39 6569861
- 6569861 - TOOTH
- GRAPPLE
40 14J3740
- 14J3740 - PIN
41 6587315
- 6587315 - RESTRICTR
42 17C6104
- 17C6104 - BOLT
43 7D6
- 7D6 - NUT
44 61D6
- 61D6 - NUT HEX FINISHED GR5
45 6588042
- 6588042 - COVER
46 35C612
- 35C612 - SCREW FLGD HEX CAP
47 6588044
- 6588044 - BUSHING
48 6555989
- 6555989 - BUSHING
49 6555987
- 6555987 - BUSHING
50 6668096
- 6668096 - FITTING
- ADAPTER
- Use with flush face couplers
