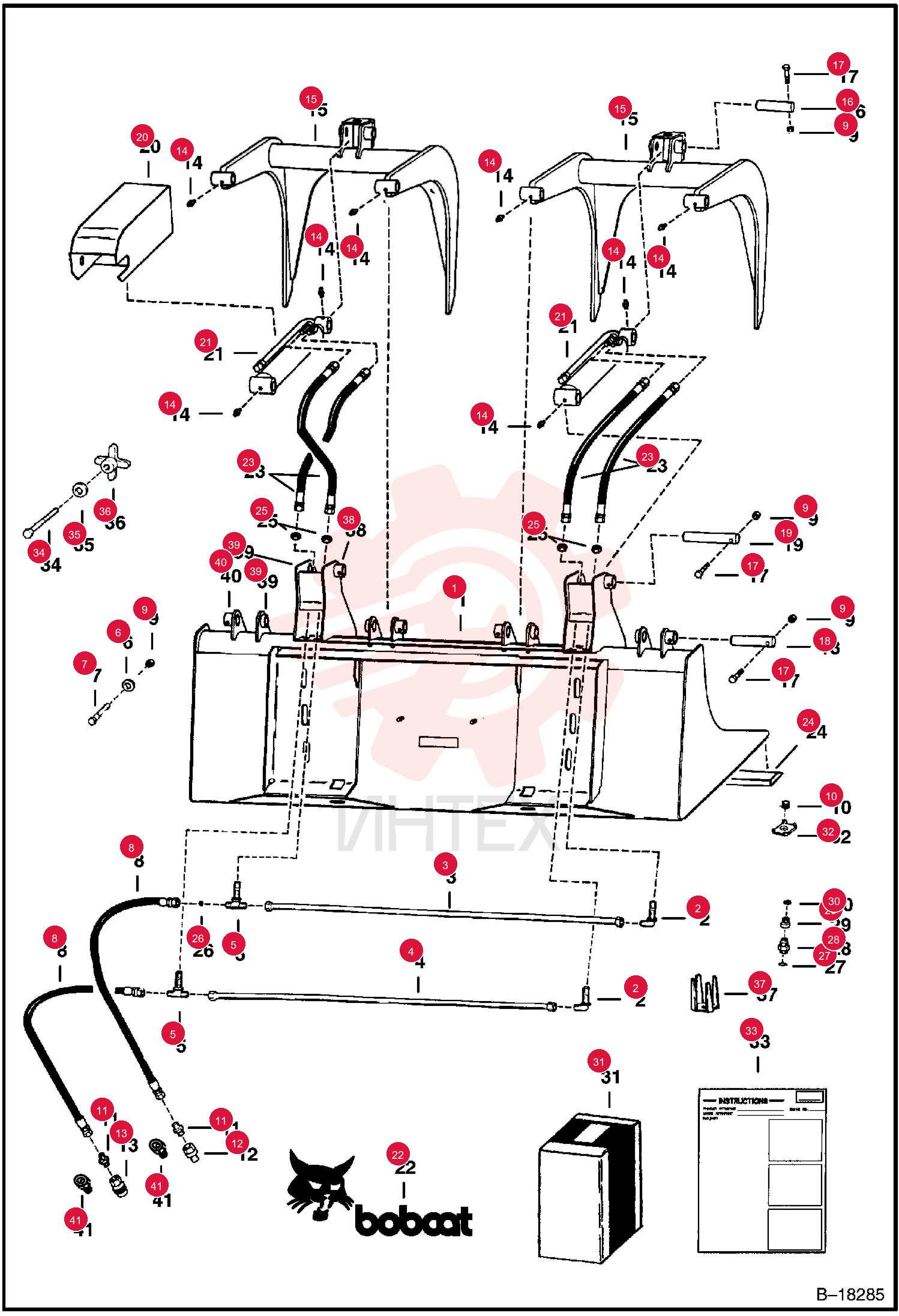

ELBOW 88F5 (3)
1 88F5
- 88F5 - ELBOW
2 6531339
- 6531339 - TUBE
3 6531340
- 6531340 - TUBE
4 90F5
- 90F5 - TEE
5 6585808
- 6585808 - STOP
6 17C628
- 17C628 - BOLT
7 6635256
- 6635256 - ASSY
- HOSE
8 85D6
- 85D6 - NUT PRETRQ HEX LOCK
9 6593680
- 6593680 - RETAINER
10 731795
- 731795 - CONNECTR
- Was 731695
11 6598757
- 6598757 - COUPLER
- POPPET MALE
- straight
12 7246777
- 7246777 - COUPLER
- FF MALE
- - Was 6674688
13 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
14 6598758
- 6598758 - COUPLER FF FEMALE
- straight
15 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
16 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
17 10H25
- 10H25 - FTG GREASE STRAIGHT
18 6567775
- 6567775 - TOOTH
19 6547593
- 6547593 - PIN
- PIVOT
20 17C640
- 17C640 - BOLT
21 6547595
- 6547595 - PIN
22 6704288
- 6704288 - PIN
- PIVOT
- Was 6553061
23 6567770
- 6567770 - SHIELD
24 6593329
- 6593329 - CYLINDER
- GRAPPLE
- WAS 6593327
25 6567987
- 6567987 - DECAL
- LOGO BOBCAT AND HEAD
26 6630942
- 6630942 - HOSE
27 6588369
- 6588369 - EDGE
- CUTTING
- Was 6567758
28 86F5
- 86F5 - NUT
29 6569312
- 6569312 - ORIFICE
- Dump Restr. For Grapple Cyl.
30 79K10
- 79K10 - O RING 10
- Dump Restriction For Tilt Cyl. - Was 79K000014B
31 12K7
- 12K7 - UNION
- Dump Restriction For Tilt Cyl. - Was 6567731
32 6579152
- 6579152 - RESTRICTOR
- .095" - Dump Restriction For Tilt Cyl. on Loader S/N 12001 & Abv.
33 6570922
- 6570922 - INSTRUCTIONS
- Dump Restriction - Was 6570352
34 6532606
- 6532606 - KIT
- DUMP
- Dump Restrictor- Ref. 10
- 27-29
- 31
- 32 & 37
35 17C648
- 17C648 - SCREW HEX CAP
36 17C680
- 17C680 - BOLT
37 25E17
- 25E17 - WASHER FLAT PLAIN
38 6647668
- 6647668 - KNOB
39 6587315
- 6587315 - RESTRICTR
- .110"(2.974mm)
40 6588044
- 6588044 - BUSHING
41 6555989
- 6555989 - BUSHING
42 6555987
- 6555987 - BUSHING
43 6668096
- 6668096 - FITTING
- ADAPTER
- Use with flush face couplers
