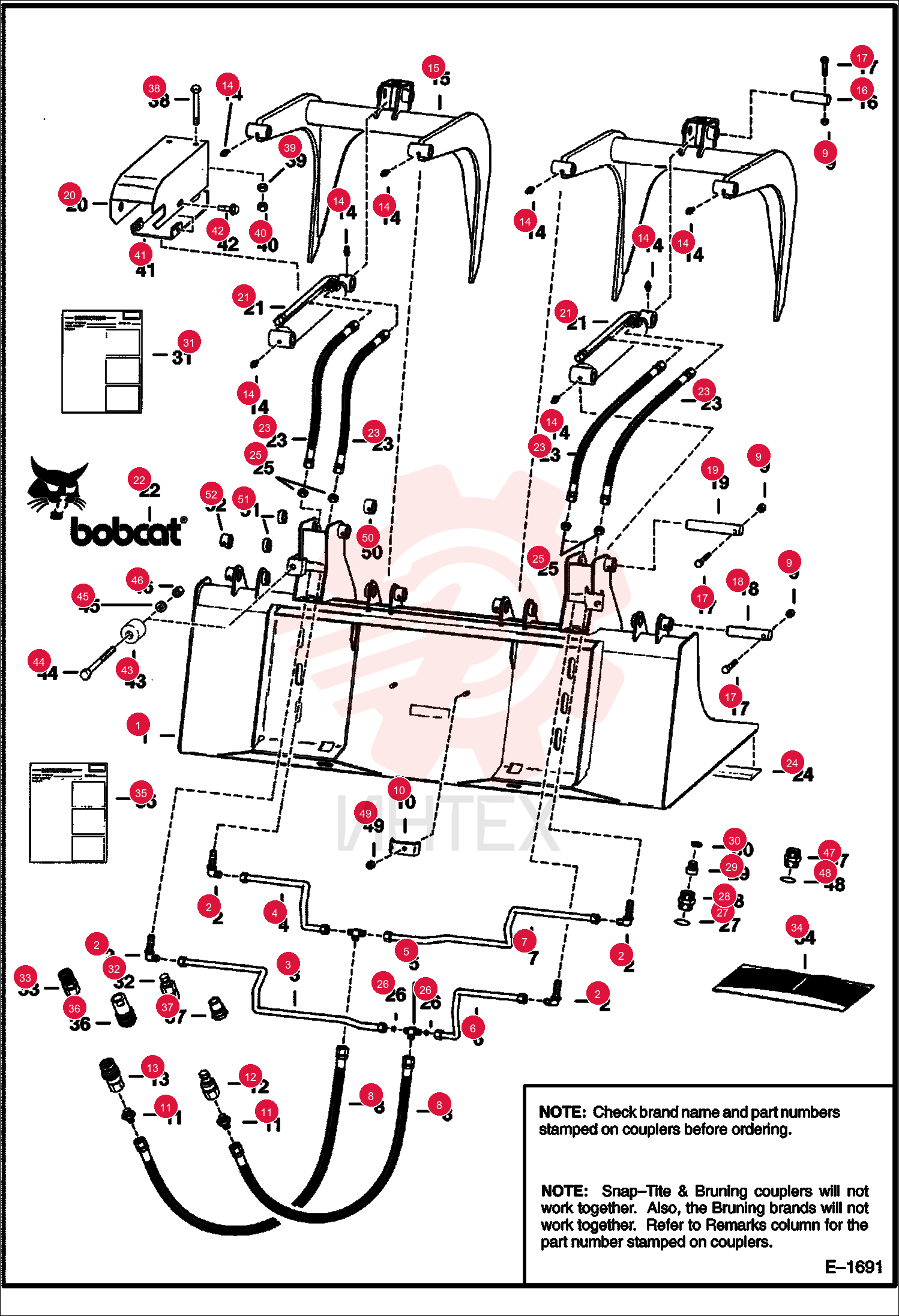

ELBOW 88F5 (2)
1 88F5
- 88F5 - ELBOW
2 6567784
- 6567784 - TUBE
3 6567785
- 6567785 - TUBE
4 666491
- 666491 - TEE
5 6567782
- 6567782 - TUBE
6 6567783
- 6567783 - TUBE
7 1318132
- 1318132 - HOSE
8 85D6
- 85D6 - NUT PRETRQ HEX LOCK
9 6568476
- 6568476 - #12 CLAMP
10 15KB1012
- 15KB1012 - FTG HYD S CONNECTOR
- Was 755055B
11 10H25
- 10H25 - FTG GREASE STRAIGHT
12 6567775
- 6567775 - TOOTH
13 6547593
- 6547593 - PIN
- PIVOT
14 17C640
- 17C640 - BOLT
15 6547595
- 6547595 - PIN
16 6531433
- 6531433 - PIN
- Use W/Weld-on Bushing 7.43" Long
17 6553061
- 6553061 - PIN
- Use W/O Weld-on Bushing 6.54" Long
18 6588040
- 6588040 - SHIELD
- W/Weld-on Bushing
19 6567987
- 6567987 - DECAL
- LOGO BOBCAT AND HEAD
- LH
20 6567988
- 6567988 - DECAL
- LOGO BOBCAT AND HEAD
- RH
21 6630942
- 6630942 - HOSE
22 6588369
- 6588369 - EDGE
- CUTTING
- Was 6567758
23 86F5
- 86F5 - NUT
24 6569312
- 6569312 - ORIFICE
- Dump Restriction For Grapple cyl.
25 79K14
- 79K14 - O RING 10
- Dump Restriction For Tilt cyl.
26 6567731
- 6567731 - ADAPTER
- Dump Restriction For Tilt cyl.
27 6568396
- 6568396 - POPPET
- Dump Restriction For Tilt cyl.
28 742280
- 742280 - RING
- Dump Restriction For Tilt cyl.
29 6570352
- 6570352 - INSTRUCTIONS
- Dump Restriction
30 6641358
- 6641358 - COUPLER
- MALE
- Male - Bruning 8609-037 - Use Ref. 33 - See Note
31 6641359
- 6641359 - COUPLER
- FEMALE
- Female - Bruning 8609-036 - Use Ref. 33 - See Note
32 6648561
- 6648561 - SEAL KIT
- For Both Ref. 32 & 33 Bruning 8609-036 & 8609-037 Couplers
33 6570746
- 6570746 - INSTRUCTIONS
- - mounting
34 6648968
- 6648968 - COUPLER
- FEMALE
- Female - Bruning SM-803 - Use Ref. 37 - See Note
35 6648970
- 6648970 - COUPLER
- MALE
- Male - Bruning SM-804 - Use W/Ref. 36 - See Note
36 17C6104
- 17C6104 - BOLT
37 7D6
- 7D6 - NUT
38 61D6
- 61D6 - NUT HEX FINISHED GR5
39 6588042
- 6588042 - COVER
40 35C612
- 35C612 - SCREW FLGD HEX CAP
41 6585808
- 6585808 - STOP
42 17C628
- 17C628 - BOLT
43 25E17
- 25E17 - WASHER FLAT PLAIN
44 85D6
- 85D6 - NUT PRETRQ HEX LOCK
- Was 87D000006B
45 79K12
- 79K12 - O RING 10
- for 953 dump restricter
46 59D6
- 59D6 - NUT LOCK HEX PT
47 6588044
- 6588044 - BUSHING
48 6555989
- 6555989 - BUSHING
49 6555987
- 6555987 - BUSHING
