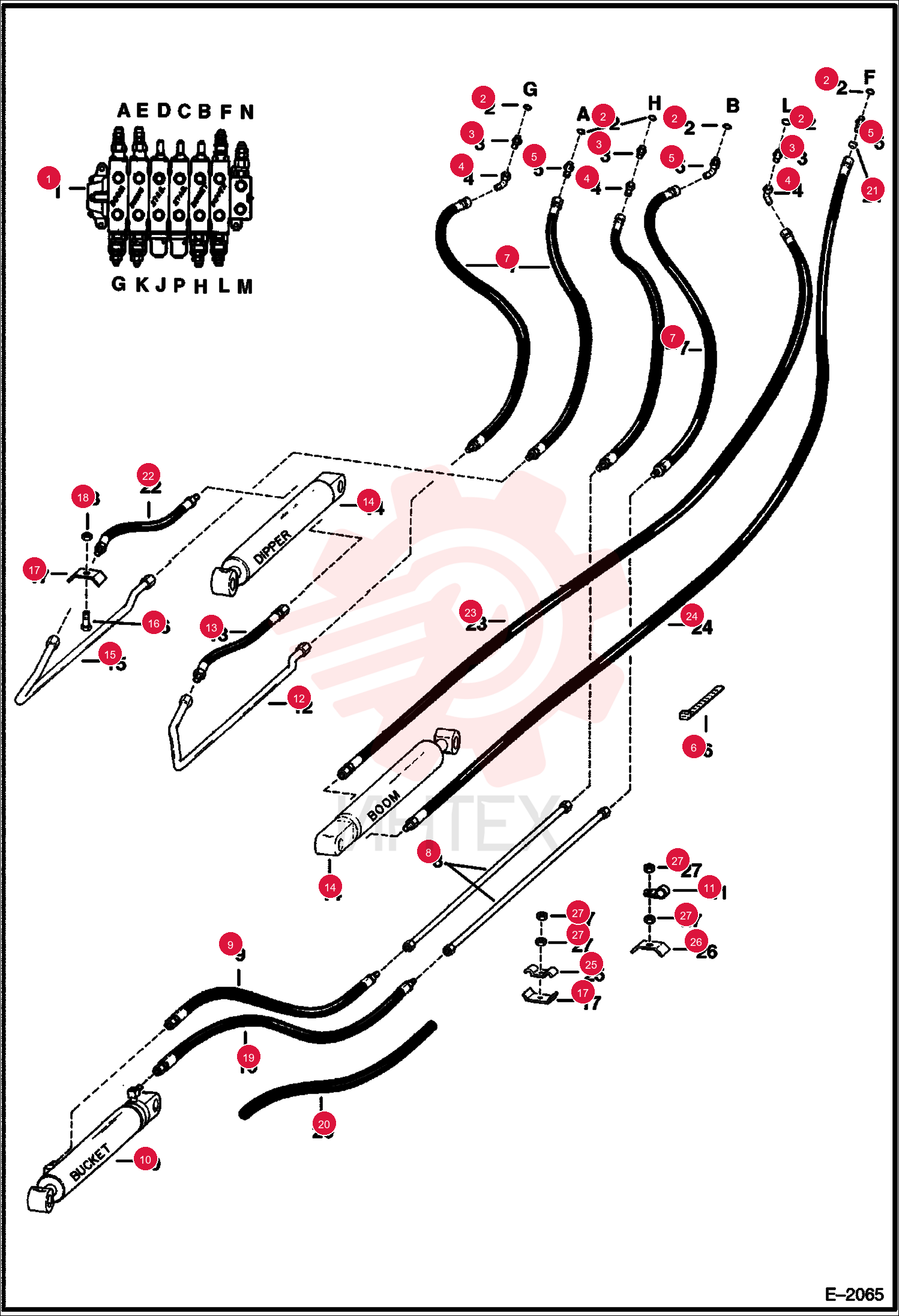

O RING 10 79K8 (1)

O RING 10 79K8 (1)

O RING 10 79K8 (1)

1 79K8

  • 79K8 - O RING 10

2 15K6

  • 15K6 - ADAPTER
  • W/Ref. 2

3 12K6

  • 12K6 - UNION

4 18K6

  • 18K6 - FITTING
  • W/Ref. 2

5 6610510

  • 6610510 - STRAP
  • TIE 10
  • Was 1715312B

6 6539239

  • 6539239 - HOSE

7 6532975

  • 6532975 - TUBE

8 6538438

  • 6538438 - HOSE

9 30H46

  • 30H46 - CLIP

10 6532974

  • 6532974 - TUBE

11 6534349

  • 6534349 - HOSE

12 6532973

  • 6532973 - TUBE

13 84G3728

  • 84G3728 - SCREW THD ROLLING TT

14 6502426

  • 6502426 - CLAMP

15 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

16 6538437

  • 6538437 - HOSE

17 6649389

  • 6649389 - HOSE
  • CVR BULK/FT
  • 1'' (25
  • 4 mm) bulk - sold per foot

18 6592852

  • 6592852 - ORIFICE
  • .191 - .183 (4
  • 85 - 4
  • 65mm)

19 6713390

  • 6713390 - HOSE
  • Was 6534348

20 6532645

  • 6532645 - HOSE

21 6539240

  • 6539240 - HOSE

22 6591804

  • 6591804 - CLAMP

23 6537761

  • 6537761 - CLAMP

24 81D6

  • 81D6 - NUT
