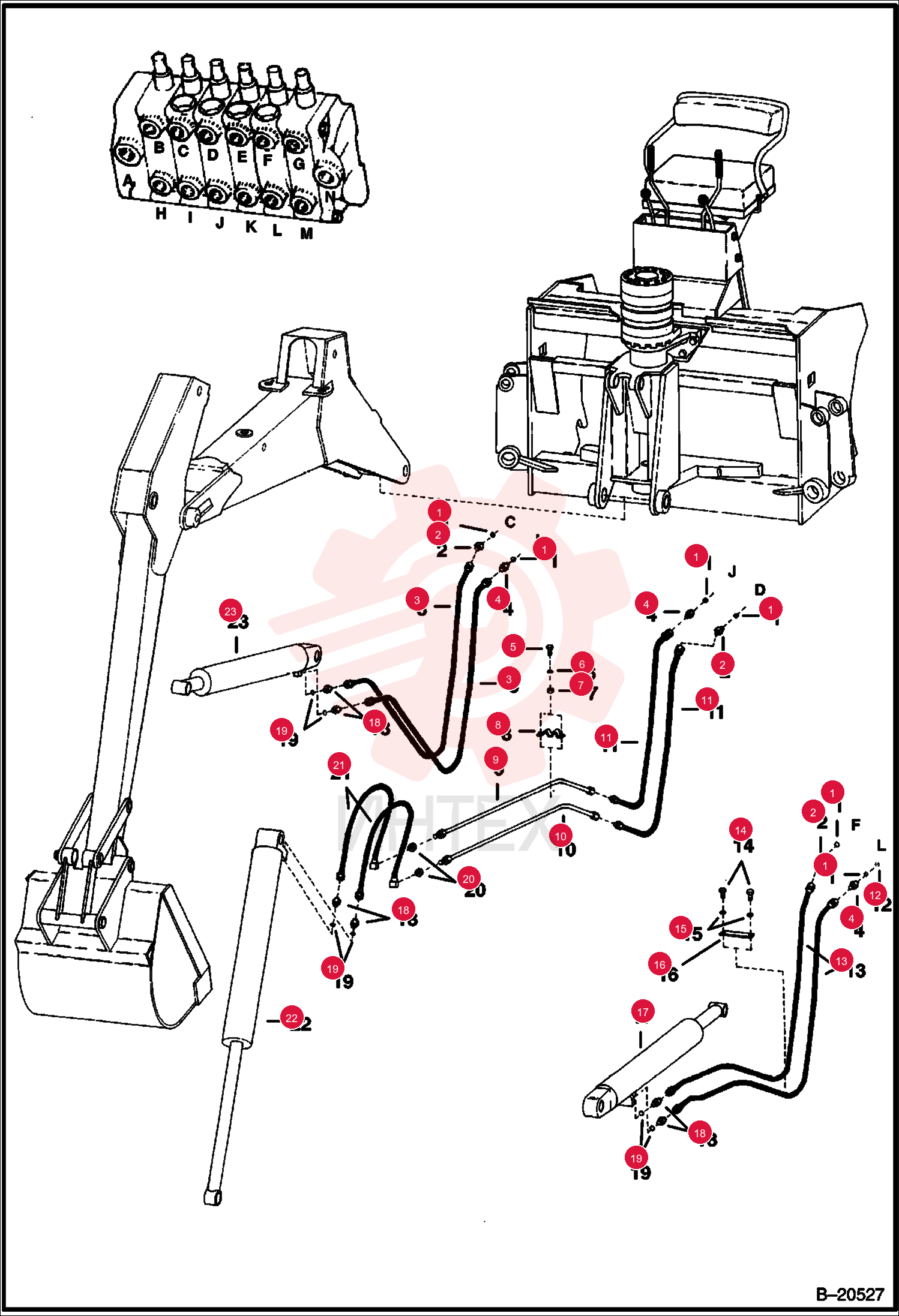

O RING 10 79K12 (1)

O RING 10 79K12 (1)

O RING 10 79K12 (1)

1 79K12

  • 79K12 - O RING 10
  • Was 91F000008B

2 2324539

  • 2324539 - ELBOW
  • W/Ref. 1

3 1318912

  • 1318912 - HOSE ASSY

4 15KB1012

  • 15KB1012 - FTG HYD S CONNECTOR
  • W/Ref. 1 - Was 755055B

5 17C424

  • 17C424 - BOLT

6 4E4

  • 4E4 - WASHER

7 61D4

  • 61D4 - NUT 5

8 6515813

  • 6515813 - BAR

9 6515832

  • 6515832 - TUBE
  • right - bucket cylinder

10 6515833

  • 6515833 - TUBE
  • left - bucket cylinder

11 1318914

  • 1318914 - HOSE

12 947695

  • 947695 - ORIFICE
  • boom return port

13 1318913

  • 1318913 - HOSE

14 17C516

  • 17C516 - BOLT

15 4E5

  • 4E5 - WASHER

16 6515885

  • 6515885 - PART
  • tube

17 15K7

  • 15K7 - FITTING
  • W/Ref. 19

18 79K10

  • 79K10 - O RING 10
  • Was 91F000007B

19 8D14

  • 8D14 - NUT

20 947589

  • 947589 - HOSE ASSY
