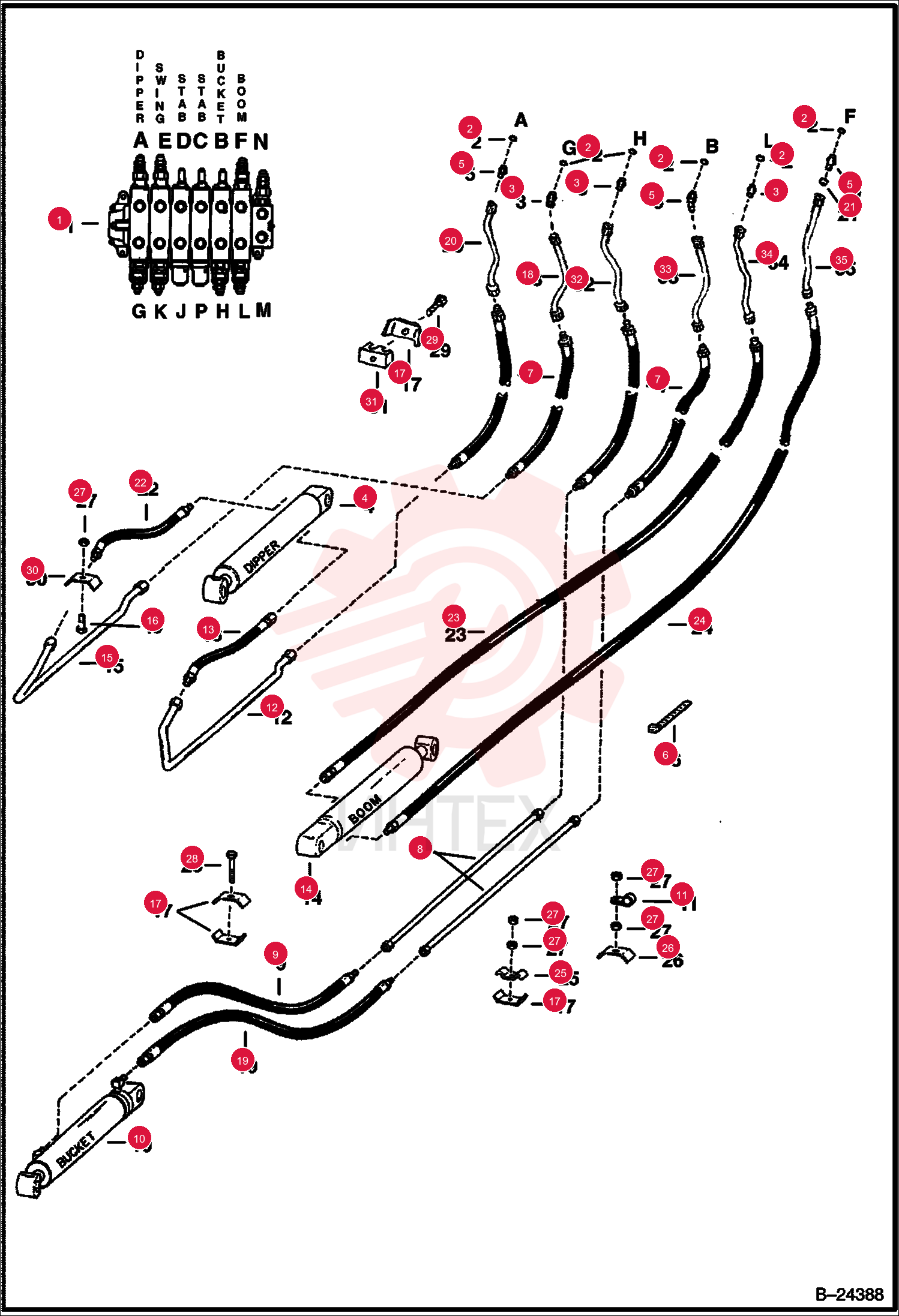

O RING 10 79K8 (4)

O RING 10 79K8 (4)

O RING 10 79K8 (4)

1 79K8

  • 79K8 - O RING 10
  • For flat boss face

2 99K8

  • 99K8 - O-RING
  • For tapered boss face

3 15KB0808

  • 15KB0808 - FTG HYD S CONNECTOR
  • W/Ref. 2 - flat boss face

4 18KB0808

  • 18KB0808 - FITTING
  • HYD ELBOW
  • Flat boss face

5 6610510

  • 6610510 - STRAP
  • TIE 10

6 6809055

  • 6809055 - HOSE

7 6533294

  • 6533294 - TUBE

8 6587978

  • 6587978 - HOSE

9 30H46

  • 30H46 - CLIP

10 6533292

  • 6533292 - TUBE

11 6539420

  • 6539420 - HOSE
  • 17.50"(445mm) long

12 6704335

  • 6704335 - HOSE
  • 16.70"(424mm) long

13 6533293

  • 6533293 - TUBE

14 84G3728

  • 84G3728 - SCREW THD ROLLING TT

15 6502426

  • 6502426 - CLAMP

16 6534685

  • 6534685 - HOSE

17 6806322

  • 6806322 - TUBELINE

18 6592852

  • 6592852 - ORIFICE
  • .191 - .183 (4
  • 85 - 4
  • 65mm)

19 6704336

  • 6704336 - HOSE

20 6809053

  • 6809053 - HOSE

21 6809054

  • 6809054 - HOSE

22 6591804

  • 6591804 - CLAMP

23 6537761

  • 6537761 - CLAMP

24 81D6

  • 81D6 - NUT

25 17C624

  • 17C624 - BOLT 5

26 84G3724

  • 84G3724 - SCREW THD ROLLING TT

27 6562266

  • 6562266 - CLAMP TUBE

28 6577696

  • 6577696 - CLAMP

29 6806327

  • 6806327 - TUBELINE

30 6806325

  • 6806325 - TUBELINE

31 6806326

  • 6806326 - TUBELINE
