Bobcat
/
E55W
/

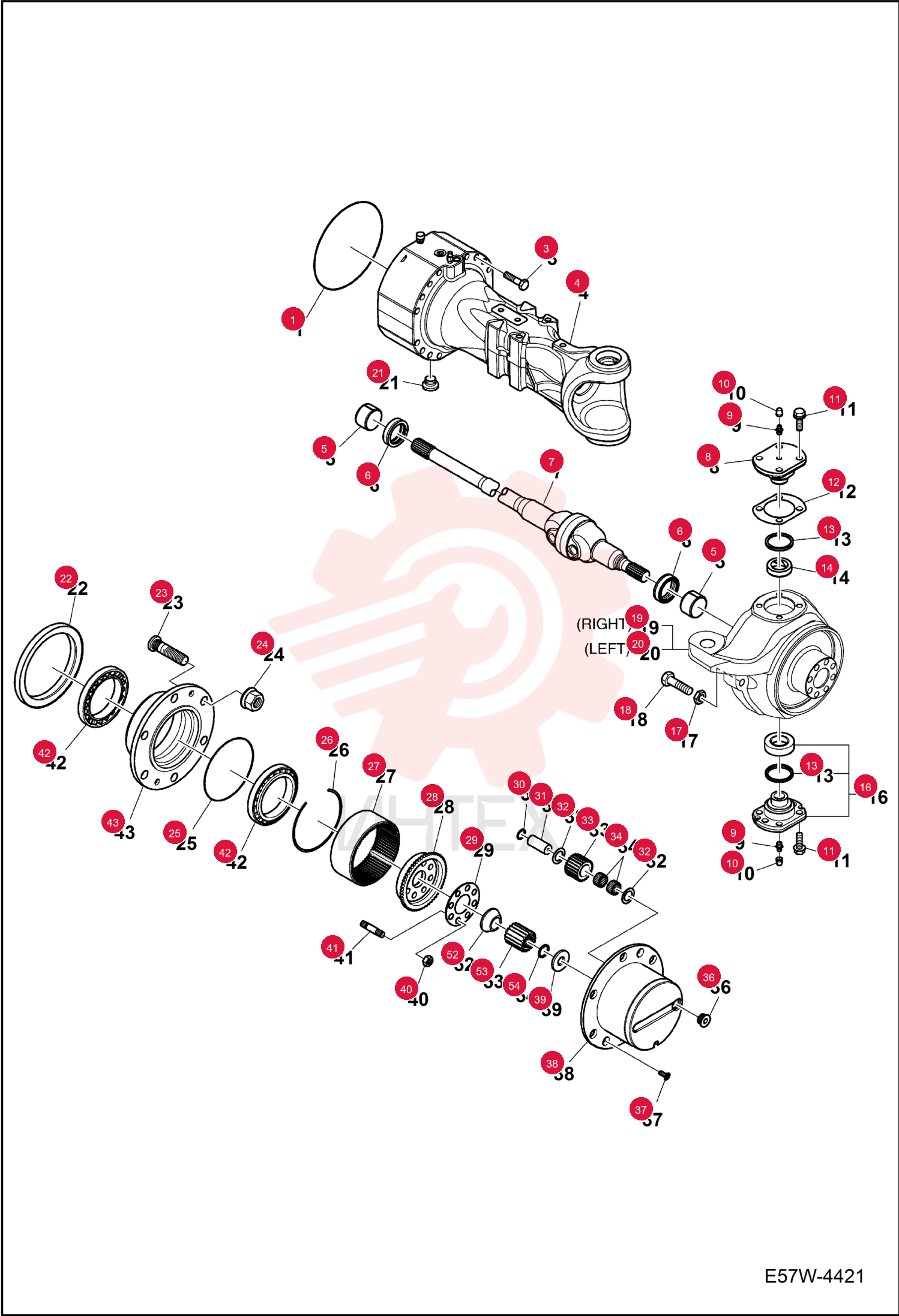

O-RING 7282990 (2)

O-RING 7282990 (2)

O-RING 7282990 (2)

1 7282990

  • 7282990 - O-RING

2 7283039

  • 7283039 - BOLT

3 7327863

  • 7327863 - HOUSING AXLE

4 7283041

  • 7283041 - BUSHING AXLE
  • Was 6912679

5 7269865

  • 7269865 - SEAL AXLE
  • Was 6912708

6 7327864

  • 7327864 - JOUNT DOUBLE UNIVERSAL

7 7327865

  • 7327865 - PIN PIVOT

8 6912700

  • 6912700 - LUBRICATOR
  • Was 7004279

9 7004282

  • 7004282 - PLUG

10 7283044

  • 7283044 - BOLT HEX
  • Was 6912771

11 7327868

  • 7327868 - SHIM RING

12 7327867

  • 7327867 - SHIM RING

13 7327866

  • 7327866 - SHIM RING

14 7283048

  • 7283048 - SEAL O-RING

15 7283049

  • 7283049 - BUSHING

16 7327869

  • 7327869 - PIN PIVOT

17 7283052

  • 7283052 - NUT

18 7283053

  • 7283053 - BOLT

19 7327870

  • 7327870 - CASE STRG

20 7327871

  • 7327871 - CASE STRG

21 6921018

  • 6921018 - MAGNET PLUG

22 7327872

  • 7327872 - SEAL DUST

23 7327873

  • 7327873 - STUD WHEEL

24 7327874

  • 7327874 - NUT HEX

25 7004248

  • 7004248 - RING

26 7327875

  • 7327875 - RING SNAP

27 7281921

  • 7281921 - GEAR
  • RING

28 7327876

  • 7327876 - SUPPORT BRACKET

29 7327877

  • 7327877 - PLATE LOCK

30 7281923

  • 7281923 - CIRCLIP

31 7327878

  • 7327878 - PIN STRAIGHT

32 7281925

  • 7281925 - WASHER

33 7327879

  • 7327879 - GEAR PLANETARY

34 7281927

  • 7281927 - BEARING
  • NEEDLE

35 6912627

  • 6912627 - PLUG
  • Was 7282987

36 7007306

  • 7007306 - BOLT CYLINDER

37 7327880

  • 7327880 - CARRIER DIFF

38 7327881

  • 7327881 - WASHER FLAT

39 7283062

  • 7283062 - NUT

40 7327882

  • 7327882 - BOLT STUD

41 7003991

  • 7003991 - BEARING

42 7283064

  • 7283064 - HUB
  • WHEEL

43 7327883

  • 7327883 - SPACER TAPERED

44 7281926

  • 7281926 - GEAR
  • PLANETARY

45 7281930

  • 7281930 - CLIP
